MAINTENANCE
THROTTLE CONTROL CABLE/
THROTTLE LINK CHECK/
ADJUSTMENT
CHECK

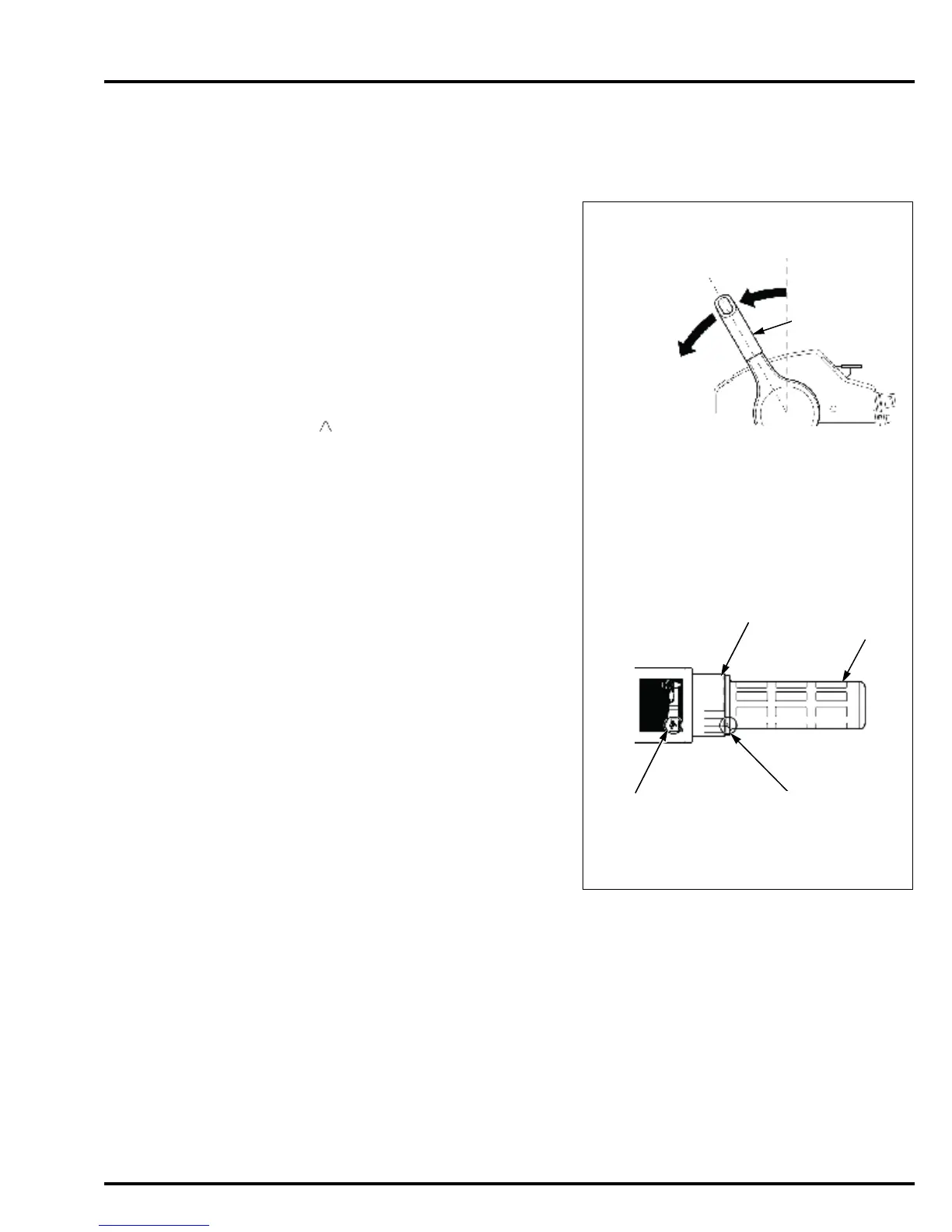

Remote control type:
Set the control lever [1] in the forward full open position.
• If it is hard to set the control lever in the "F"
(Forward) or "R" (Reverse) position, stop the engine
and shift the gear by turning the propeller or
propeller shaft.
• Do not try to shift the gear with force. Damage to the
gear shift system can occur.
Tiller handle type:
Set the throttle grip [2] in the forward full open position.
• Align the " " mark [3] on the throttle grip with the
throttle mark’s full open position [4] and secure the
throttle grip using the throttle friction fixing dial [5].
Remote control type:
Tiller handle type:
"N" (Neutral)
Throttle full
close position
Throttle full
open position
"F" (Forward)
[1]
[2]
[5]
[4]
[3]
