MAINTENANCE

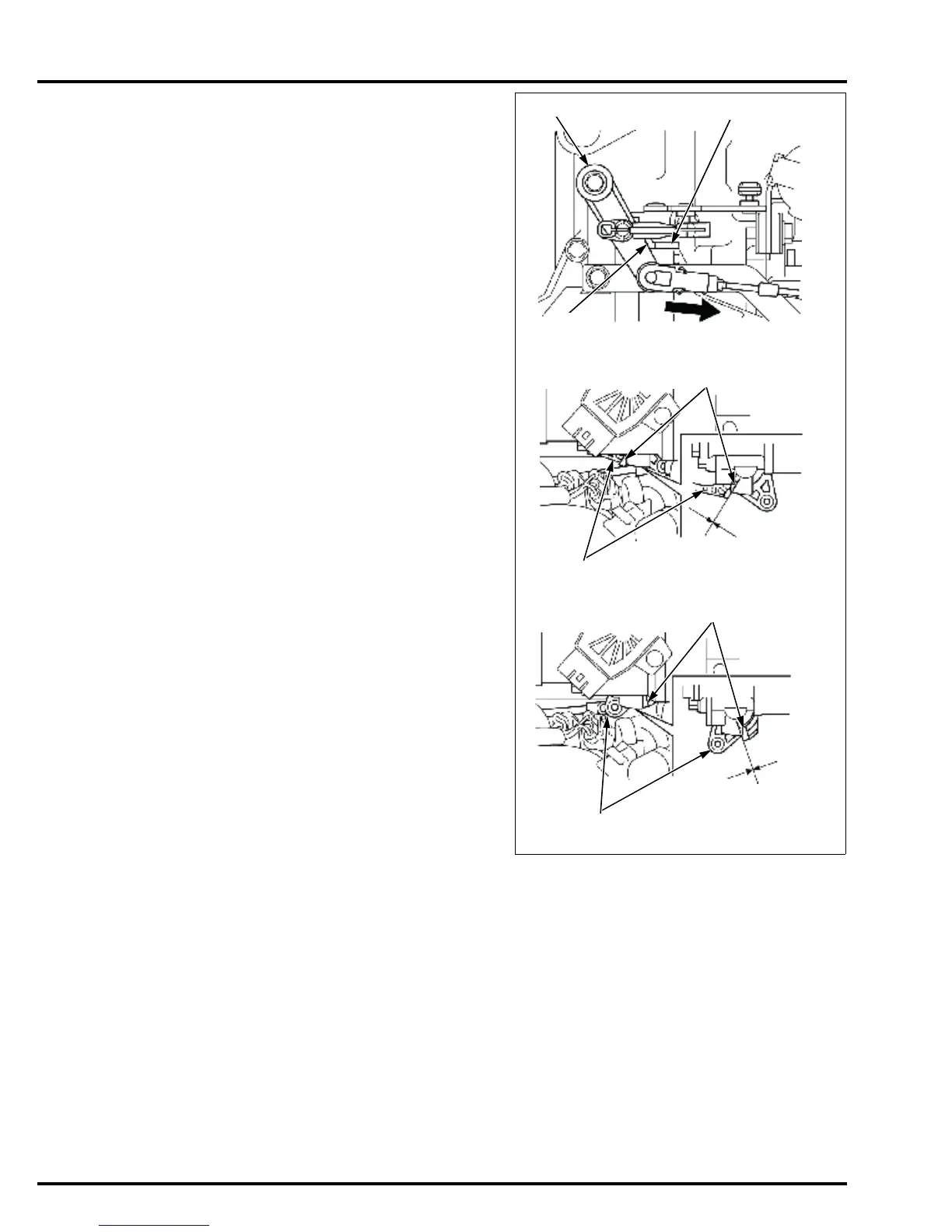

1. With the control lever or throttle grip in the full open
position, check that the throttle arm [1] is in contact
with the full open stopper [2] of the shift link bracket
[3].
2. Holding the control lever or throttle grip in the
position of step 1, check the clearance between the
throttle cam [4] and the stopper (full open side) [5] of
the throttle body. It must be 1.0 mm (0.04 in) or less.
3. Move the control lever or throttle grip to the full close
position. Check that the throttle cam [6] of the
throttle body is in contact with the stopper (full close
side) [7] securely.
Adjust if either step 1, 2 or 3 is not satisfied.
Remote control type:
If step 1 is not satisfied, go to the procedure
THROTTLE ARM NOT IN FULL OPEN POSITION
(page 3-11).
If either step 2 or 3 is not satisfied, go to the
procedure THROTTLE CAM NOT IN FULL OPEN
POSITION (page 3-11).
Tiller handle type:
If the throttle arm is not in the full open position or
the throttle cam is not in the full open position, go to
THROTTLE ARM NOT IN FULL OPEN POSITION
OR THE THROTTLE CAM NOT IN FULL OPEN
POSITION (page 3-12).
[1]
[2]
[3]
[4]
[5]
1.0 mm (0.04 in) maximum
Must be in contact
securely.
[6]
[7]
