TOHATSU BFT75A - Shift Link Bracket and Neutral Switch Removal;Installation

19-8
dummyheaddummyhead
CONTROLS
Check that each cable and tube is set in the holes in the
cable grommet securely.
Secure the cable grommet [1] with the grommet band
[2].
Adjust the following parts.
– Throttle control cable(page 3-9)
– Shift control cable
Install the following parts.
– Front separate cover (page 6-4)
– Engine cover

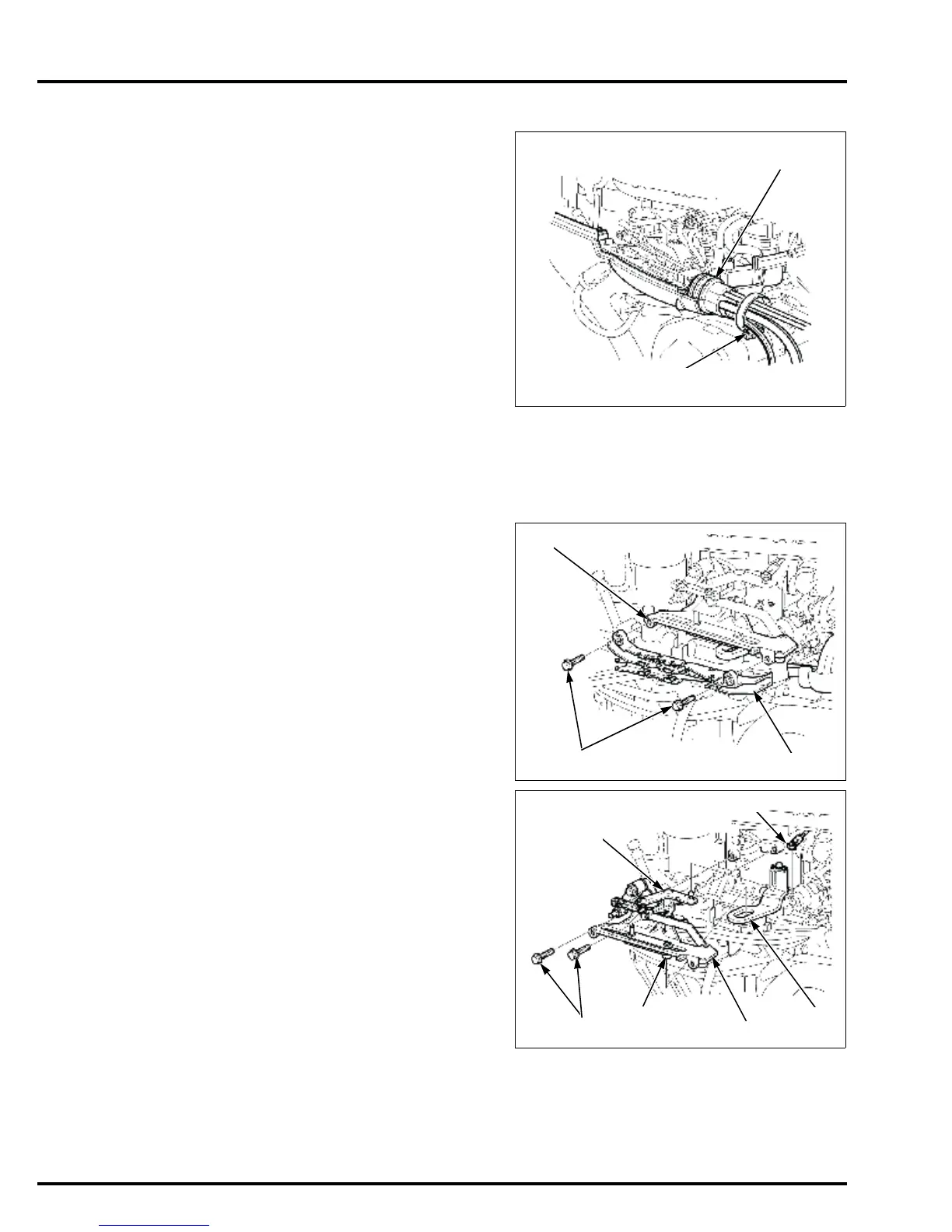

SHIFT LINK BRACKET/NEUTRAL
SWITCH REMOVAL/INSTALLATION
REMOVAL
Be sure that the remote control lever or shift lever is in
the "N" (Neutral) position.
Remove the following parts:
– Engine cover
– Front separate cover (page 6-4)
– R. engine under cover(page 6-5)
– Remote control cable/grommet (page 19-3)
– Stater cable/fuse cable (page 10-6)
Remove the two bolts [1] from the shift link bracket [2]
and remove the starter cable holder [3].
Remove the throttle rod linkage pivot [1] from the
throttle plate [2].
Remove the two bolts [3] from the shift link bracket [4].
Remove the link pin of the shift link bracket [5] from the
shift arm [6], and remove the shift link bracket.
