TOHATSU BFT75A - Fuel Tank;Fuel Tank Tube Disassembly;Assembly

5-96
dummyheaddummyhead

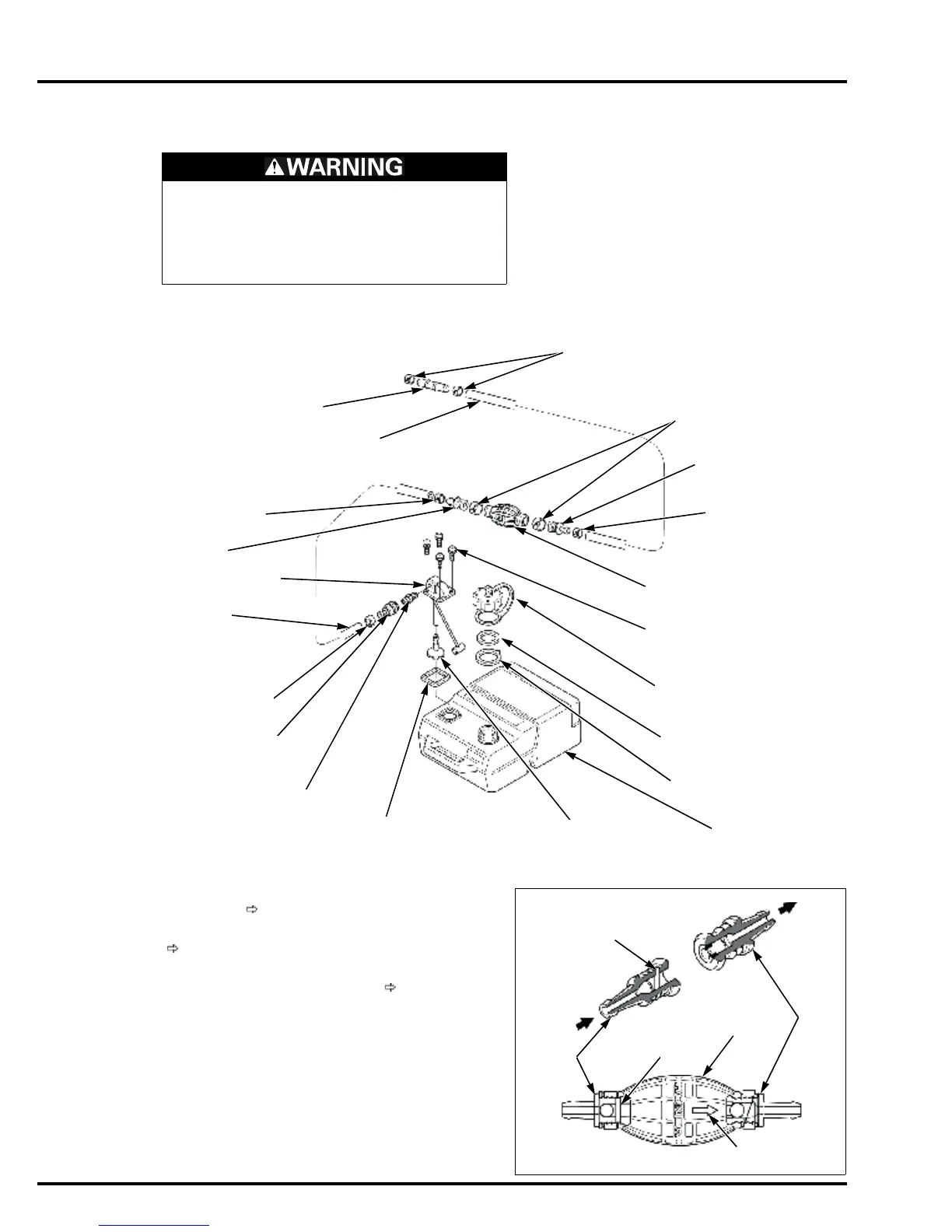

FUEL SYSTEM
FUEL TANK/FUEL TANK TUBE
DISASSEMBLY/ASSEMBLY
DISASSEMBLY
ASSEMBLY
Install the inlet valve [1] [has the pin [2]] at the side not
marked with " " mark [3] on the primer bulb [4].
Install the outlet valve [5] at the side marked with the
"" mark.
• Do not confuse the inlet valve and the outlet valve
• Install the priming bulb with the " " mark toward the
motor side
Assembly of the other parts is in the reverse order of
disassembly.
Gasoline is highly flammable and explosive.
You can be burned or seriously injured when
handling fuel.
• Keep heat, sparks, and flame away.
• Wipe up spills immediately.
• Handle fuel only outdoors.
FUEL TUBE JOINT
TUBE CLIP
BANDS (12.5 mm)
TUBE CLIP
BANDS (20 mm)
FUEL TUBE (LONG)
FUEL TUBE (SHORT)
OUTLET VALVE
INLET VALVE
PRIMER BULB
FUEL CONNECTOR
FUEL JOINT
FUEL TANK
FUEL STRAINER
FUEL TANK FILTER
FUEL TANK CAP
SCREW (5 mm) (4)
FILTER GASKET
TANK CAP PACKING
PRESSURE RELIEF
RETAINER
TUBE CLIP BAND
(12.5 mm)
TUBE CLIP BAND
(12.5 mm)
TUBE CLIP BAND
(12.5 mm)
[2]
[2]
Fuel tank side
Motor side
[5]
[4]
[3]
[1]
