LUBRICATION SYSTEM
OIL CASE REMOVAL/INSTALLATION
REMOVAL
Remove the extension case/lower rubber mount (page 16-9).

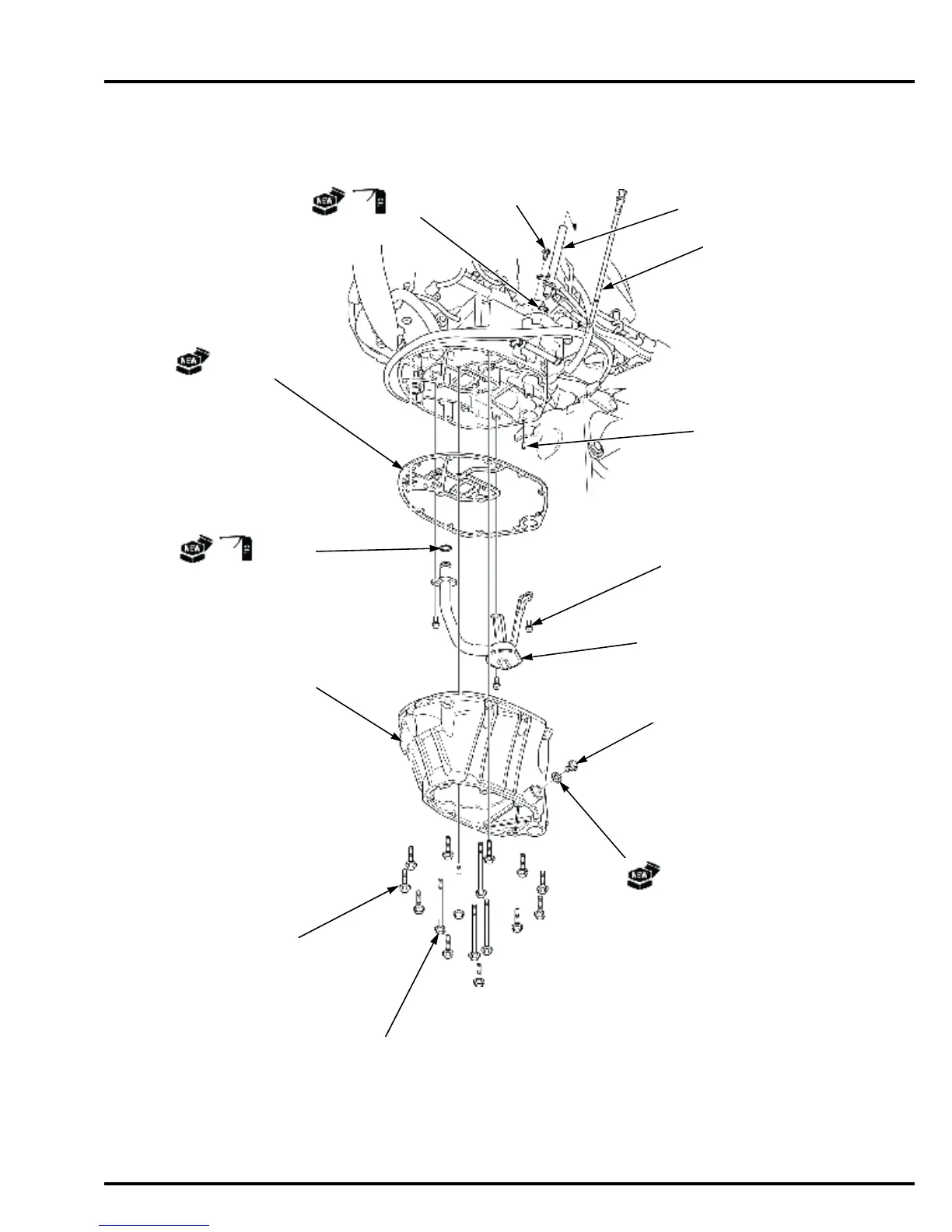

BOLT (8 x 100 mm) (5)
BOLT (8 x 35 mm) (11)
OIL CASE
OIL DRAIN PLUG BOLT
DRAIN PLUG WASHER
OIL STRAINER
BOLT (6 x 16 mm) (3)
O-RING
OIL CASE GASKET
O-RING
OIL LEVEL GAUGE
OIL LEVEL PIPE
DOWEL PIN (6 x 10 mm) (2)
BOLT (6 x 12 mm)
23 N·m (2.3 kgf·m, 17 lbf·ft)
21.5 N·m (2.2 kgf·m, 16 lbf·ft)
21.5 N·m (2.2 kgf·m, 16 lbf·ft)
