TOHATSU BFT75A - Power Tilt Relay Inspection

10-15
dummyheaddummyhead
OTHER ELECTRICAL

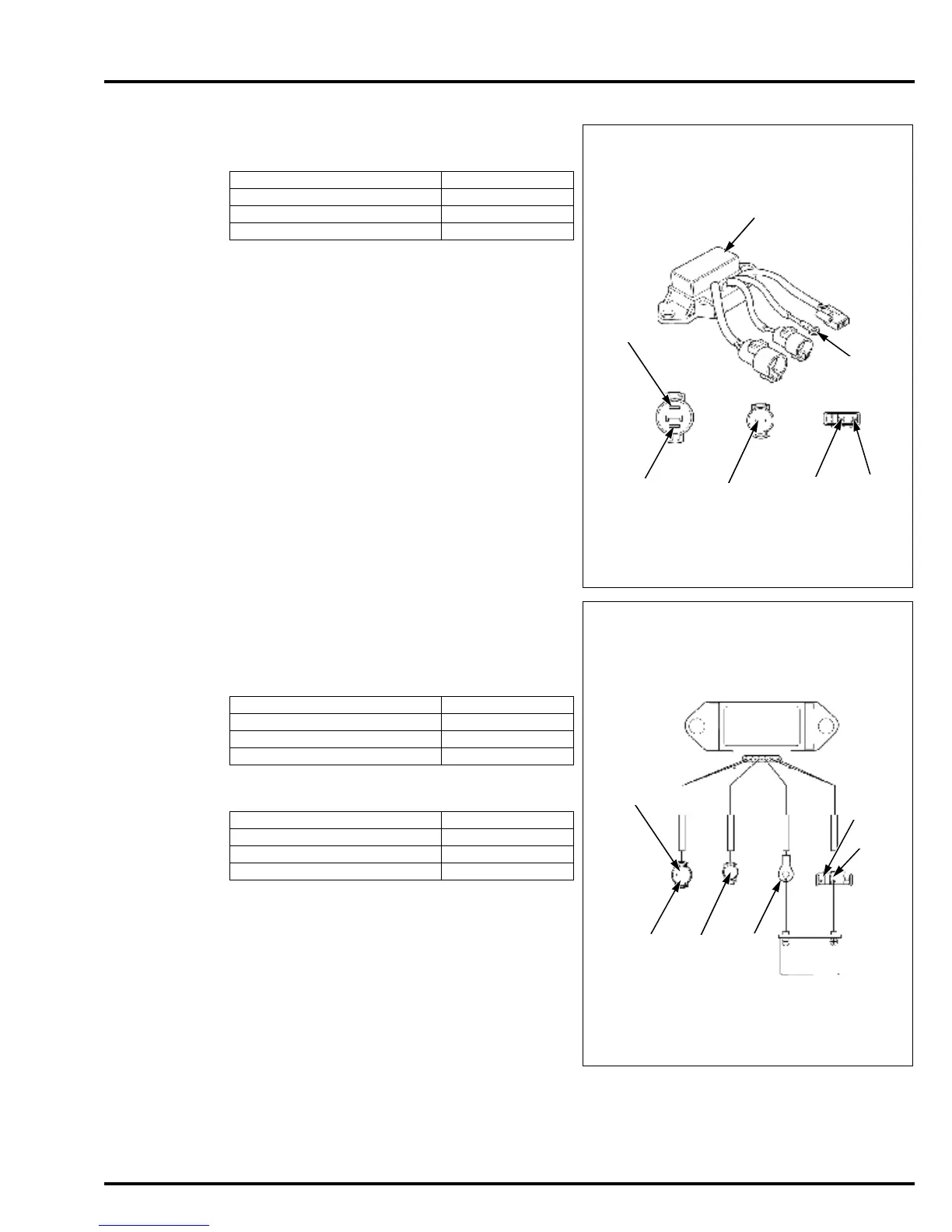

POWER TILT RELAY INSPECTION
• Remove the power tilt relay before inspection.
Check for continuity between the following terminals.
Connect a battery as shown. There must be continuity/
no continuity between the terminals shown.
• Use a known-good battery for the test.
Positive (+) battery terminal connected to Light
green terminal:
Positive (+) battery terminal connected to Light blue
terminal:
If above inspection is abnormal, replace the power tilt
relay.
Between Green and Black Continuity
Between Blue and Black Continuity
Between Green and White No continuity
Between Blue and White No continuity
Lg
Lb
W
Bu
G
POWER TILT RELAY
Bl
Between Green and Black No continuity
Between Blue and Black Continuity
Between Green and White Continuity
Between Blue and White No continuity
Between Green and Black Continuity
Between Blue and Black No continuity
Between Green and White No continuity
Between Blue and White Continuity
Lg
Lb
W
Bu
G
Bl
