TOHATSU BFT75A - Vertical Shaft Disassembly; Assembly

16-33
dummyheaddummyhead
GEAR CASE

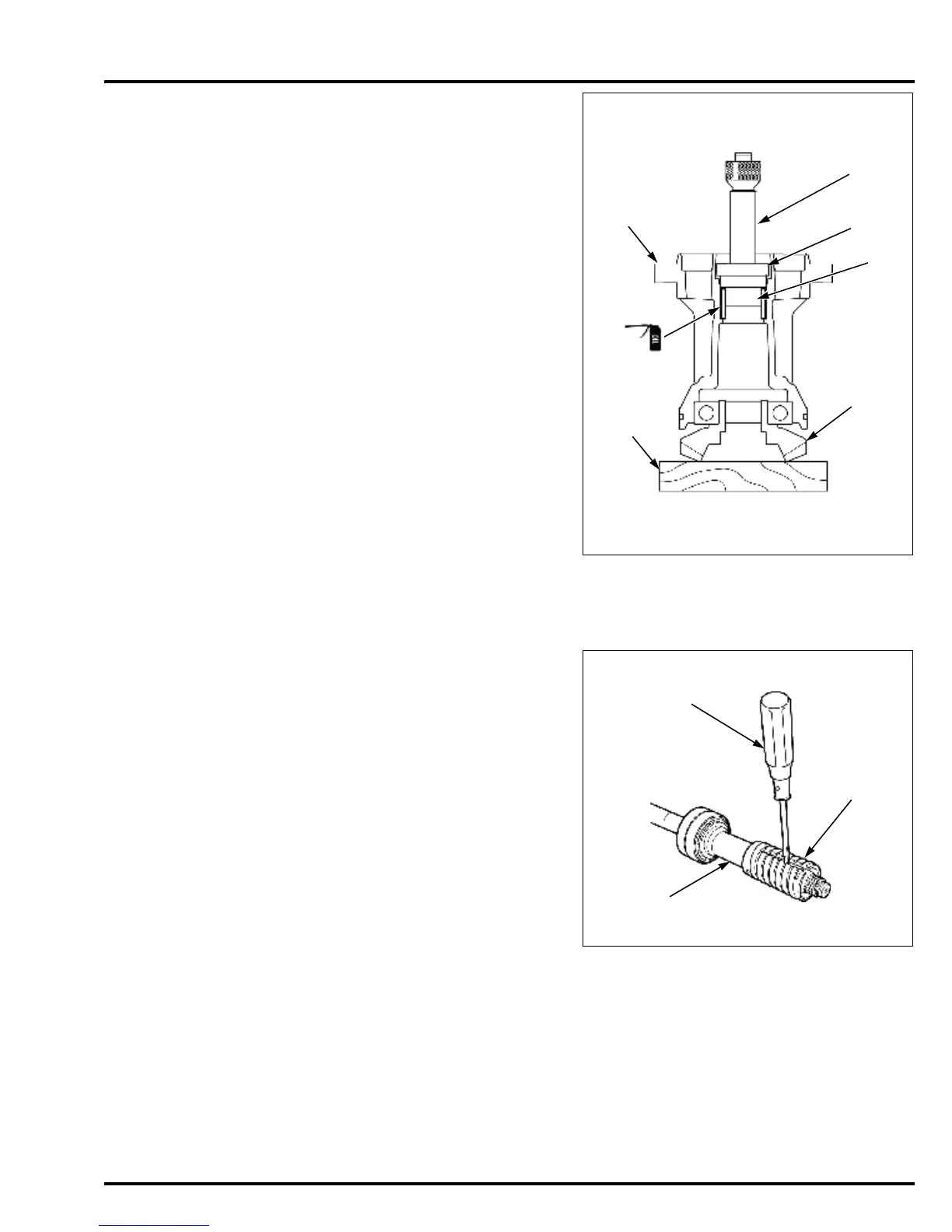

Set a wood block [1] under the reverse bevel gear [2].
Apply gear oil to the circumference of a new needle
bearing [3].
Drive the needle bearing into the propeller shaft holder
[4] using the special tools and a hydraulic press as
shown.
• Install the needle bearing with the stamped side
toward the special tools.
VERTICAL SHAFT DISASSEMBLY/
ASSEMBLY
DISASSEMBLY
Remove the oil slinger [1] from the vertical shaft [2] by
expanding the cut in the oil slinger with a screwdriver
[3].
TOOLS:
Driver [5] 07749-0010000
Attachment, 37 x 40 mm [6] 07746-0010200
Pilot, 30 mm [7] 07746-0040700
