CONTROLS

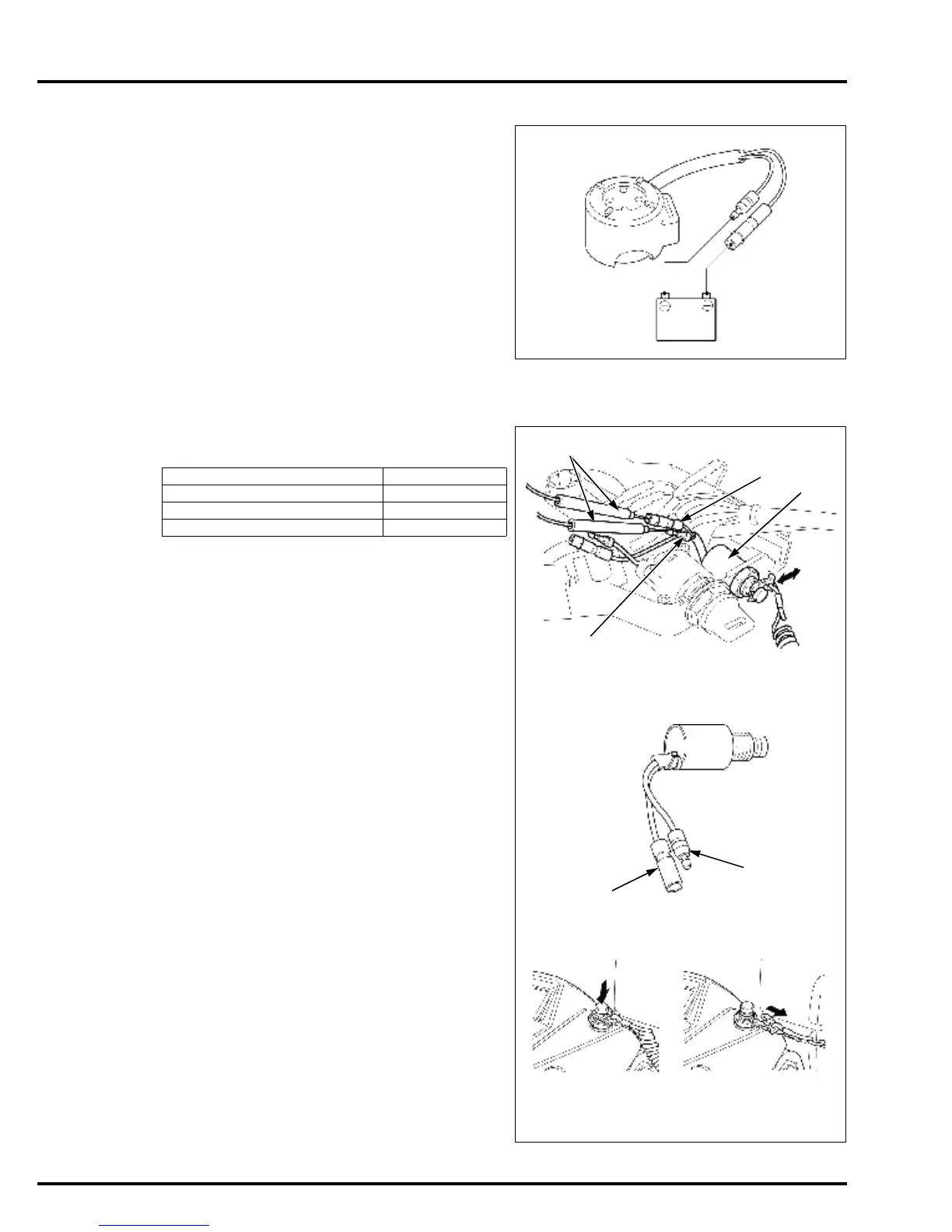

WARNING BUZZER INSPECTION
• Use a known-good battery for the test.
Connect the Black/Yellow terminal of the warning
buzzer to the positive (+) terminal of the 12 V battery
and the Yellow/Green terminal to the negative (–)
terminal of the battery. The warning buzzer should
sound.
EMERGENCY STOP SWITCH
INSPECTION
Attach the tester leads [1] to the two terminals of the
emergency stop switch [2] and check for continuity.
12V
Black/
Yellow
Yellow/
Green
Switch clip position Continuity
Switch clip set No
Switch clip not set Yes
Switch clip set and switch pushed Yes
Black
Switch clip not set.
Switch clip set and
switch pushed.
<Tiller handle type>
Black/Red
[1]
[2]
<Remote control type>
Black/Red
Black
