TOHATSU BFT75A - Starter Motor Disassembly

9-10
dummyheaddummyhead
STARTING SYSTEM
STARTER MOTOR DISASSEMBLY/
ASSEMBLY

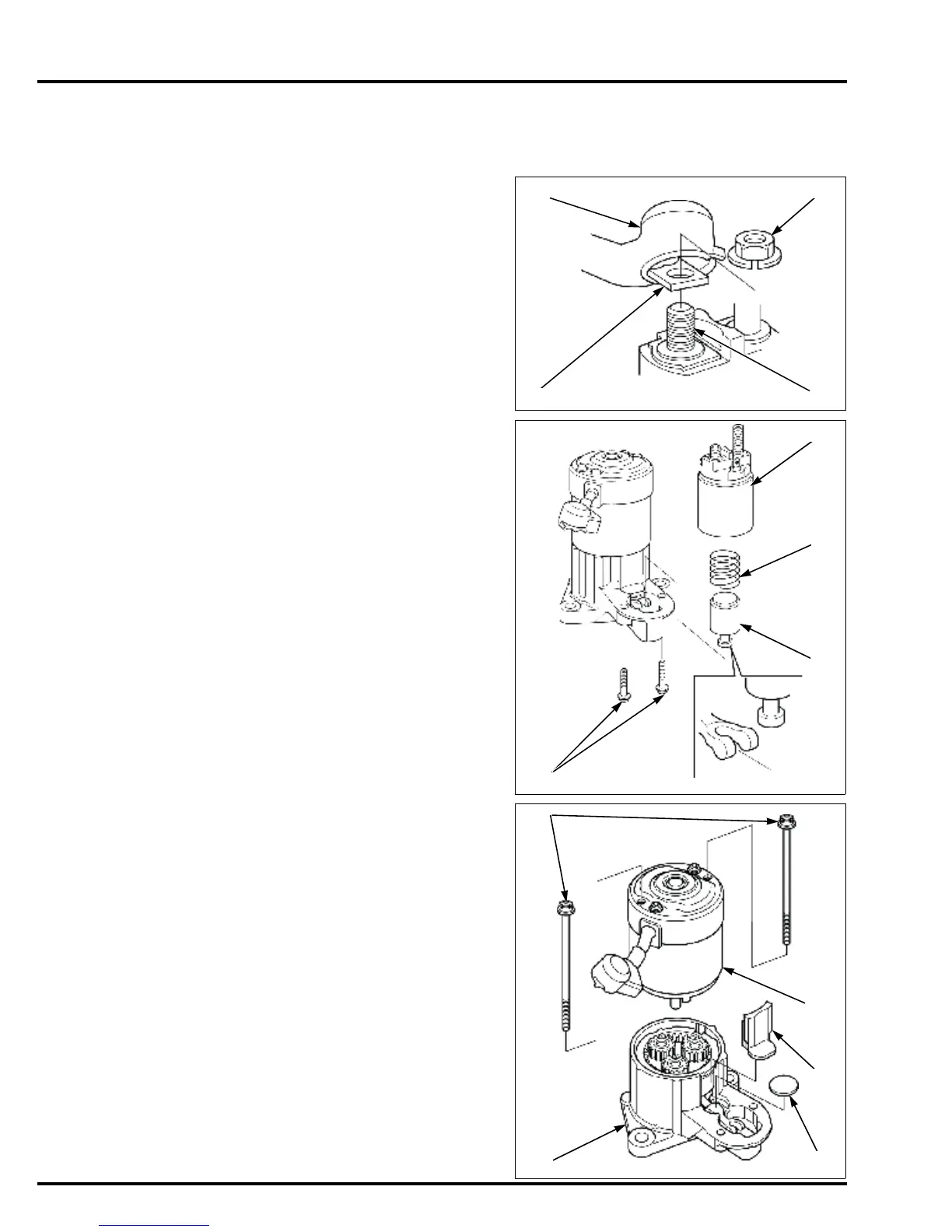

DISASSEMBLY
Remove the nut [1] by pulling off the terminal cover [2]
and disconnect the motor wire [3] from the M terminal
[4].
Remove the two screws [1].
Remove the starter solenoid [2], spring [3], and plunger
[4].
Remove the two bolts [1] and yoke/rear bracket [2] from
the front bracket [3].
Remove the packing [4] and plate [5].
[1][2]
[4]
[3]
[4]
[1]
[3]
[2]
[2]
[1]
[3]
[5]
[4]
