CONTROLS
SHIFT LINK BRACKET DISASSEMBLY/
ASSEMBLY
Remove the shift link bracket (page 19-8).
(MOUNTING PORTION)
(SEAT)

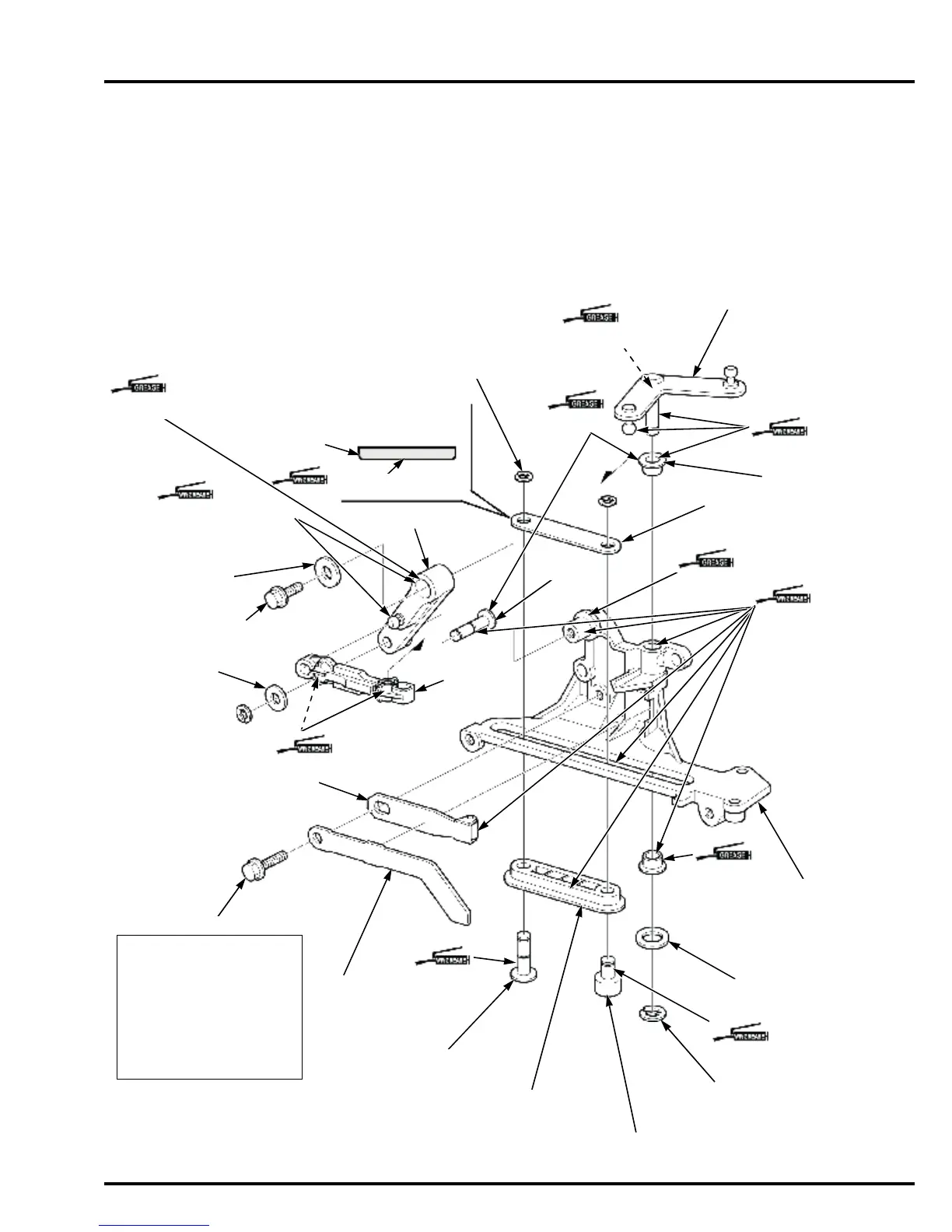

SHIFT LINK BRACKET
CHAMFER
INSTALLATION
DIRECTION:
THROTTLE PLATE
E-RING (4 mm) (3)
BUSHING A (2)
SHIFT PIVOT PLATE
E-RING (6 mm)
LINK PIN
WASHER (8 mm)
SHIFT SLIDE PIVOT
SHIFT LINK PIN
DETENT ASSISTED
SPRING
DETENT SPRING
PIVOT WASHER
LINK PIN
BOLT (6 X 16 mm)
BOLT (6 X 12 mm)
WASHER (6 mm)
THROTTLE ARM
(THROTTLE LINK
MATING SURFACE/
BEARING PORTION)
(SLIDING SURFACE)
THROTTLE LINK
(MATING SURFACE)
(MOUNTING
PORTION)
(SLIDING SURFACE)
INSTALLATION:
Loosely tighten.
Install the shift link bracket,
check that the detent spring
roller is in the groove in the
shift arm securely, and then
tighten the loosely tightened
bolt securely.
(WASHER MATING SURFACE)
