TOHATSU BFT75A - Page 221

5-80
dummyheaddummyhead
FUEL SYSTEM

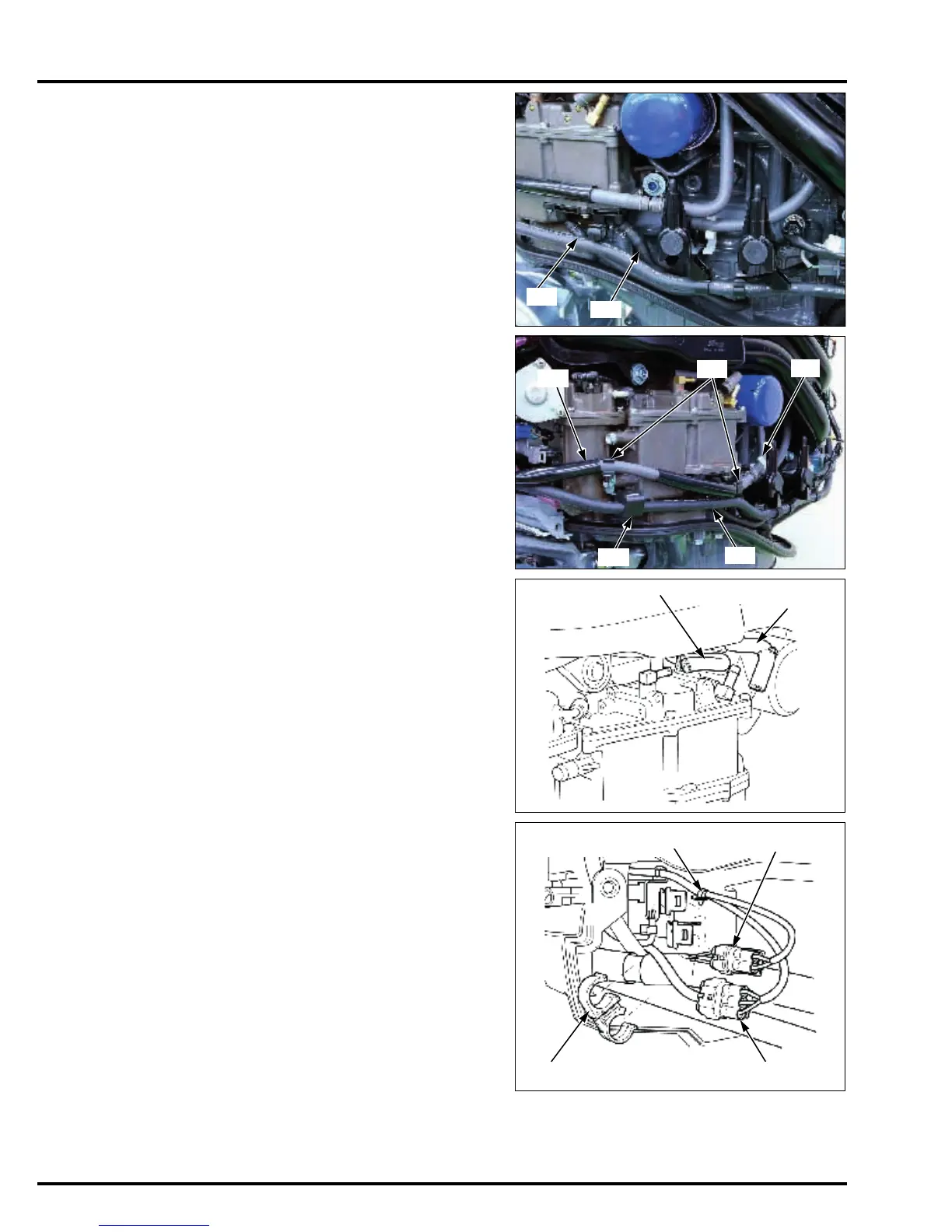

Connect water tube A [1] and B [2] into the water jacket
cover until they stop, and install the tube clip and tube
clip B 10.
Set fuel tube B [1] to the two fuel tube clamp Bs [2] by
attaching the ends of the protector tubes to the fuel tube
clamp Bs.
Set the fuel hose [3] to the fuel hose grommet [4].
Set fuel hose C to the tube clamp [5].
Connect air vent tube A [1] and fuel tube D [2] to the
vapor separator.
Set the water level sensor 2P connector [1] and the trim
angle sensor 3P connector [2] on the relay bracket.
Set the harness band clip [3] on the relay bracket.
• Install the hose clip [4] between the protective tubes
on fuel tube B.
[2]
[1]
[4]
[2]
[1]
[3]
[5]
[2]
[1]
[2]
[1]
[4]
[3]
