FUEL SYSTEM
INSTALLATION

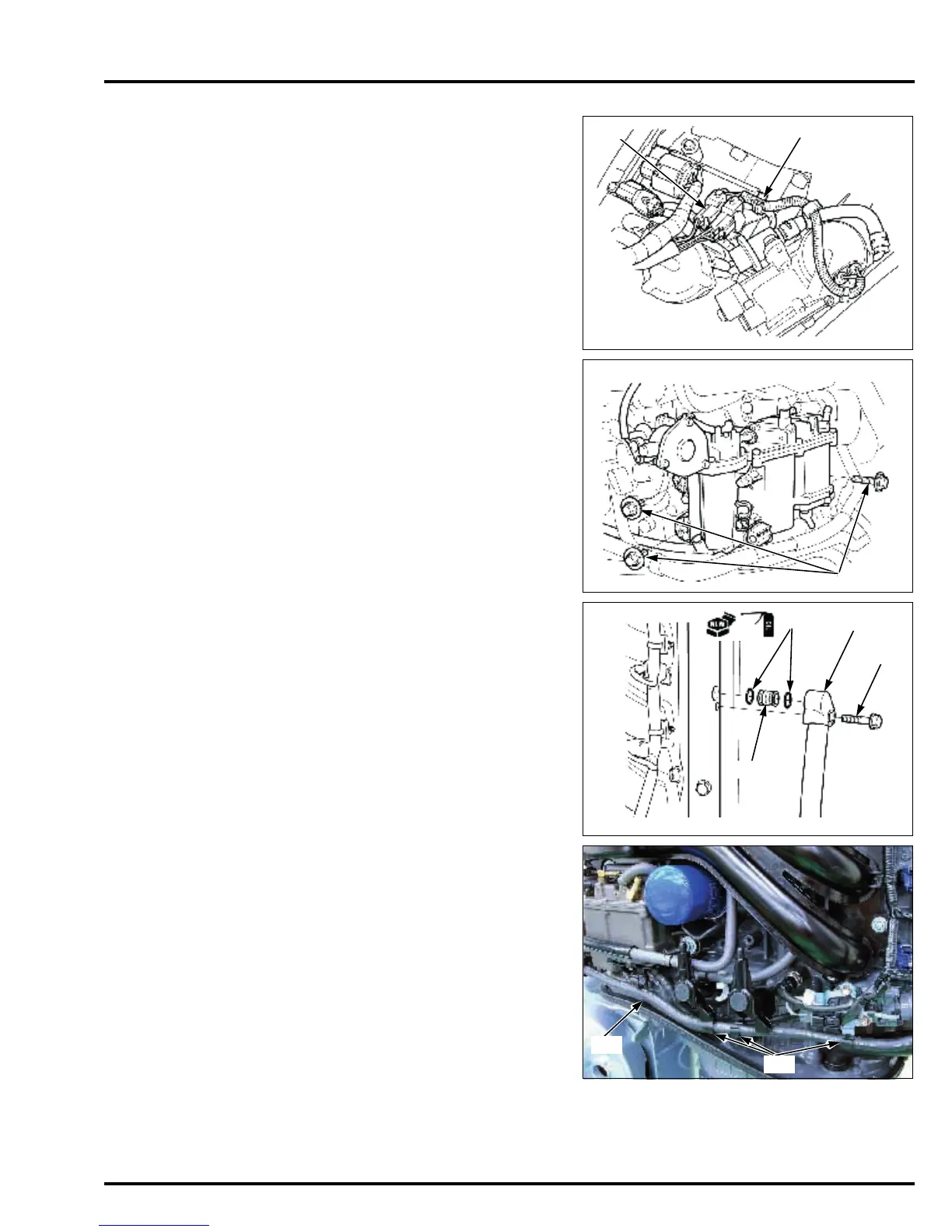

Connect the fuel pump (high pressure side) 2P
connector [1].
Connect the fuel pump (high pressure side) 2P
connector to the relay bracket, and secure the pump
harness to the cord clamp [2].
Install the vapor separator, and tighten the three bolt/
washers [1] securely.
Apply engine oil to two new O-rings [1], and install them
on the fuel pipe joint [2].
Set the fuel pipe joint into the fuel line until it stops.
• Do not insert the fuel pipe joint at an angle.
Set the fuel hose [3], and tighten the bolt [4] securely.
• Check that the fuel hose is connected securely and
it is not tightened at an angle.
Secure fuel tube [1] to the three fuel tube clamps [2].
[2]
[1]
[1]
[1]
[2]
[4]
[3]
[2]
[1]
