FUEL SYSTEM

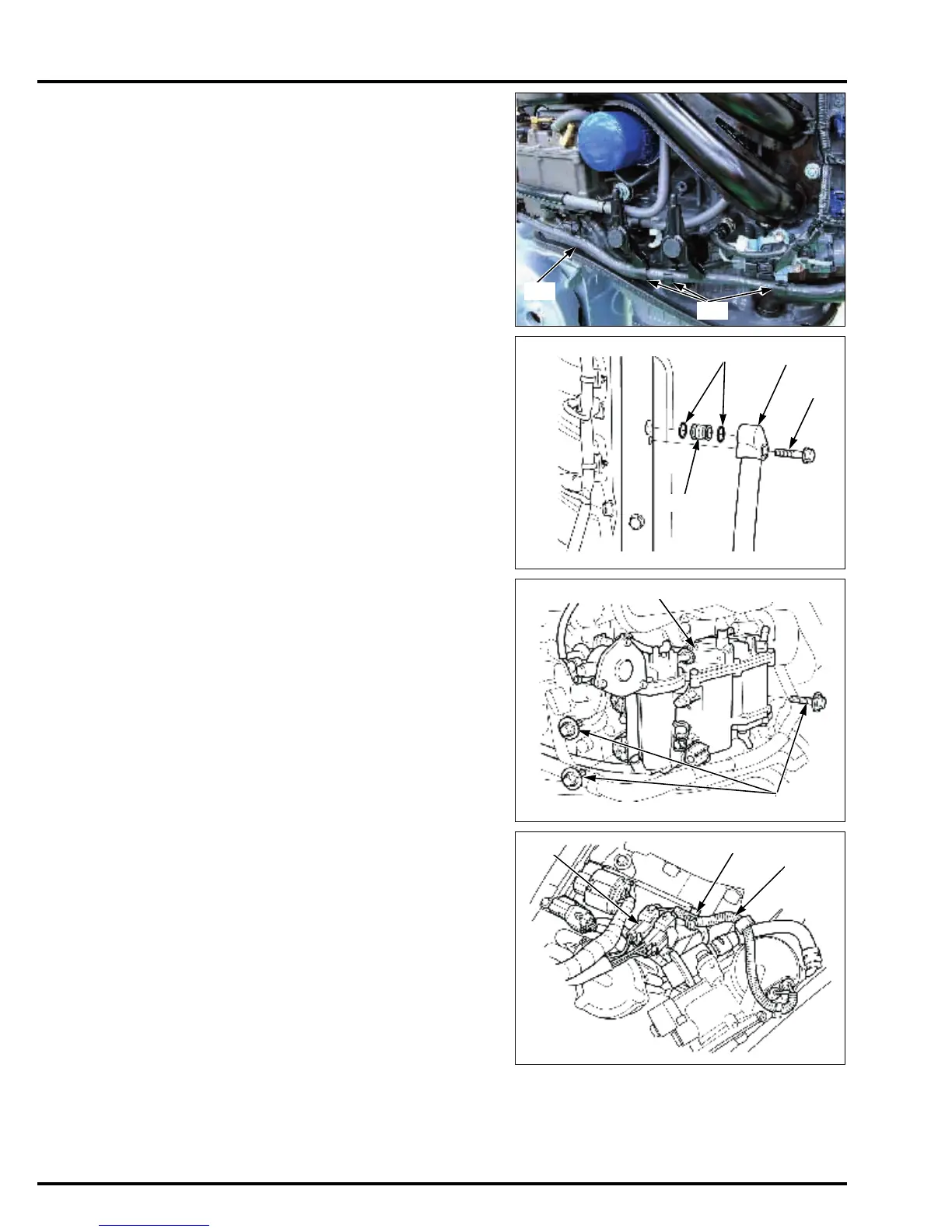

Release the fuel hose [1] from three fuel tube clamps
[2].
Remove the bolt [1], and disconnect the fuel hose [2]
from the fuel line.
Remove the fuel pipe joint [3], and remove the two O-
rings [4].
Remove the bolt/washers [1], and pull the vapor
separator [2] toward you.
Release the pump harness [1] from the cord clamper
[2]. Release the fuel pump (high pressure side) 2P
connector [3] from the relay bracket, and disconnect the
fuel pump (high pressure side) 2P connector.
