TOHATSU BFT75A - Page 292

9-7
dummyheaddummyhead

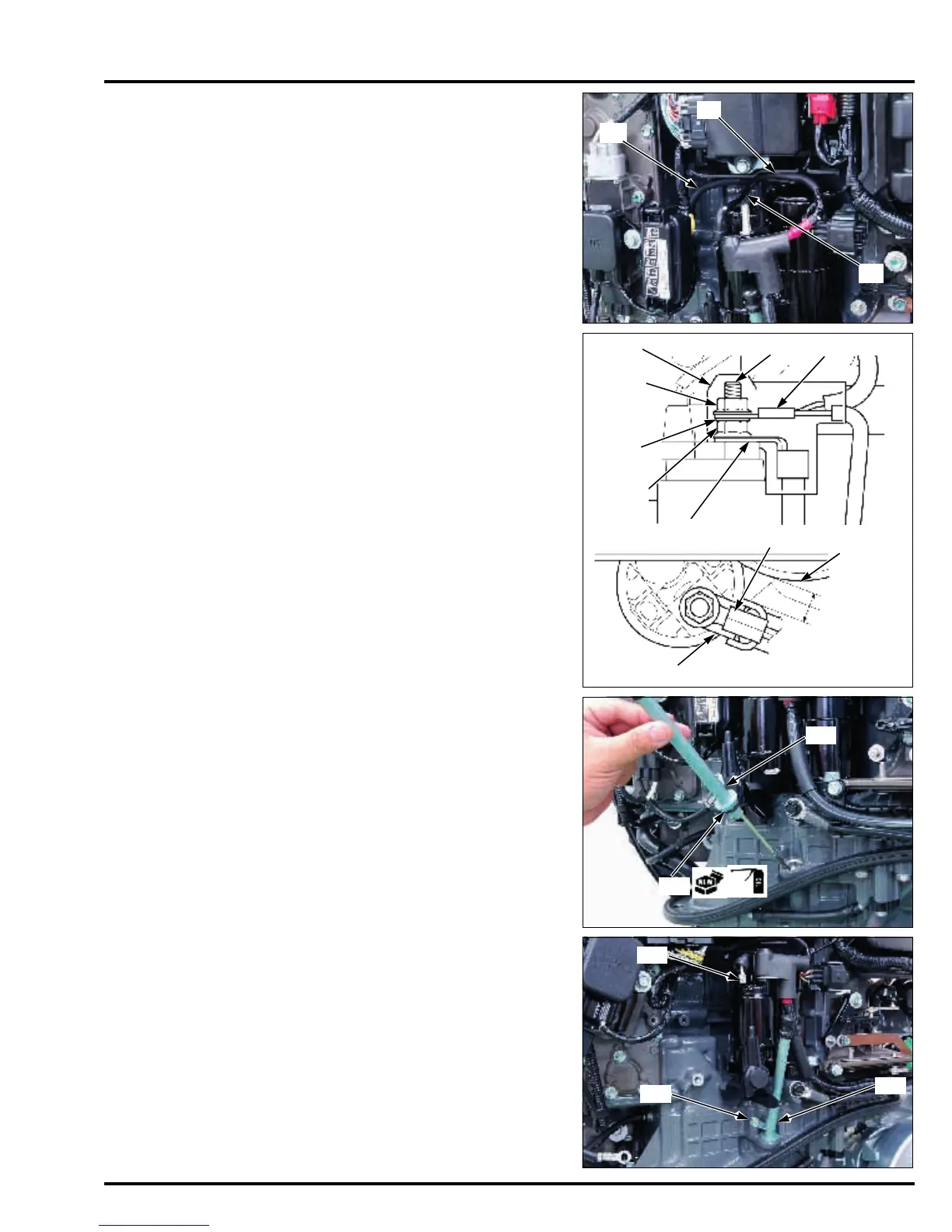

STARTING SYSTEM
Set the PGM-FI/Main relay white wire [1] and the fuse
cable [2] in the recess [3] in the electronic parts case.
Set the starter cable (+) [1] on the B terminal [2] of the
starter motor [3].
Install and tighten the nut [4] to the specified torque
while adjusting the clearance between the starter cable
(+) and the starter motor to 10 – 20 mm (0.4 – 0.8 in) as
shown.
Install the washer [5] on the starter motor B terminal.
Install the fuse cable [6] on the B terminal.
Hold the fuse cable parallel to the starter cable (+).
Install and tighten the nut [7] to the specified torque.
Install the terminal cover [8] over the B terminal.
Apply engine oil to a new O-ring [1] and install it to the
oil level gauge pipe [2].
Install the oil level gauge pipe [1] and bolt [2].
Tighten the bolt.
Connect the starter solenoid terminal [3].
Install the following:
– Fuse box bracket (page 10-4)
– Regulator/rectifier/70 A fuse box (page 10-4)
– R. engine under cover (page 6-7)
– Engine cover
– Battery (-) cable
[3]
[1]
[2]
TORQUE: 11 N·m (1.1 kgf·m, 8 lbf·ft)
TORQUE: 11 N·m (1.1 kgf·m, 8 lbf·ft)
[8]
[7]
[2]
[6]
[5]
[4]
[1]
10 – 20 mm
(0.4 – 0.8 in)
[3]
[1]
[6]
[2]
[1]
[2]
[3]
[1]
