16-10
dummyheaddummyhead
GEAR CASE

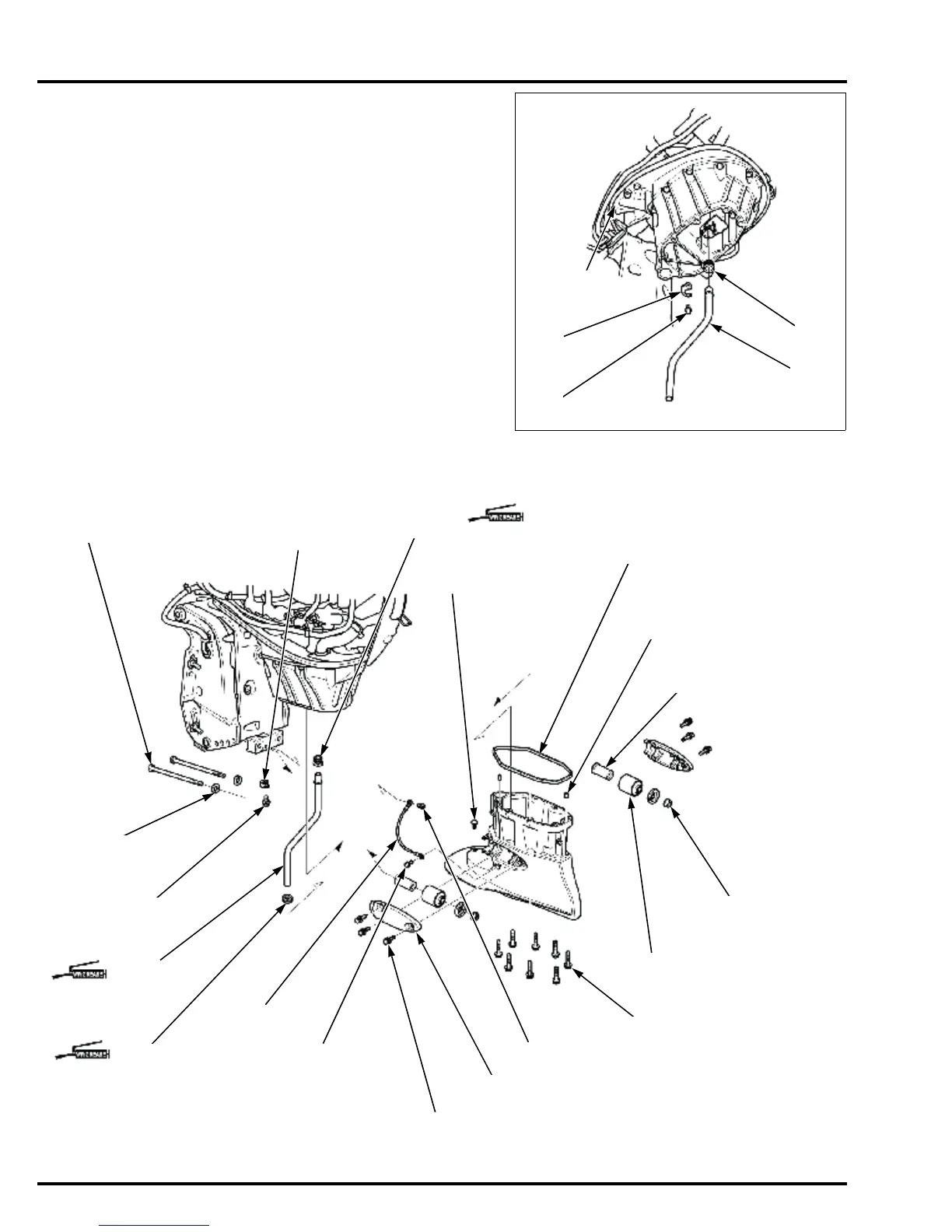

Remove the bolt [1], water tube plate [2], water tube [3],
and the water tube grommet [4].
EXPLODED VIEW
[2]
[1]
[4]
[3]
LID CLIP (7 mm)
UNDER COVER RUBBER
WATER TUBE
BOLT (12 x 186 mm) (2)
WASHER (12 mm) (2)
BOLT (6 x 12 mm)
BOLT (6 x 12 mm)
LEAD WIRE
BOLT/WASHER
(8 x 30 mm) (6)
SCREW (6 x 8 mm)
LOWER MOUNT
HOUSING (2)
BOLT (10 x 40 mm) (8)
LOWER RUBBER
MOUNT (2)
NUT (12 mm) (2)
LOWER MOUNT
COLLAR (2)
WATER TUBE
GROMMET
EXTENSION CASE
GROMMET
WATER TUBE
PLATE
(Inner surface)
(Tip area)
(Inner surface)
DOWEL PIN
(6 x 10 mm) (2)
83 N·m (8.5 kgf·m, 61 lbf·ft)
