FUEL SYSTEM
INSTALLATION
• Check each tube for deterioration or cracks, and
replace if necessary.

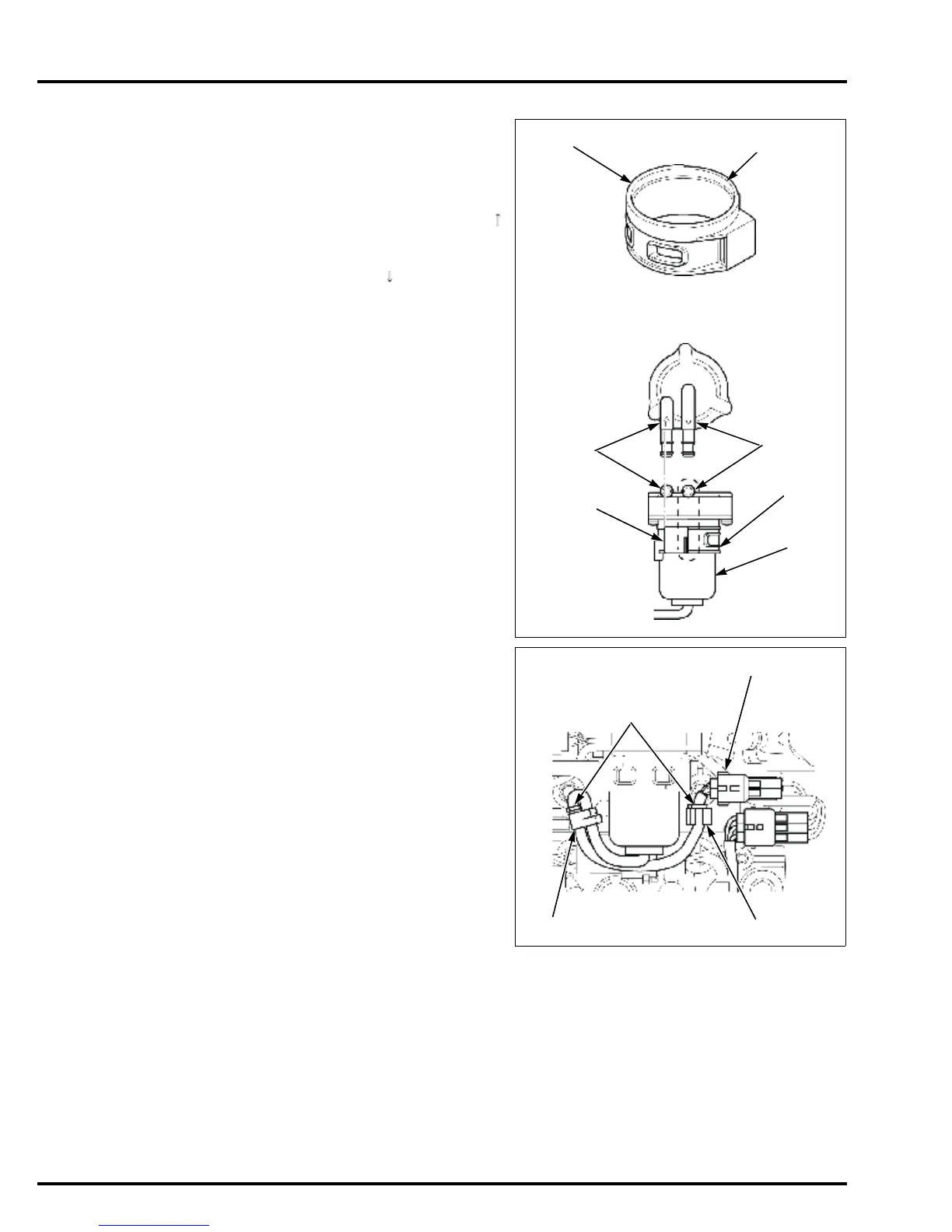

Set the suspension [1] on the water separator cup [2]
with the projection [3] up.
Install the suspension so that the flat part on the
backside [4] of the suspension is in line with the
mark (suction side) [5] of the joint.
Or, install the suspension so that the "I" mark on the
suspension is in the line with the mark (discharge
side) [6] of the joint.
Connect the water level sensor 2P connector [1].
Set the water level sensor wire in the harness clip and
in clip C [2] so that the two positioning bands [3] are in
the positions shown.
Close the harness clip [4].
