FUEL SYSTEM
CIRCUIT INSPECTION
1. Fuse inspection
Turn the combination switch OFF.
Check for blown No.1 fuse.
Is the fuse normal?
YES – GO TO STEP 2.
NO – Replace the blown fuse and check for a
short in the main wire harness or incorrect
load by referring to the fuse load chart
(page 4-13).

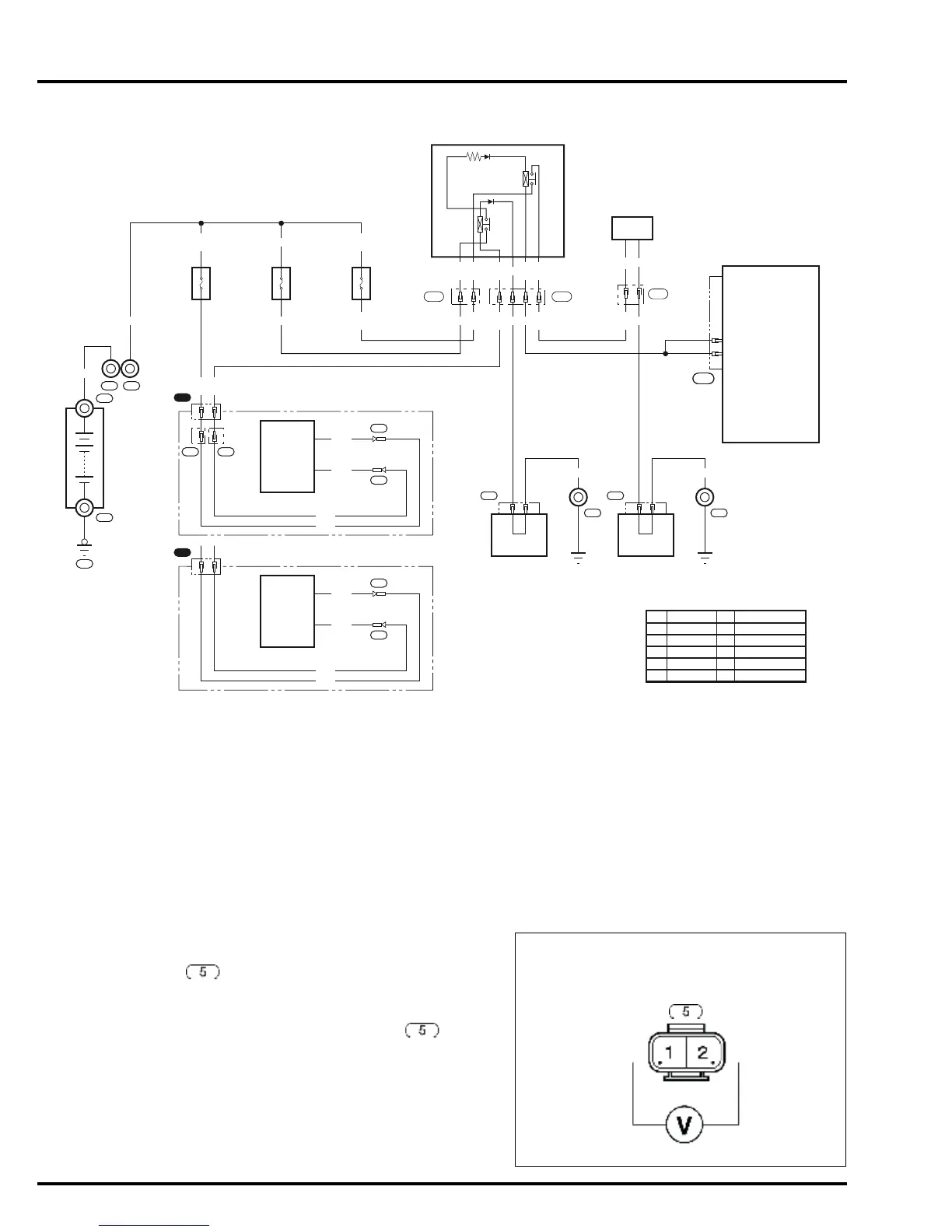

2. Fuel pump power/ground line open circuit
inspection
Turn the combination switch OFF and disconnect
the fuel pump (High pressure side) 2P connector
.
Turn the combination switch ON.
Measure the battery voltage between the fuel pump
(High pressure side) 2P connector main wire
harness side No.1 (Blue/Red) terminal and No.2
(Black) terminal.
Is there battery voltage for a few seconds?
YES – Replace the fuel pump (High pressure
side) with a new one and recheck.
NO – GO TO STEP 3.
