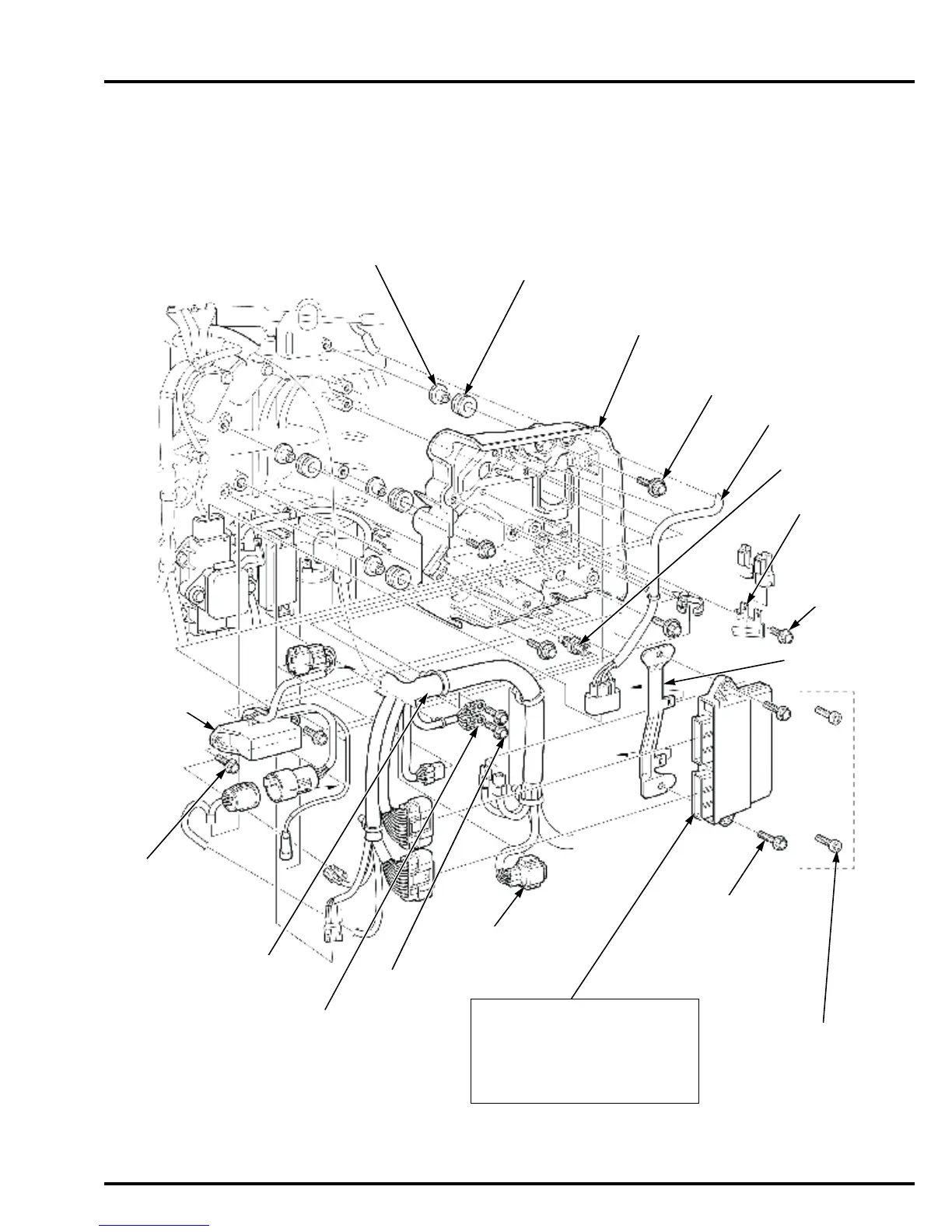

ECM, PGM-FI/MAIN RELAY REMOVAL/INSTALLATION
Remove the following:
– Battery (-) cable
– Engine cover
– R. engine under cover (page 6-5)
STATOR HARNESS
ECM BRACKET
GROUND TERMINALS
BOLT
(6 X 14 mm) (2)
MAIN HARNESS
PGM-FI/
MAIN RELAY
ECM
BOLT
(6 X 12 mm) (2)
BOLT
(6 X 10 mm)
NMEA 2000 6P
CONNECTOR
COLLAR (4)
ECT
SENSOR 2
ELECTRONIC PARTS
CASE GROMMET (4)
ELECTRONIC
PARTS CASE
BOLT/WASHER
(6 X 27 mm) (4)
HARNESS CLIP
BRACKET C
TORX BOLT (6 X 20 mm) (2)
5 N·m (0.51 kgf·m, 3.7 lbf·ft)
(BF75D/BF90D LRTA, XRTA,
LRTC, XRTC only and
BF80A/BF100A)
(Except BF75D/BF90D LRTA,
XRTA, LRTC, XRTC type and
BF80A/BF100A)
5 N·m (0.51 kgf·m, 3.7 lbf·ft)
When replacing the ECM, perform
the reset procedure the necessary
number of times according to the
total operating hour at the time of
replacement, or adjust the operating
hour notification timing.
BOLT (6 X 20 mm) (2)
5 N·m (0.51 kgf·m,
3.7 lbf·ft)
5 N·m (0.51 kgf·m,
3.7 lbf·ft)
