LUBRICATION SYSTEM

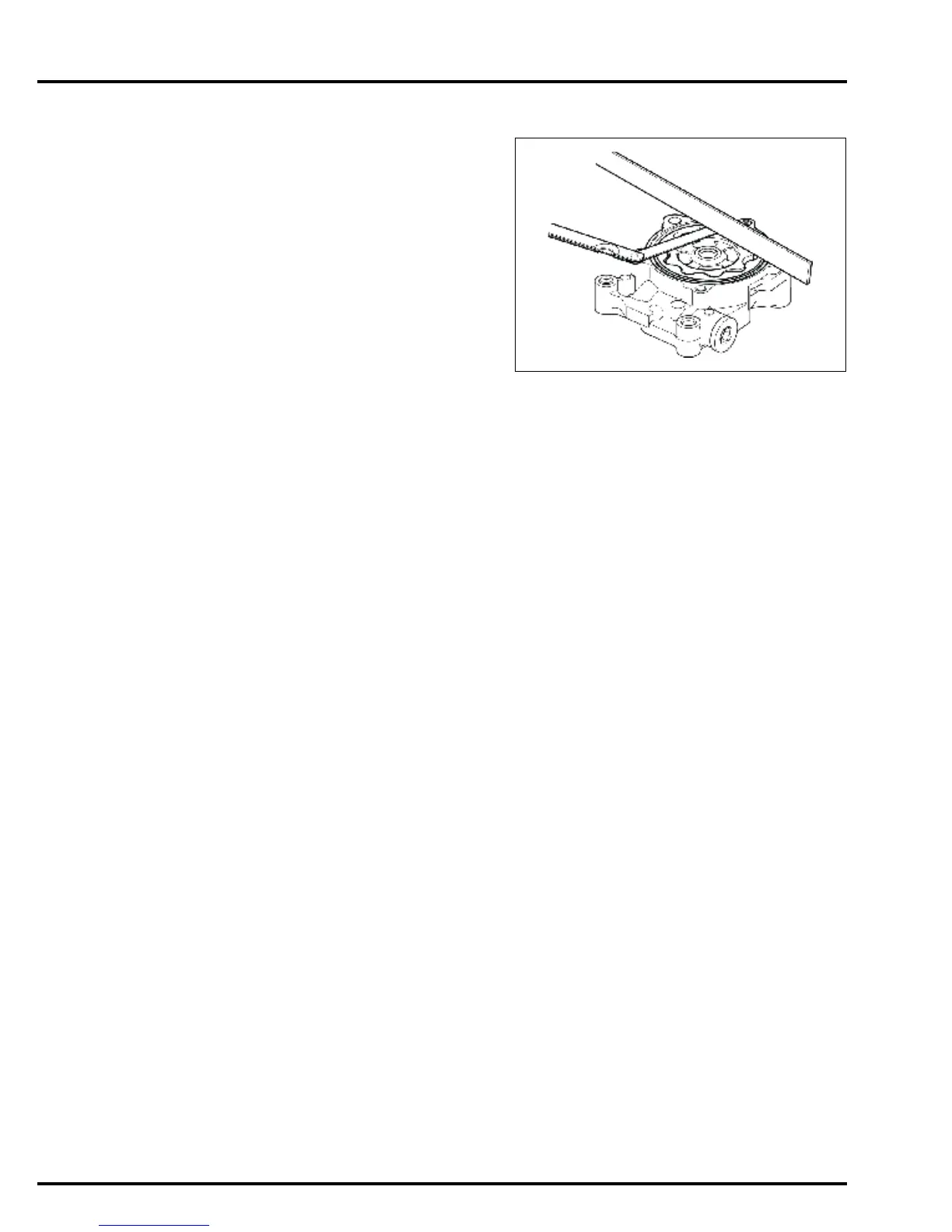

OUTER ROTOR-TO-OIL PUMP BODY
SIDE CLEARANCE
Measure the outer rotor-to-oil pump body side
clearance.
If the measurement exceeds the service limit, replace
the outer rotor and the oil pump body with the new ones
as a set.
STANDARD:
0.04 – 0.09 mm (0.002 – 0.004 in)
SERVICE LIMIT:
0.12 mm (0.005 in)
