TOHATSU BFT75A - Page 384

14-25
dummyheaddummyhead
CYLINDER HEAD

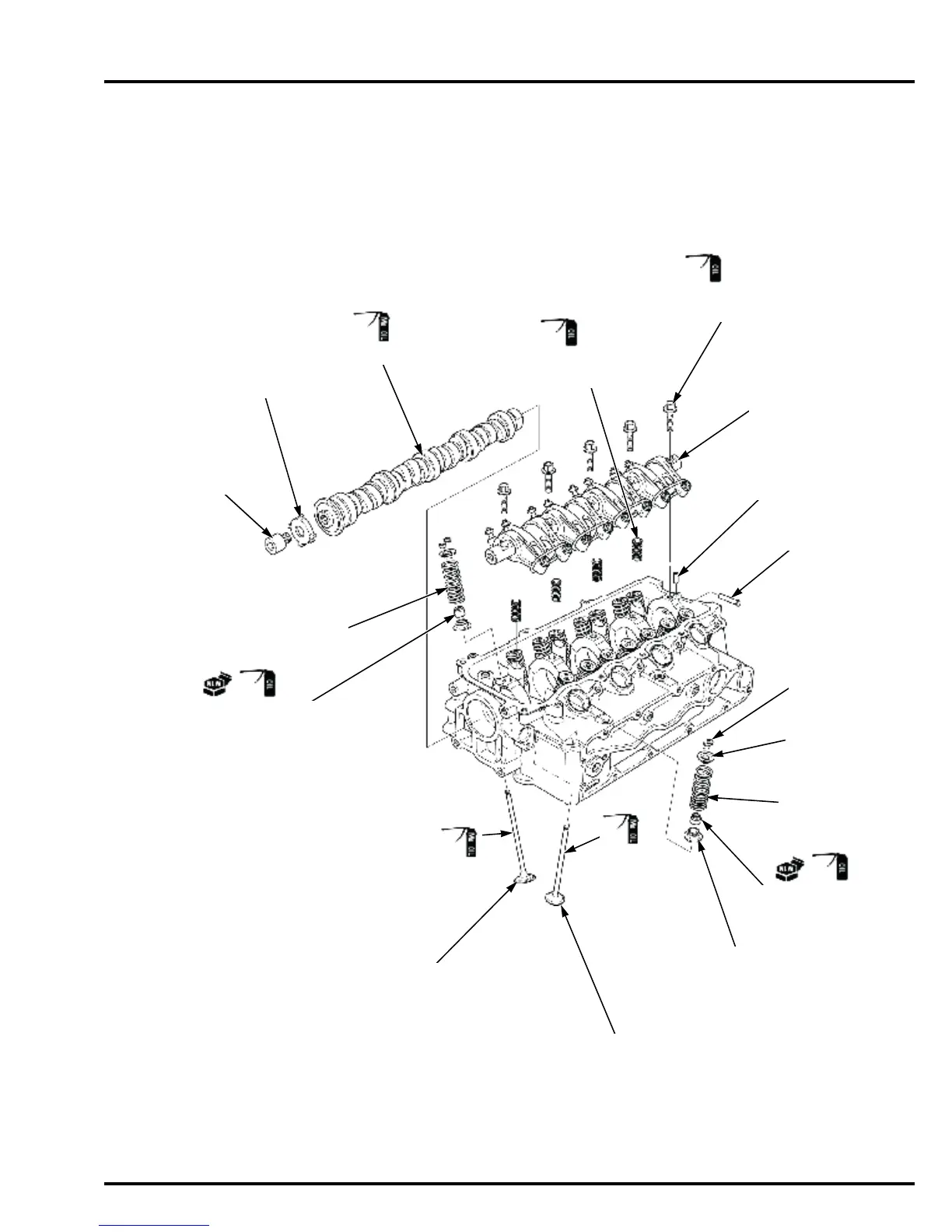

EXPLODED VIEW
VALVE
KEEPER (32)
EXHAUST VALVE
SPRING (8)
VALVE SPRING
SEAT (16)
VALVE SPRING
RETAINER (16)
INTAKE VALVE (8)
EXHAUST VALVE (8)
VALVE STEM
SEAL B (8)
DOWEL PIN (7 x 12 mm)
FUEL PUMP LIFTER
VALVE STEM SEAL A (8)
INTAKE VALVE
SPRING (8)
LOST MOTION
SPRING (4)
ROCKER SHAFT BOLT (5)
ROCKER SHAFT
ASSEMBLY
CAMSHAFT
CAM PULSER PLATE
CAM PULSER PLATE
BOLT
34 N·m (3.5 kgf·m, 25 lbf·ft)
29 N·m (3.0 kgf·m, 21 lbf·ft)
