16-6
dummyheaddummyhead

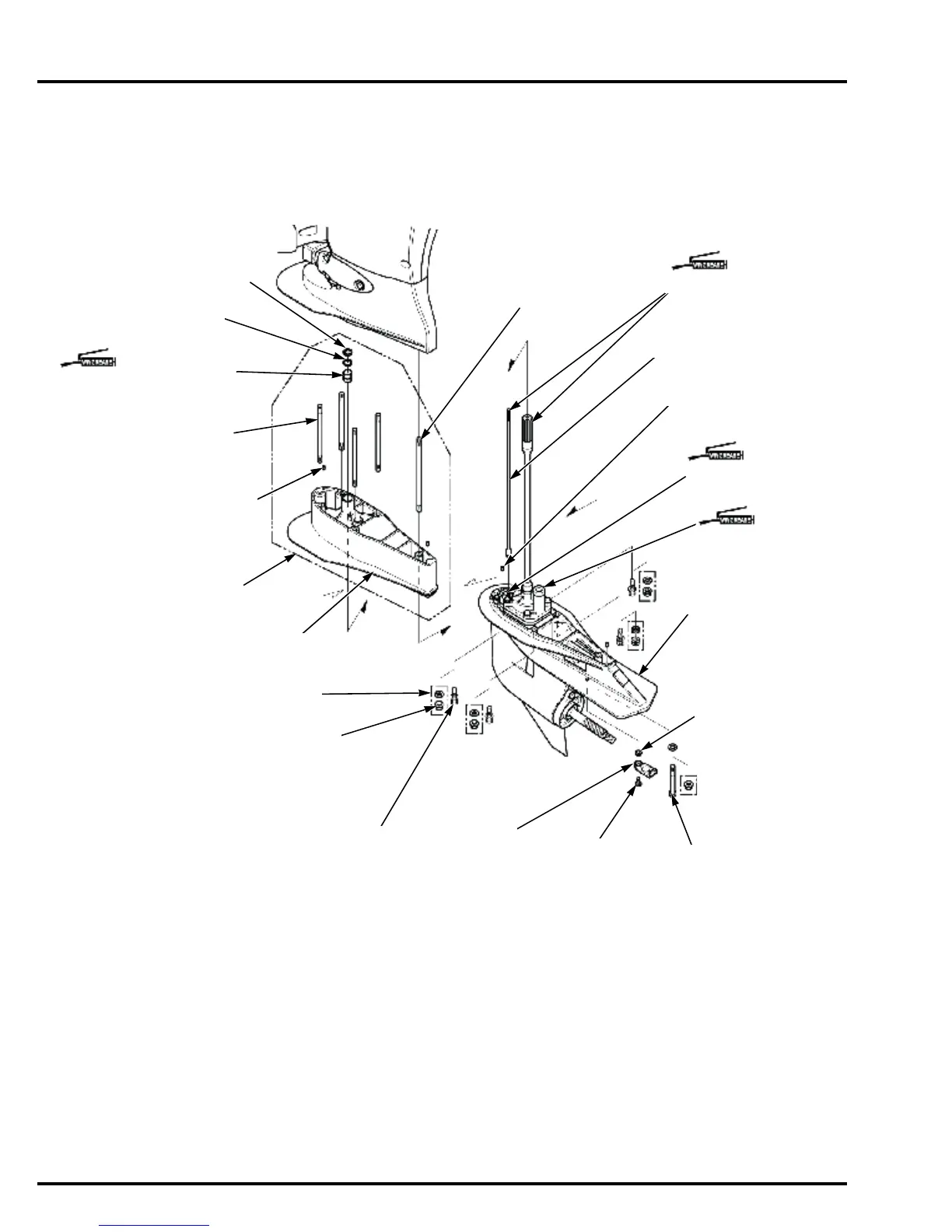

GEAR CASE
EXPLODED VIEW
STUD BOLT
(10 x 202 mm)
XRT type only
WASHER (26 mm)
CIRCLIP (40 mm)
VERTICAL
SHAFT BUSHING
SHIFT ROD A
GEAR CASE
SELF-LOCKING NUT (10 mm)
XRT type only
BOLT/WASHER (10 x 40 mm) (4)
34 N·m (3.5 kgf·m, 25 lbf·ft)
GEAR CASE
COVER B
12 N·m (1.2 kgf·m,
9 lbf·ft)
34 N·m (3.5 kgf·m, 25 lbf·ft)
DISTANCE COLLAR
(6.5 x 9 x 3 mm)
SOCKET BOLT
(6 x 16 mm)
BOLT (10 x 80 mm)
(Water tube seal ring
inner surface)
(Shift rod spline)
DOWEL PIN (2)
34 N·m (3.5 kgf·m, 25 lbf·ft)
EXTENSION SEPARATOR
DOWEL PIN (2)
STUD BOLT
(10 x 164 mm) (4)
(Spline)
