MOUNT

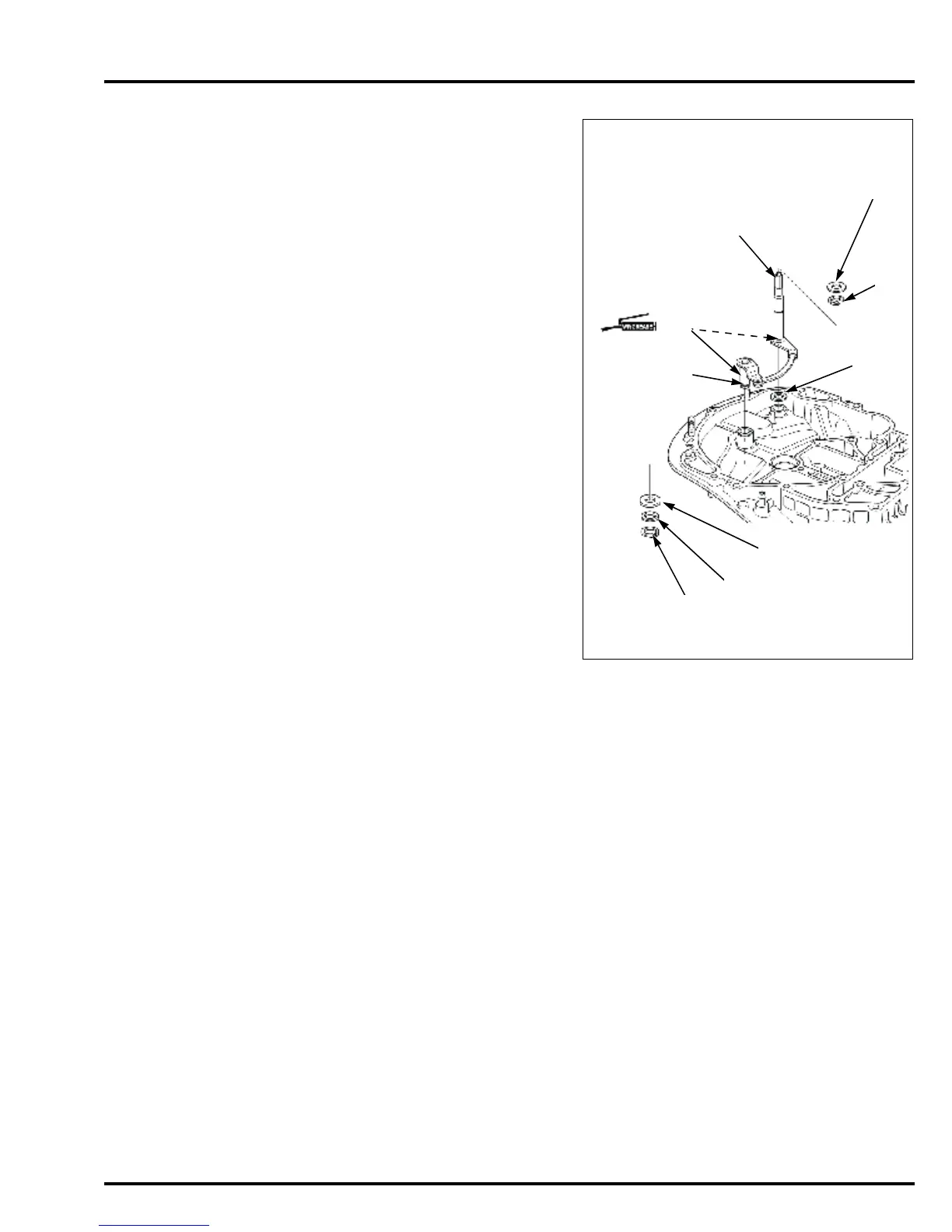

SHIFT SHAFT INSTALLATION
Apply marine grease to the shift shaft assembly
installation part [1] in the mount case.
Set the shift shaft washer [2] on the mount case.
Install shift shaft A [3] and shift shaft B [4] of the shift
shaft assembly in the mount case in this sequence.
• Install shift shaft A with care not to turn up the water
seal (14 x 26 x 6 mm).
• Check that the shift shaft washer is set in position
under shift shaft B securely.
Install the washer (14 mm) [5], washer (13 mm) [6], and
the external circlip [7] on shift shaft A.
Install the E-ring [8] and the side washer (14 mm) [9] on
shift shaft B.
Install the engine on the mount case (page 13-8).
[4]
[2]
[1]
[3]
[5]
[6]
[7]
[9]
[8]
