TRIM/TILT

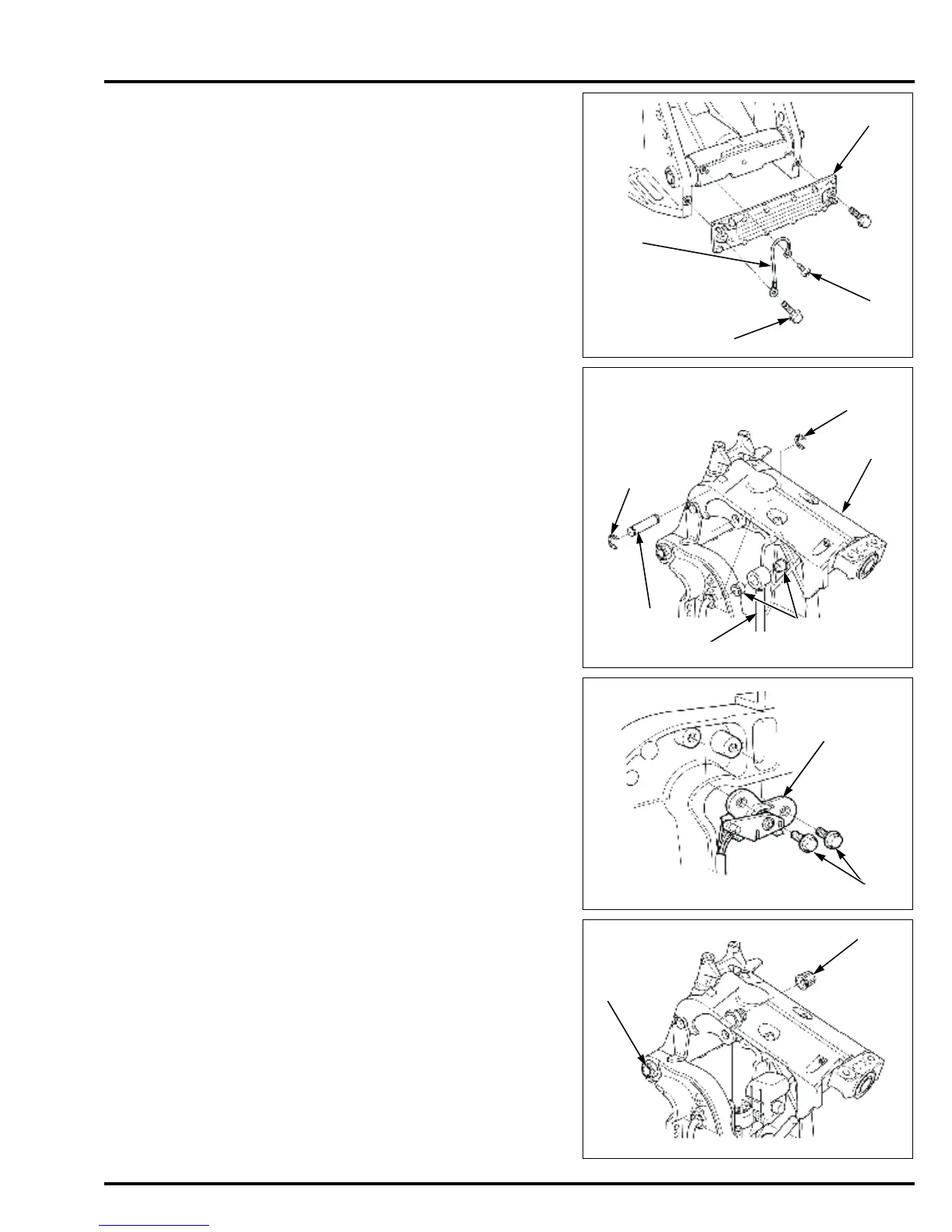

Remove the screws [1] and ground wire [2].
Remove the two bolts [3], ground wire, and the anode
metal [4] from the stern brackets.
• Check the anode metal for corrosion. If it is corroded
excessively, replace with a new one.
Remove the two E-rings [1] from the upper cylinder pin
[2].
Remove the upper cylinder pin and piston rod [3] from
the swivel case [4].
Check the upper cylinder bushings mounted on the
piston rod of the power trim/tilt. Replace the upper
cylinder bushings with new ones if they are worn,
damaged or deformed.
Remove the upper cylinder bushing [5] from the piston
rod.
Remove the two bolts [1] and the trim angle sensor [2]
from the L. stern bracket.
Remove the tilting bolt cap [1] and the loosen the self-
locking nut (25 X 2.0 mm) [2] fully.
• The self-locking nut (25 X 2.0 mm) must not come
off the tilting shaft.
