TRIM/TILT

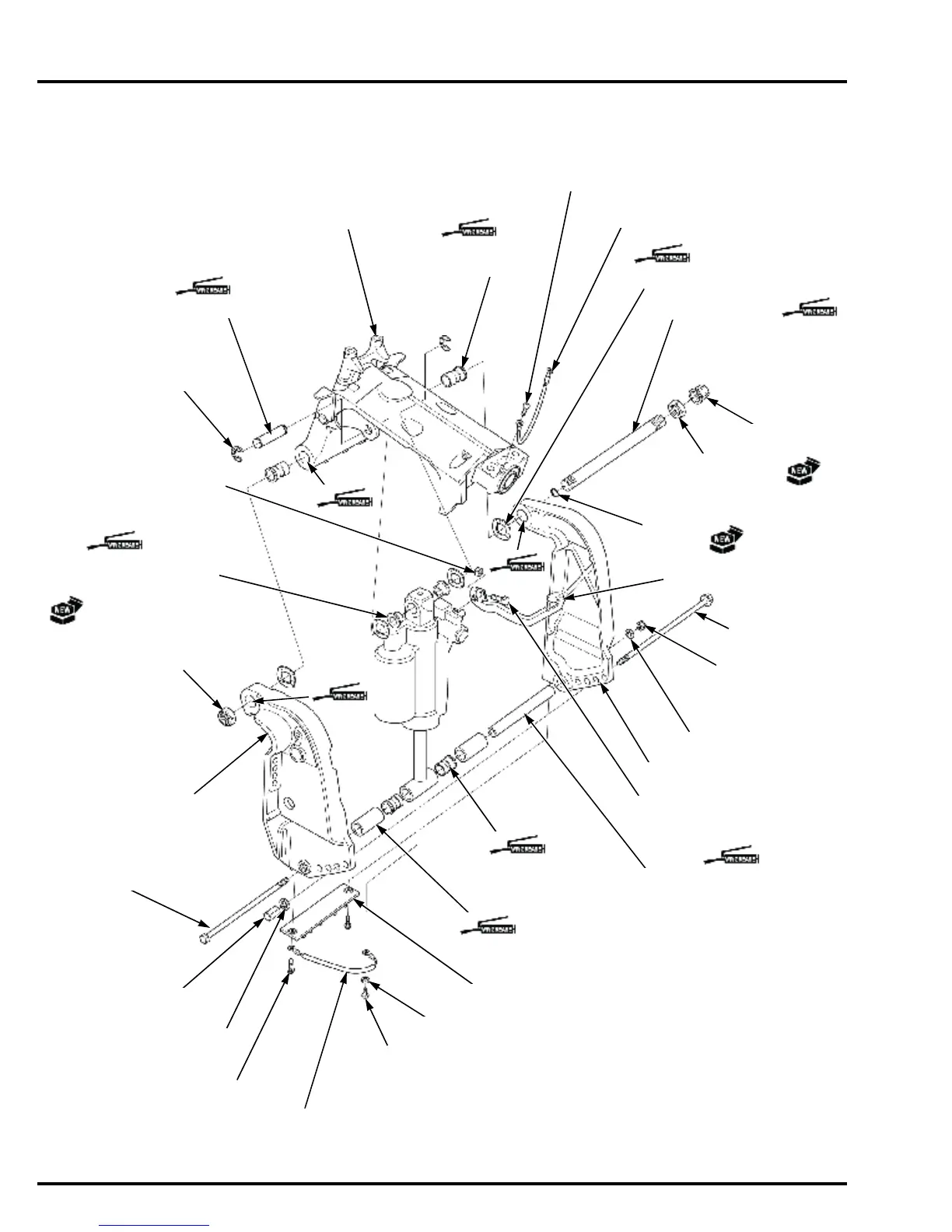

EXPLODED VIEW
34 N·m (3.5 kgf·m, 25 lbf·ft)
TILTING SHAFT
WAVE WASHER (26 mm) (4)
LEAD WIRE (137 mm)
SCREW (6 x 8 mm)
SWIVEL CASE
BUSHING (2)
SWIVEL CASE
UPPER CYLINDER PIN
LOWER CYLINDER
BUSHING (2)
LOWER CYLINDER
COLLAR
SPACER (2)
R. STERN BRACKET
L. STERN BRACKET
34 N·m (3.5 kgf·m, 25 lbf·ft)
SELF-LOCKING NUT (25 x 2.0 mm)
SELF-LOCKING NUT
(7/8-14 UNF mm)
O-RING
SELF-LOCKING
NUT (10 mm)
WASHER (10 mm)
BOLT (6 x 23 mm) (2)
ANODE METAL
SCREW (6 mm)
WASHER (6 mm)
LEAD WIRE (137 mm)
WASHER
NUT
BOLT (6 X 25 mm)
TILT LEVER
NUT (6 mm)
ADJUSTING BOLT
UPPER CYLINDER
BUSHING (2)
E-RING (15 mm) (2)
BOLT (10 x 235 mm)
TILTING CAP
