TRIM/TILT

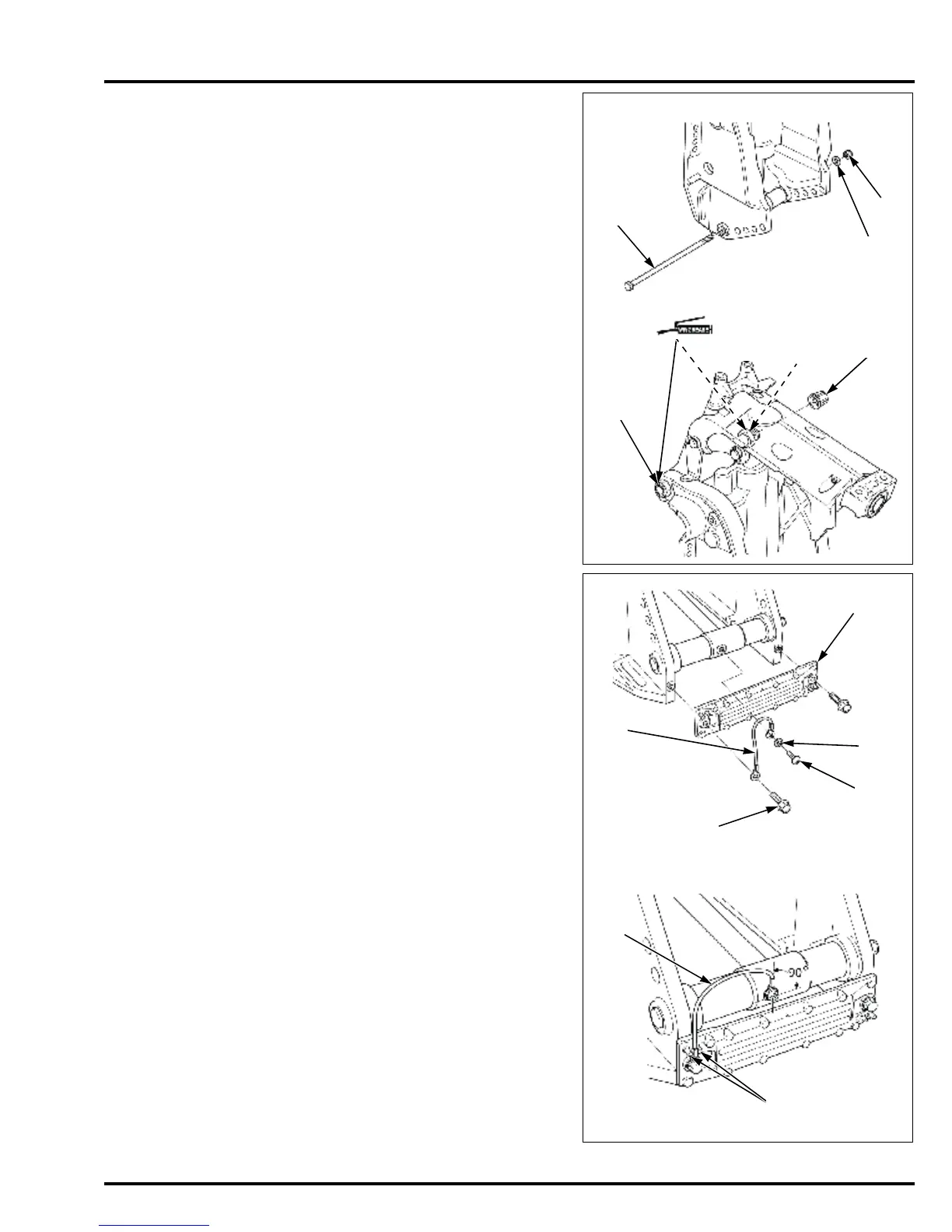

While pushing the L./R. stern brackets lightly toward the
swivel case side, install the bolt [1] and the washer [2],
and loosely tighten the self-locking nut (10 mm) [3].
Tighten the self-locking nut (25 x 2.0 mm) [4] to the
specified torque so that the tilting shaft end is flush with
the nut end.
Tighten the self-locking nut (7/8-14 UNF) [5] to the
specified torque.
Tighten the self-locking nut (10 mm).
Apply marine grease to the threads of both sides of the
tilting shaft.
Install the tilting bolt cap [6].
Set the lead wire [1] between the projections [2] on the
anode metal [3], and install them with the two bolts [4].
Tighten the bolts.
• Before installation, check the anode metal for
corrosion and replace it with a new one if necessary.
Set the lead wire as shown and install the spacer [5]
and screw [6].
Tighten the screw.
TORQUE: 34 N·m (3.5 kgf·m, 25 lbf·ft)
TORQUE: 34 N·m (3.5 kgf·m, 25 lbf·ft)
[2]
[3]
[1]
[4]
[5]
[6]
[6]
[1]
[4]
[3]
[2]
[5]
[1]
