2-42
dummyheaddummyhead

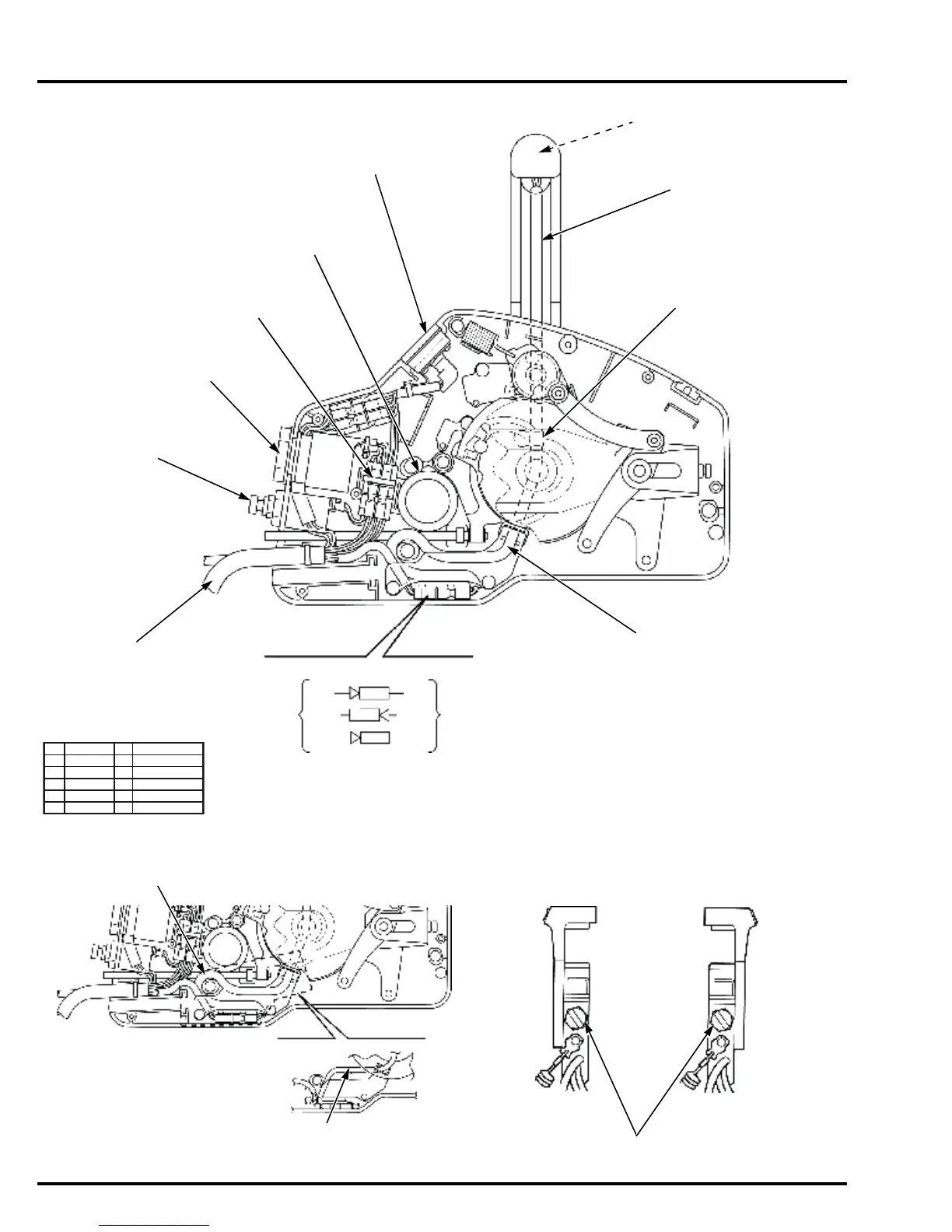

SERVICE INFORMATION
LgLg
W/BlW/Bl
LbLb
INDICATOR LIGHT
WARNING BUZZER
TIE-WRAP BAND
COMBINATION SWITCH
EMERGENCY
STOP SWITCH
REMOTE CONTROL
CABLE B
REMOTE CONTROL
CABLE B
POWER TRIM/TILT
SWITCH WIRE
POWER TRIM/TILT
SWITCH WIRE
WIRE HARNESS CLIP
POWER TRIM/TILT
SWITCH WIRE
POWER TRIM/TILT SWITCH
*2:
*1:
COMBINATION SWITCH
FIG. A. FIG. B.
*1:
Power trim/tilt switch wire routing when the remote
control handle is installed as shown in Fig. A.
*2:
Power trim/tilt switch wire routing when the remote
control handle is installed as shown in Fig. B.
POWER TRIM/TILT
SWITCH WIRE
POWER TRIM/TILT
SWITCH WIRE
BLACK
YELLOW
BLUE
GREEN
RED
WHITE
BROWN
ORANGE
LIGHT BLUE
LIGHT GREEN
PINK
GRAY
Bl
Y
Bu
G
R
W
Br
O
Lb
Lg
P
Gr
REMOTE CONTROL TYPE:
