e-STUDIO5520C/6520C/6530C © 2008-2011 TOSHIBA TEC CORPORATION All rights reserved
REPLACEMENT OF PC BOARDS/HDD
7 - 2
7.1.3 SYS board case

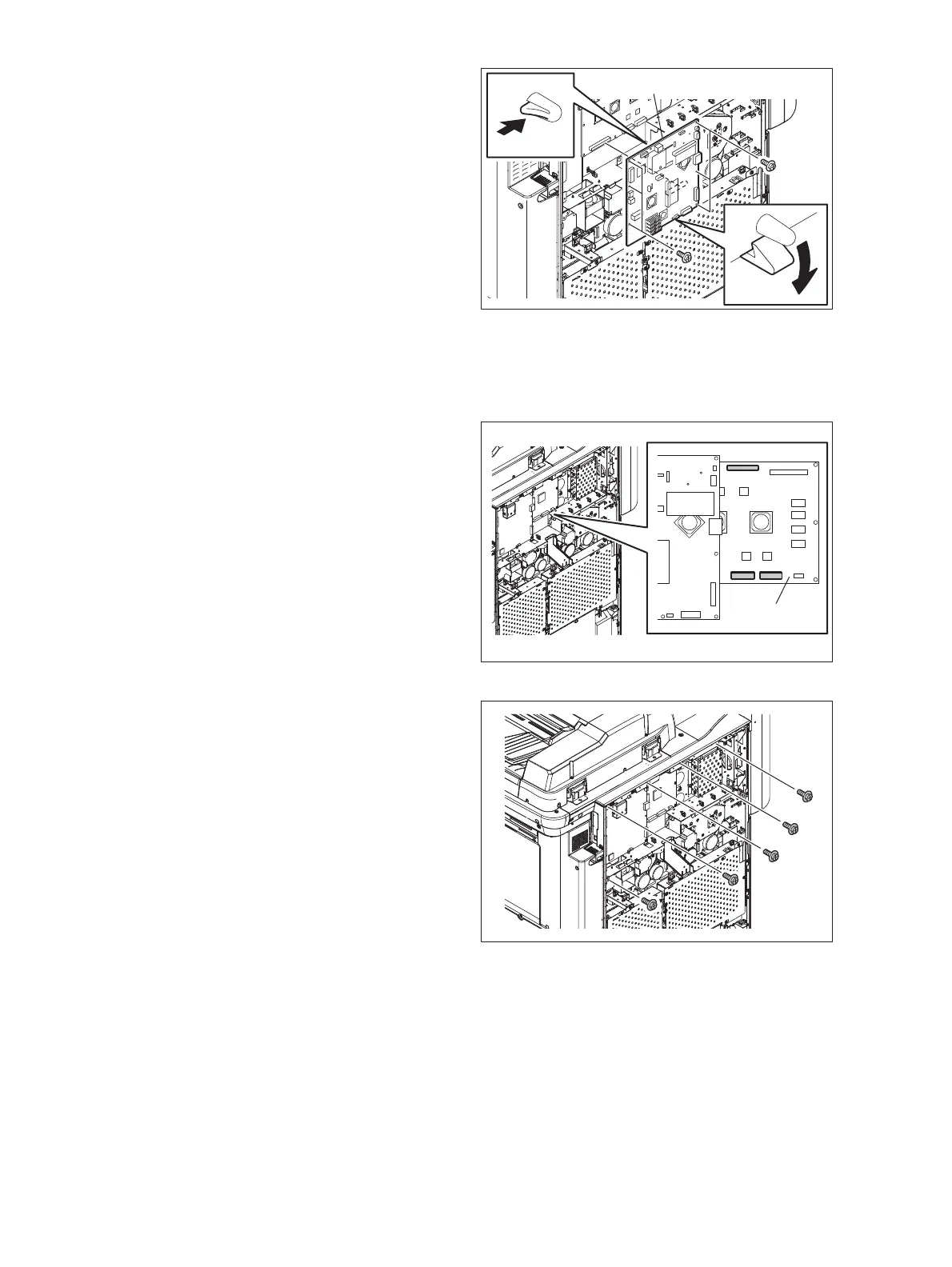

(3) Remove 6 screws, release 2 locking
supports and take off the SYS board.
Fig. 7-3
(1) Take off the SYS board cover.
 P.7-1 "7.1.1 SYS board cover"
(2) Disconnect 3 connectors on the IMG board.
Fig. 7-4
(3) Remove 5 screws.
Fig. 7-5
SYS board
IMG board
