© 2008-2011 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5520C/6520C/6530C
SELF-DIAGNOSTIC MODE
2 - 15

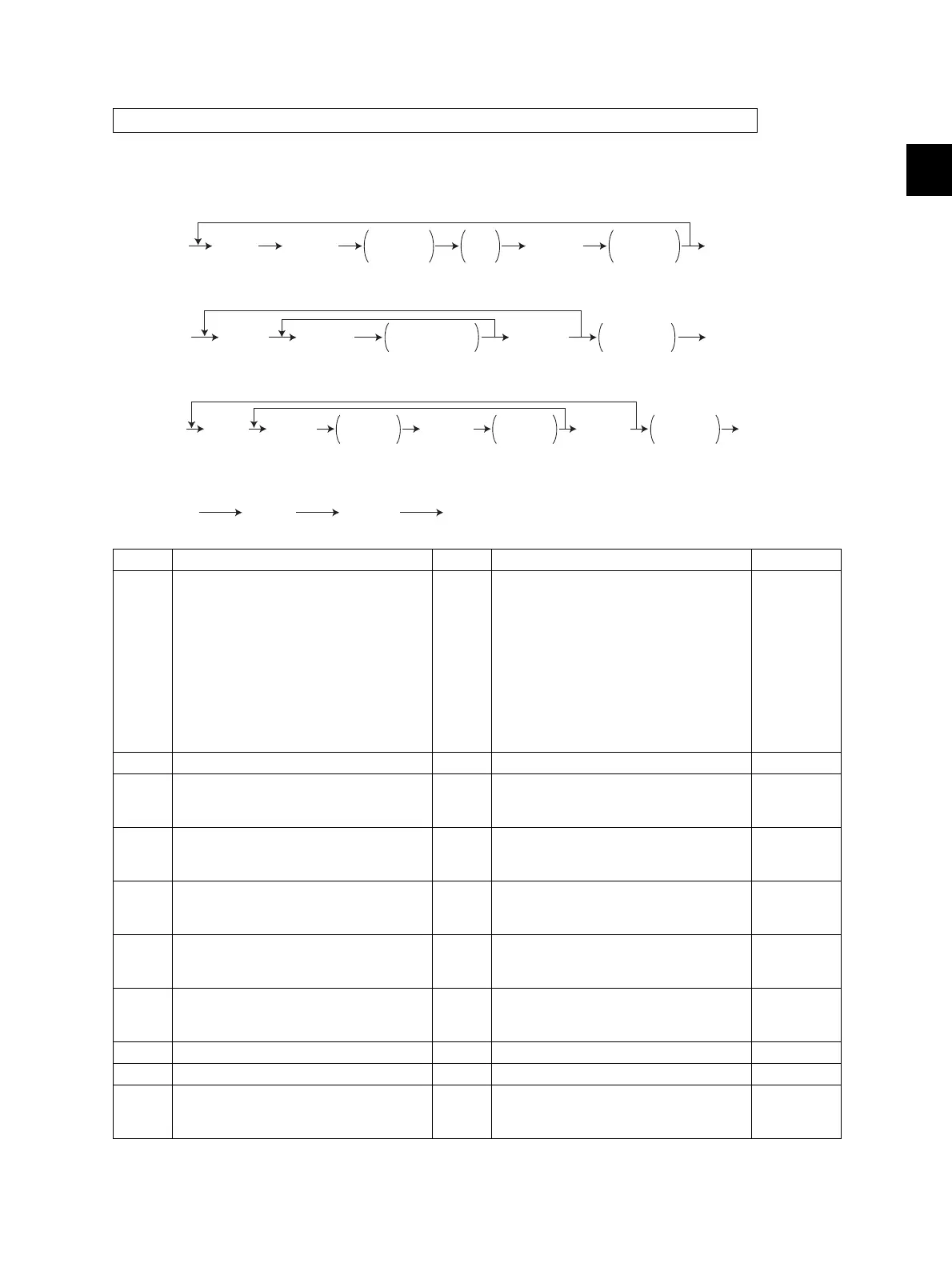

2.2 Output check (test mode 03)
<Operation procedure>
Procedure 1
Procedure 2
Procedure 3
Procedure 4
Status of the output signals can be checked by entering the following codes in the test mode 03.
Code Function Code Function Procedure
101 2nd transfer roller release /
Transfer belt cam motor Contacted
Transfer belt motor ON
Drum motor-K ON
Drum motor-YMC ON
Developer unit motor-K ON
Developer unit motor-YMC ON
Developer unit mixer motor-K ON
Developer unit mixer motor-YMC ON
(Operation available with the process
unit installed)
151 Code No.101 function OFF 1
103 Polygonal motor (600dpi) ON 153 Code No.103 function OFF 1
104 Laser ON
* Do not radiate laser beam onto the
photoconductive drums for a long time.
154 Code No.104 function OFF 1
110 Drum motor-K ON
(Operation available without the
process unit)
160 Code No.110 function OFF 1 (*1)
111 Drum motor-YMC ON
(Operation available without the
process unit)
161 Code No.111 function OFF 1 (*1)
112 Developer unit motor-K ON
(Operation available without the
process unit)
162 Code No.112 function OFF 1
113 Developer unit motor-YMC ON
(Operation available without the
process unit)
163 Code No.113 function OFF 1
114 Developer unit mixer motor-K ON 164 Code No.114 function OFF 1
115 Developer unit mixer motor-YMC ON 165 Code No.115 function OFF 1
116 Transfer belt motor ON
(Operation available without the
process unit)
166 Code No.116 function OFF 1(*2)
[0][3]
[POWER]
[POWER] OFF/ON
(Exit)
[START]
(Code)
Operation
ON
Stop
code
Operation
OFF
[START]
[0][3]
[POWER]
[POWER] OFF/ON
(Exit)
[START] [CLEAR]
Operation
One direction
Test mode
standby
(Code)
[0][3]
[POWER]
[POWER]
OFF/ON
(Exit)
(Code)
[START] [START]
Operation
ON
Test mode
standby
[CLEAR]
Operation
OFF
[0][3]
[POWER]
[POWER] OFF
[START]
(Code)
