© 2008-2011 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5520C/6520C/6530C
REPLACEMENT OF PC BOARDS/HDD
7 - 5
7.1.6 LGC board (LGC)
(1) Take off the rear cover.
 Service Manual “3.5.18 Rear cover”
(2) Disconnect 28 connectors.
Note:
When installing, be sure to connect the flat
cables at the proper positions.

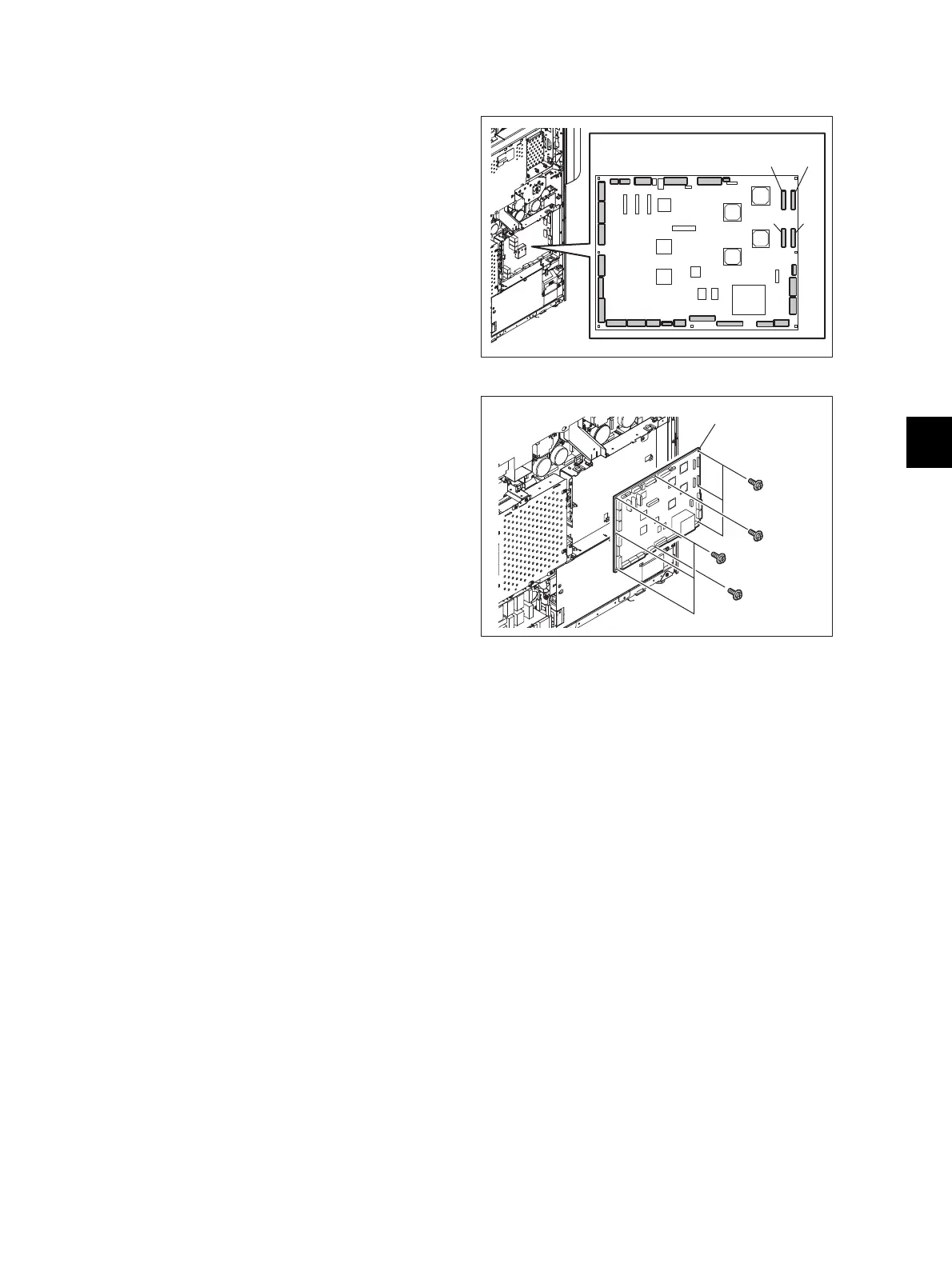

Fig. 7-12
(3) Remove 8 screws and take off the LGC
board.
Fig. 7-13
4C
3Y
1K
2M
LGC board
