Toshiba e-STUDIO6520c User Manual

e-STUDIO5520C/6520C/6530C © 2008-2011 TOSHIBA TEC CORPORATION All rights reserved
REPLACEMENT OF PC BOARDS/HDD
7 - 14

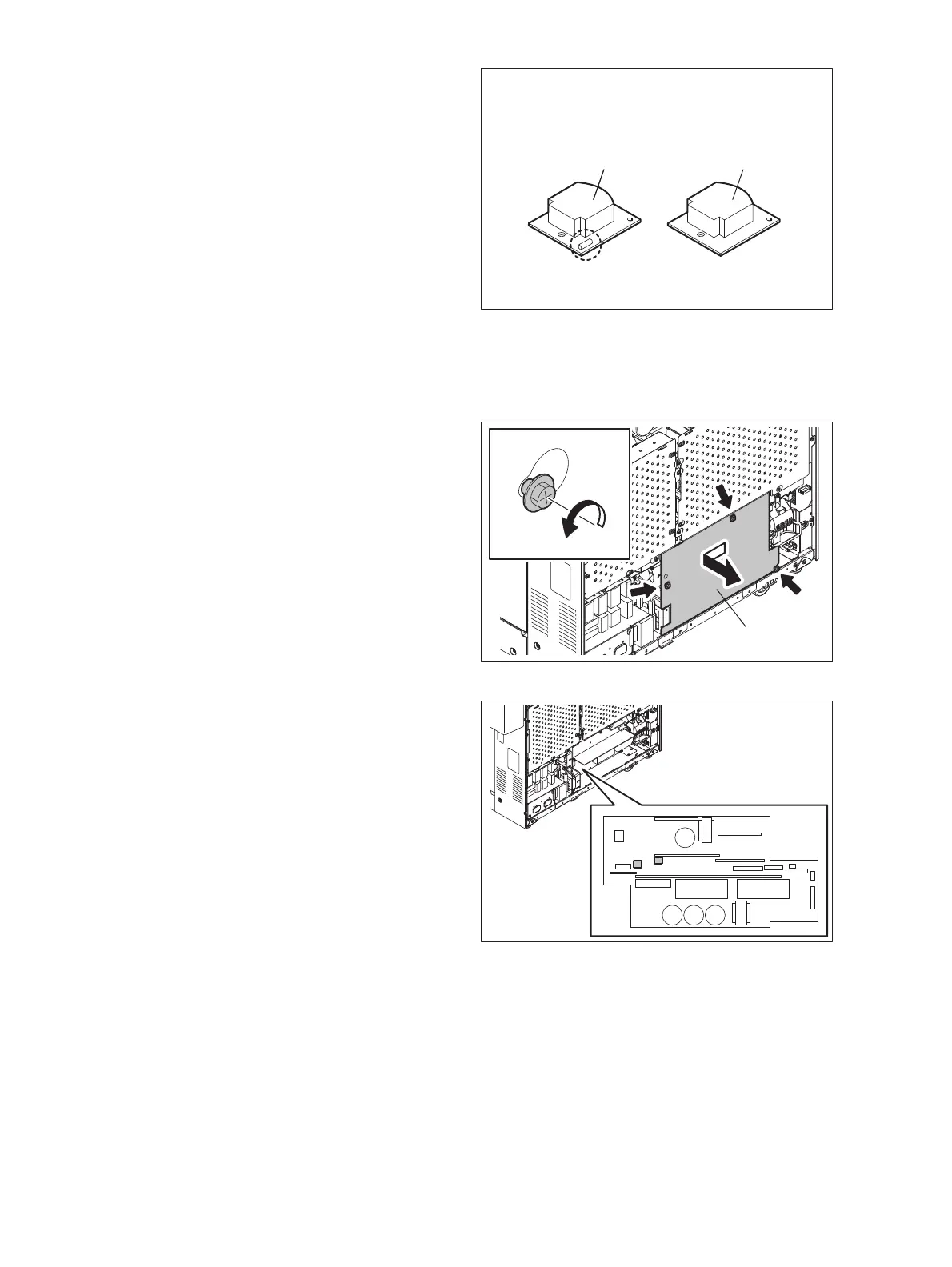

7.1.14 Switching regulator (PS)
Note:
The shape of the SRAM board for the SYS
board differs from the one for the LGC board.
Be sure to assemble the correct SRAM
board.
Fig. 7-39
(1) Take off the rear cover.
 Service Manual “3.5.18 Rear cover”
(2) Take off the PSU cover.
Fig. 7-40
(3) Disconnect 2 connectors.
Fig. 7-41
SRAM board
<for SYS board>
SRAM board
<for LGC board>
PSU cover
