REPLACEMENT OF PC BOARDS/HDD

7 - 10

7.1.11 HDD cooling fan (F28)

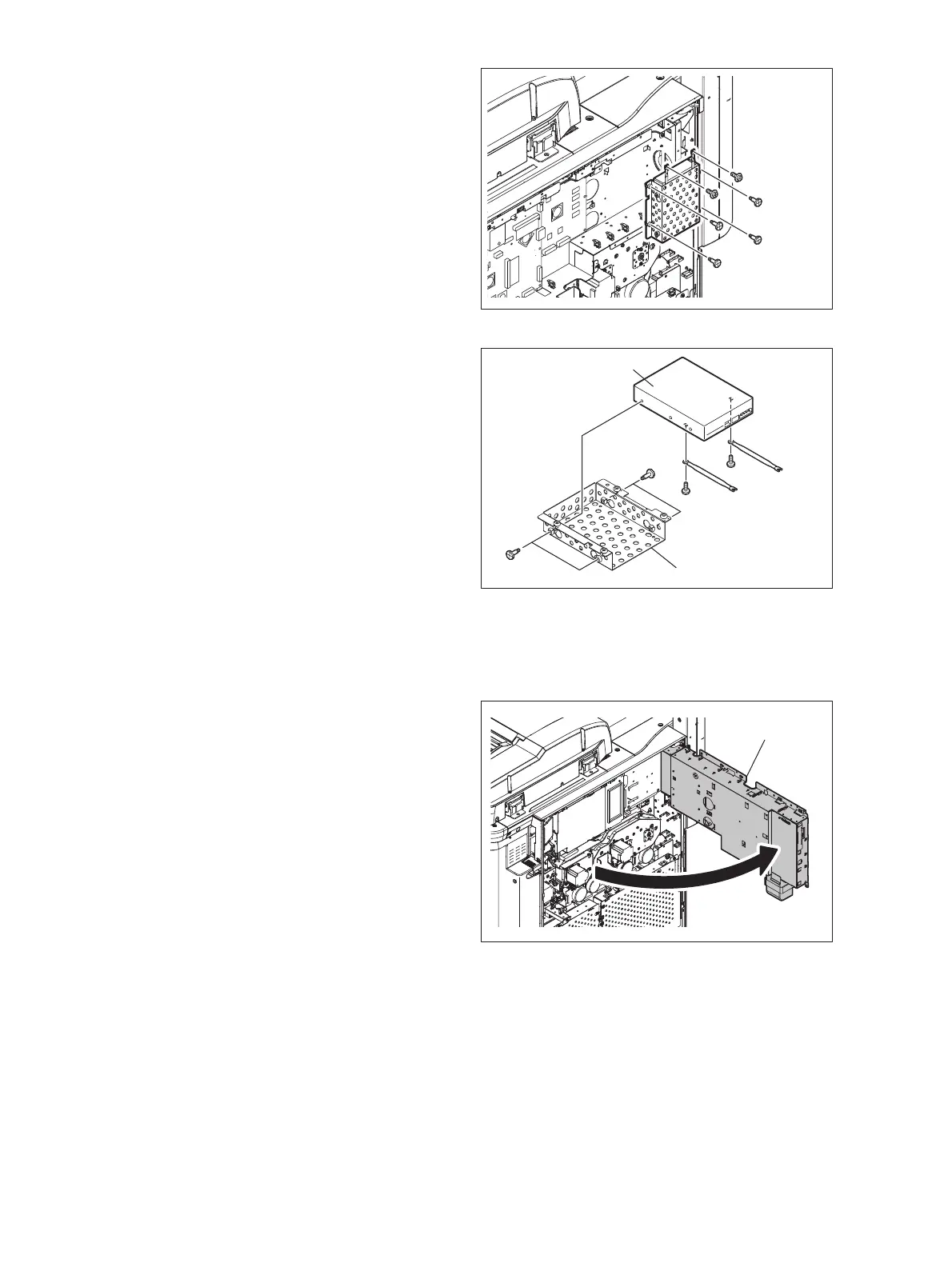

(3) Remove 6 screws and take off the hard disk.

Fig. 7-26

(4) Remove 4 screws and take off the hard disk

from the bracket.

(5) Remove 2 screws and take off the 2 cables.

Fig. 7-27

(1) Open the SYS board case for approx. 90

degrees.

 P.7-2 "7.1.3 SYS board case"

Note:

Open the board case gently during

maintenance work or similar.

Fig. 7-28

Bracket

Hard disk

SYS board case
