FIRMWARE UPDATING
8 - 32
8.3 Firmware Updating with K-PWA-DLM-320
The firmware of the equipment (scanner ROM) and the option (RADF ROM, Finisher ROM, FAX ROM)
can be updated individually by using K-PWA-DLM-320. Update the ROM data written on each board
according to the need such as the case of replacing the board.
Equipment
Options
K-PWA-DLM-320

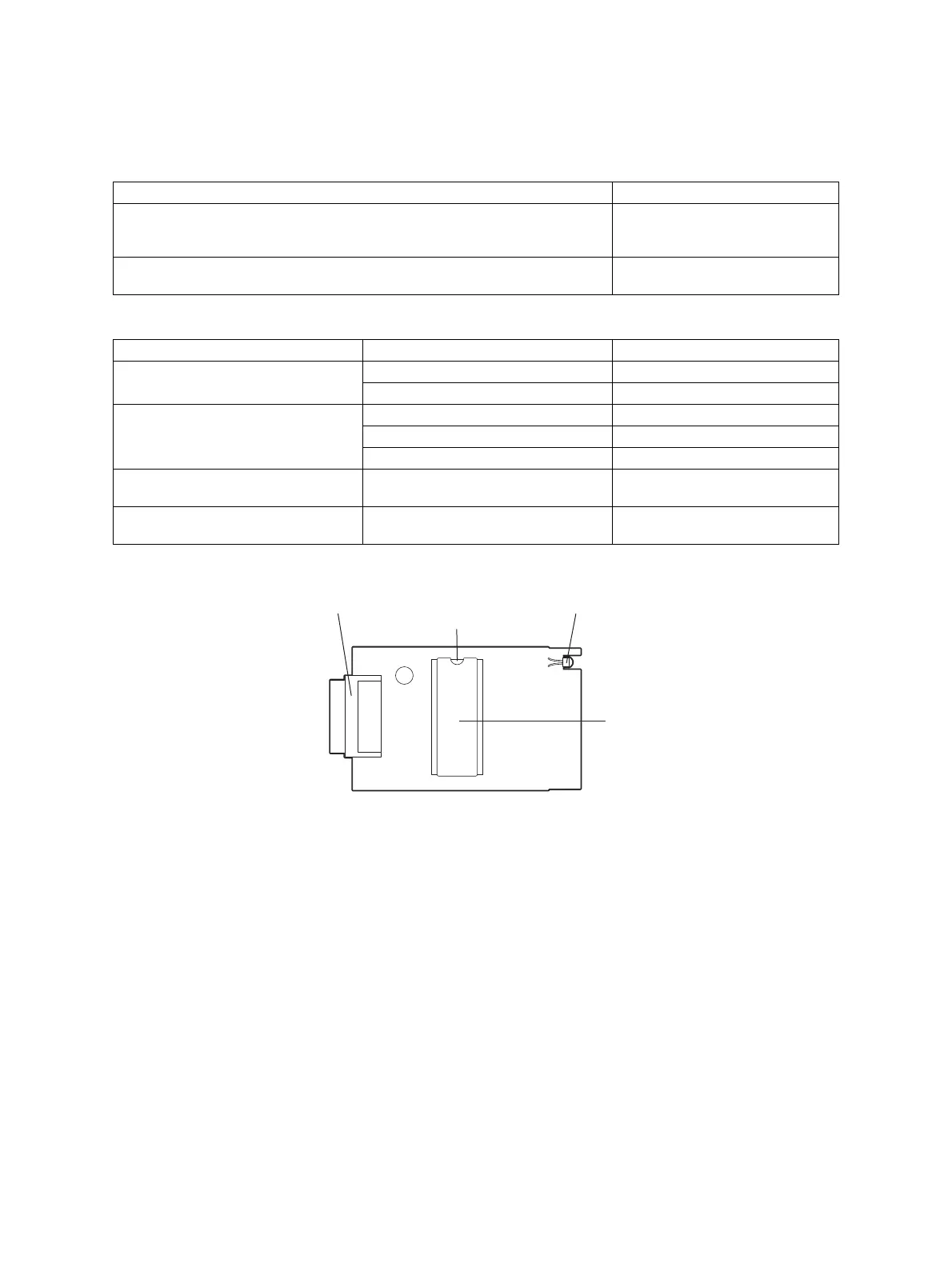

Fig. 8-26 Jig board: K-PWA-DLM-320
Important:
Pay attention to the direction of the ROM.
Firmware Stored
Scanner ROM
(Scanner firmware)
Scanning section control PC
board
(SLG board)
Reversing Automatic Document Feeder (RADF)
(RADF firmware)
RADF control PC board
(RADF board)
Model name Firmware Stored
Finisher
(MJ-1103)
Finisher firmware Finisher control PC board
Converter firmware LGC board
Saddle Stitch Finisher
(MJ-1104)
Finisher firmware Finisher control PC board
Saddle stitcher firmware Saddle stitcher PC board
Converter firmware LGC board
Hole Punch Unit
(MJ-6102)
Hole punch unit firmware Hole punch control PC board
Fax Unit
(GD-1270)
Fax unit firmware FAX board
Connector Mark for ROM
installation direction
ROM
LED
