REPLACEMENT OF PC BOARDS/HDD
7 - 9
7.1.10 Hard disk (HDD)
(3) Remove 2 harness clamps on the upper side
of the case. Release harness from 2 clamps
with a lock.

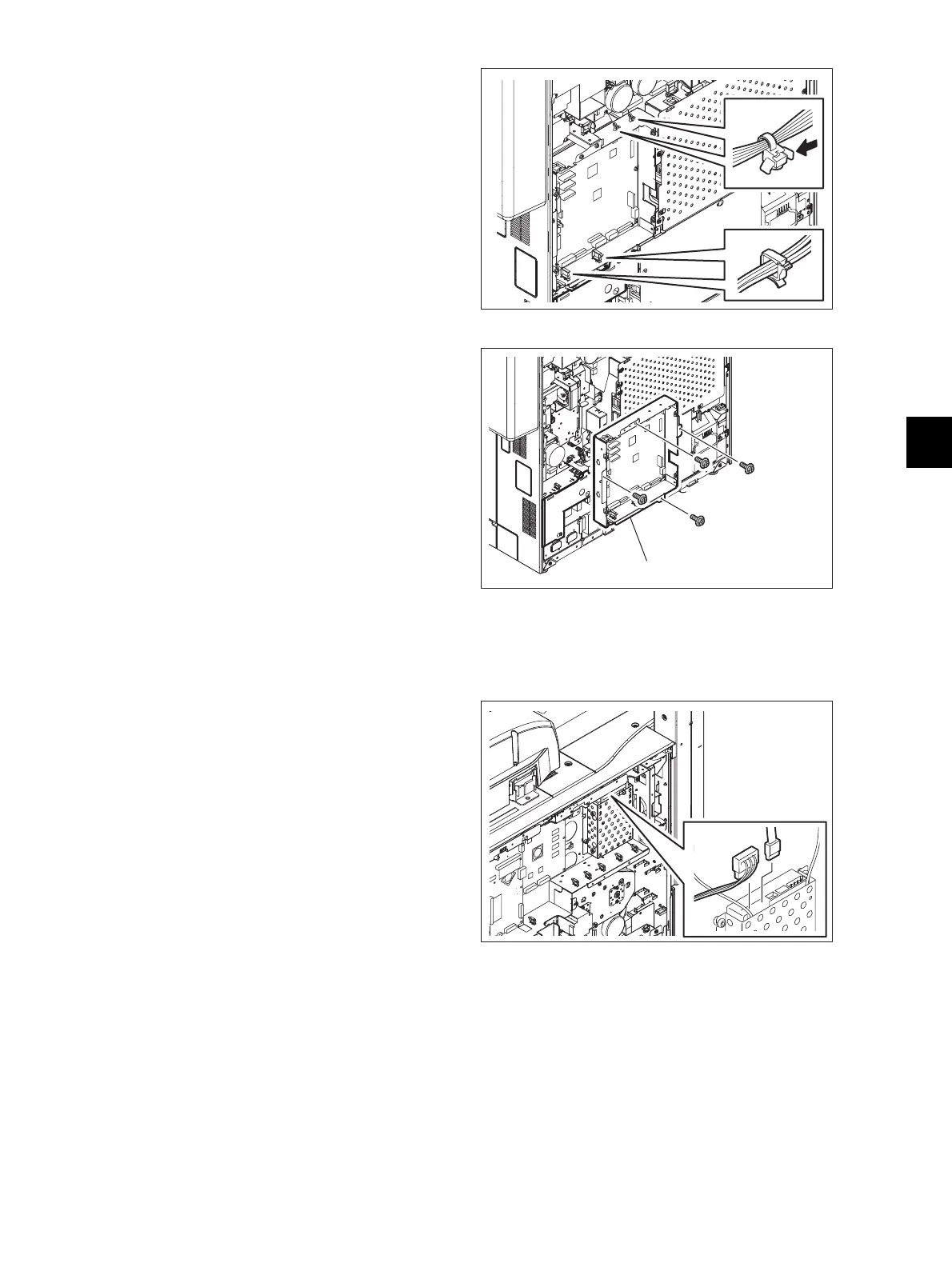

Fig. 7-23
(4) Remove 4 screws and take off the PFC
board case.
Note:
The removed PFC board case can be
hooked on the equipment temporarily.
Fig. 7-24
(1) Take off the rear cover.
 Service Manual “3.5.18 Rear cover”
(2) Disconnect 2 connectors.
Fig. 7-25
PFC board case
