e-STUDIO5520C/6520C/6530C © 2008-2011 TOSHIBA TEC CORPORATION All rights reserved
REPLACEMENT OF PC BOARDS/HDD
7 - 8

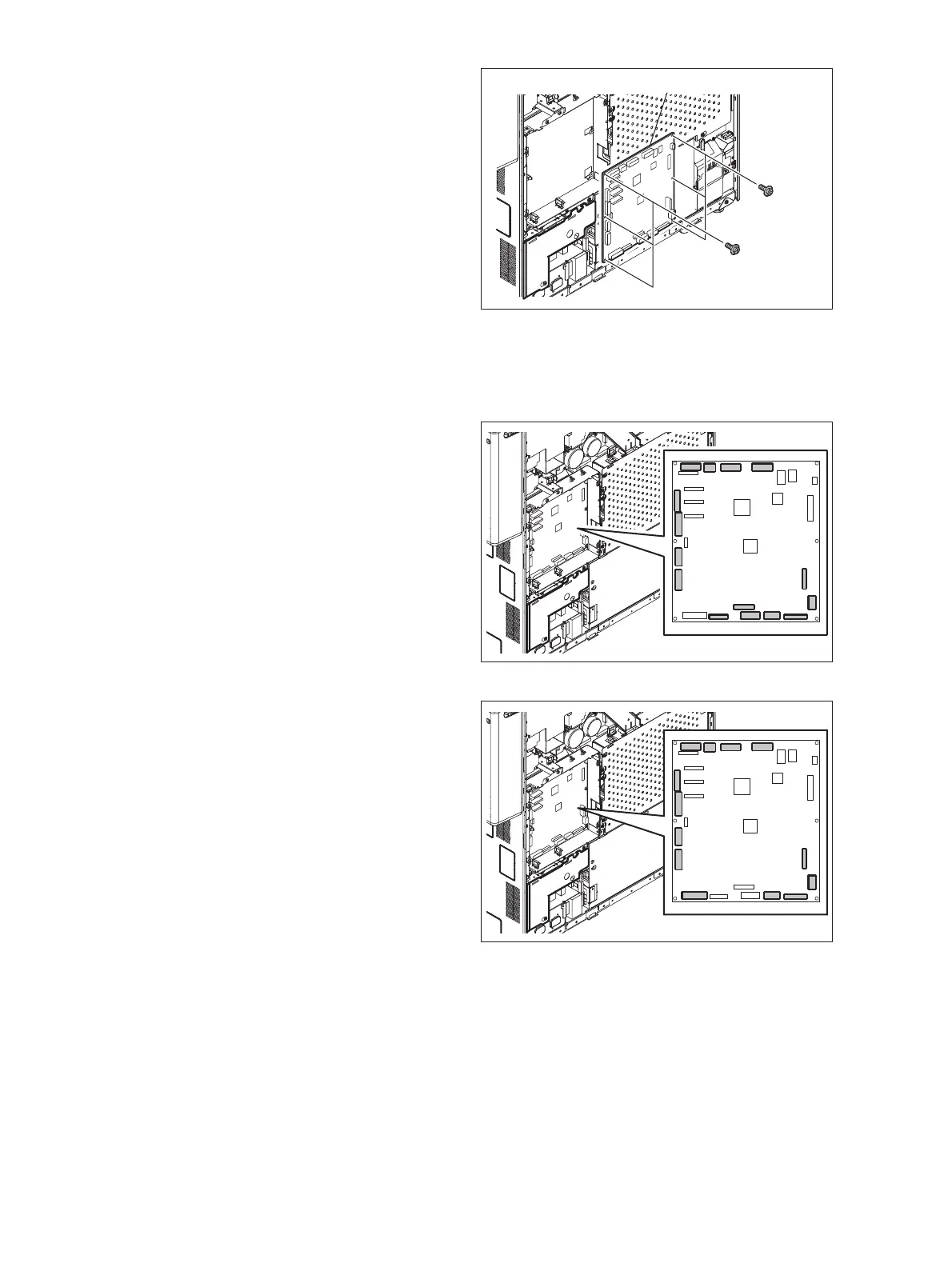

7.1.9 PFC board case
(3) Remove 6 screws and take off the PFC
board.
Fig. 7-20
(1) Take off the rear cover.
 Service Manual “3.5.18 Rear cover”
(2) Disconnect 15 connectors. (in case of a 4-
drawer model)
Fig. 7-21
Note:
If the equipment is a tandem LCF-model,
disconnect 13 connectors.
Fig. 7-22
PFC board
