REPLACEMENT OF PC BOARDS/HDD
7 - 12

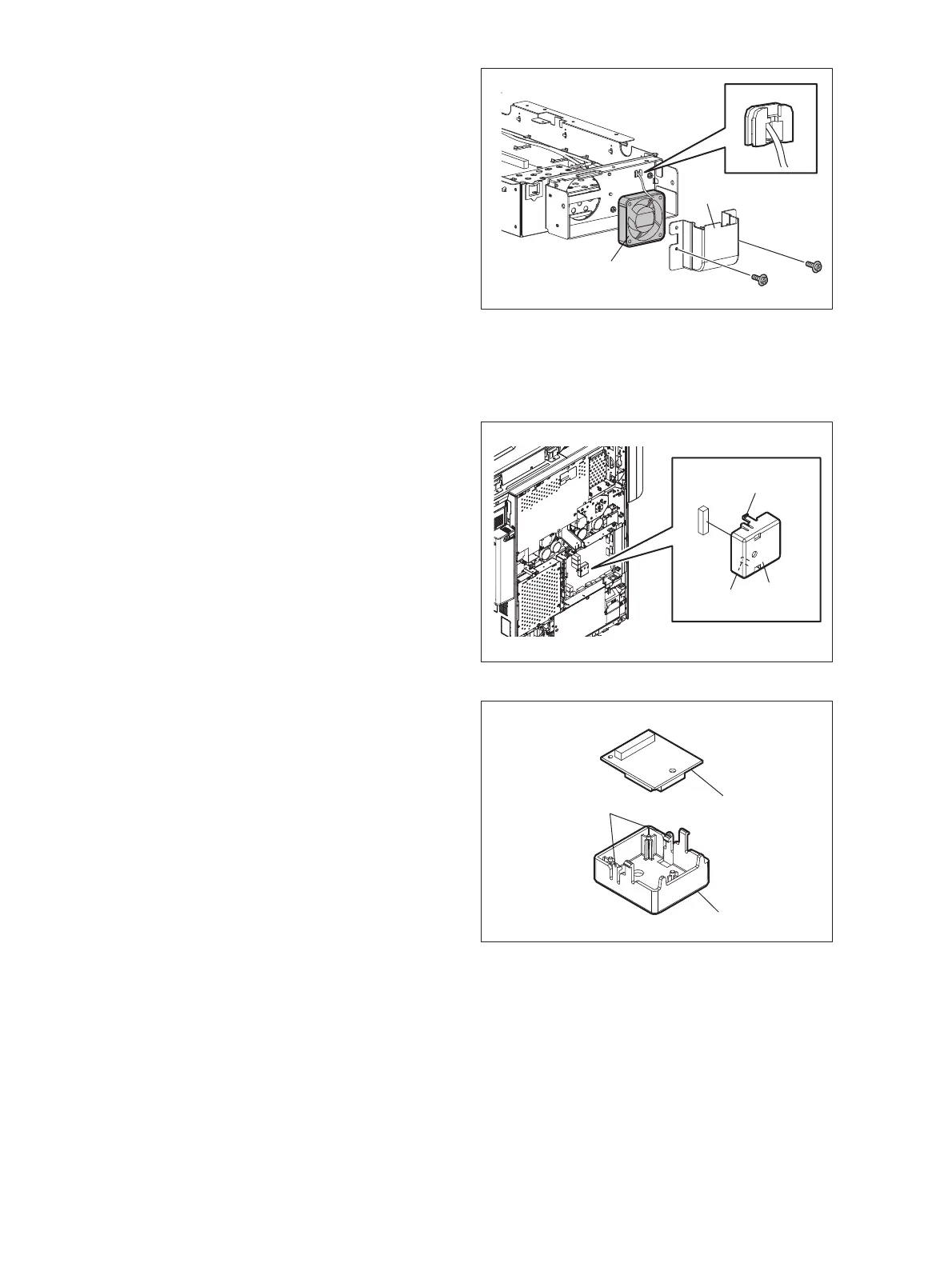

7.1.12 SRAM board <for LGC board> (RAM-L)
(7) Release harness from 1 clamp.
(8) Remove 2 screws and take off the HDD
cooling fan and duct.
Fig. 7-33
(1) Take off the rear cover.
Service Manual “3.5.18 Rear cover”
(2) Release 2 latches and take off the SRAM
board for the LGC board with the case.
Fig. 7-34
(3) Release 2 latches and take off the SRAM
board for LGC board from the case.
Fig. 7-35
HDD cooling fan
Duct
Latch
Latch
Case
Latch
SRAM board
<for LGC board>
Case
