7
© 2008-2011 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5520C/6520C/6530C
REPLACEMENT OF PC BOARDS/HDD
7 - 13

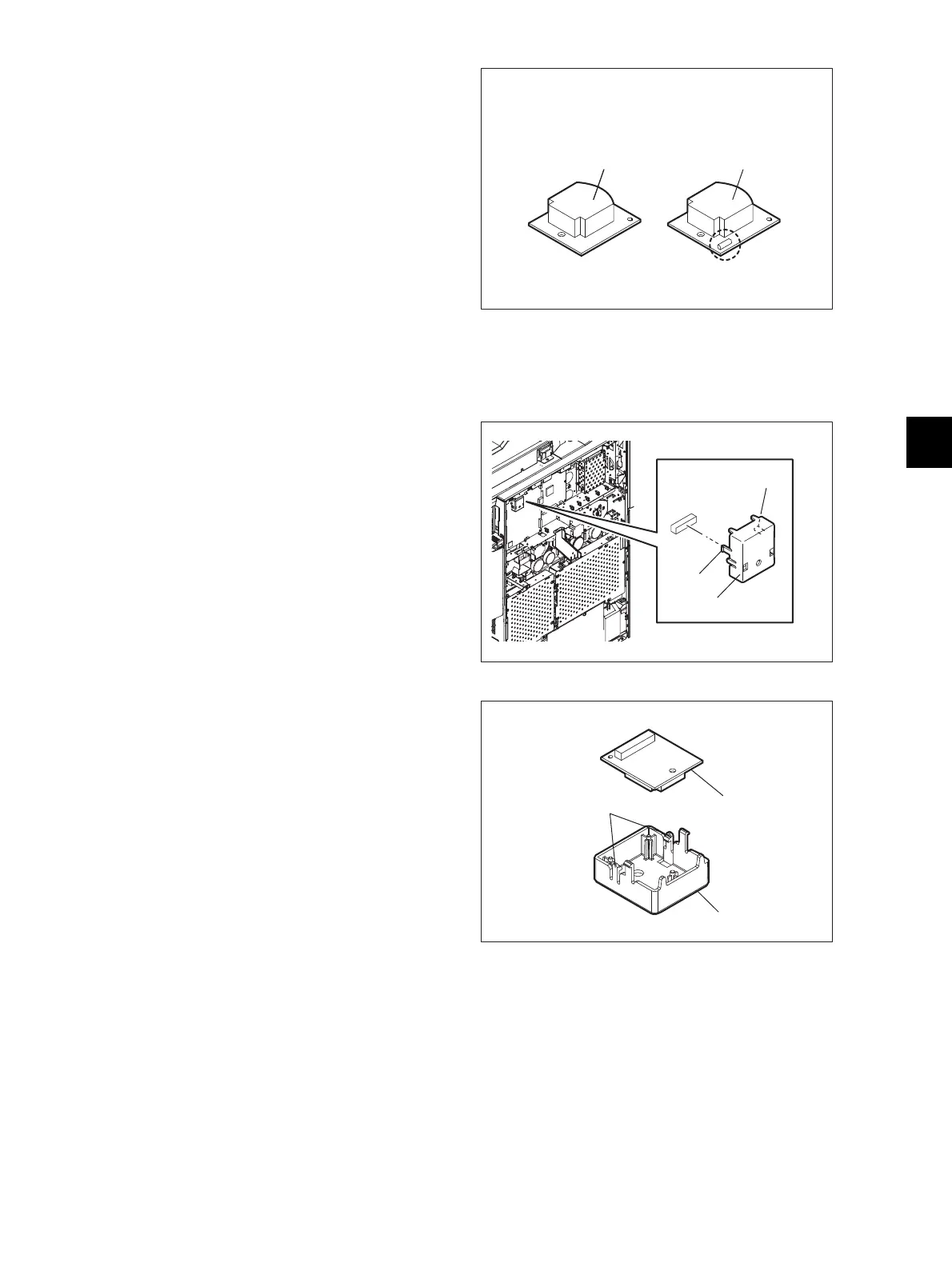

7.1.13 SRAM board <for SYS board> (RAM-S)
The shape of the SRAM board for the LGC
board differs from the one for the SYS board.
Be sure to assemble the correct SRAM
board.
Fig. 7-36
(1) Take off the SYS board cover.
 P.7-1 "7.1.1 SYS board cover"
(2) Release 2 latches and take off the SRAM
board for the SYS board with the case.
Fig. 7-37
(3) Release 2 latches and take off the SRAM
board for SYS board from the case.
Fig. 7-38
SRAM board
<for LGC board>
SRAM board
<for SYS board>
Latch
Case
Latch
Latch
SRAM board
<for SYS board>
Case
To Next Page
