Bitfield outProtoMask

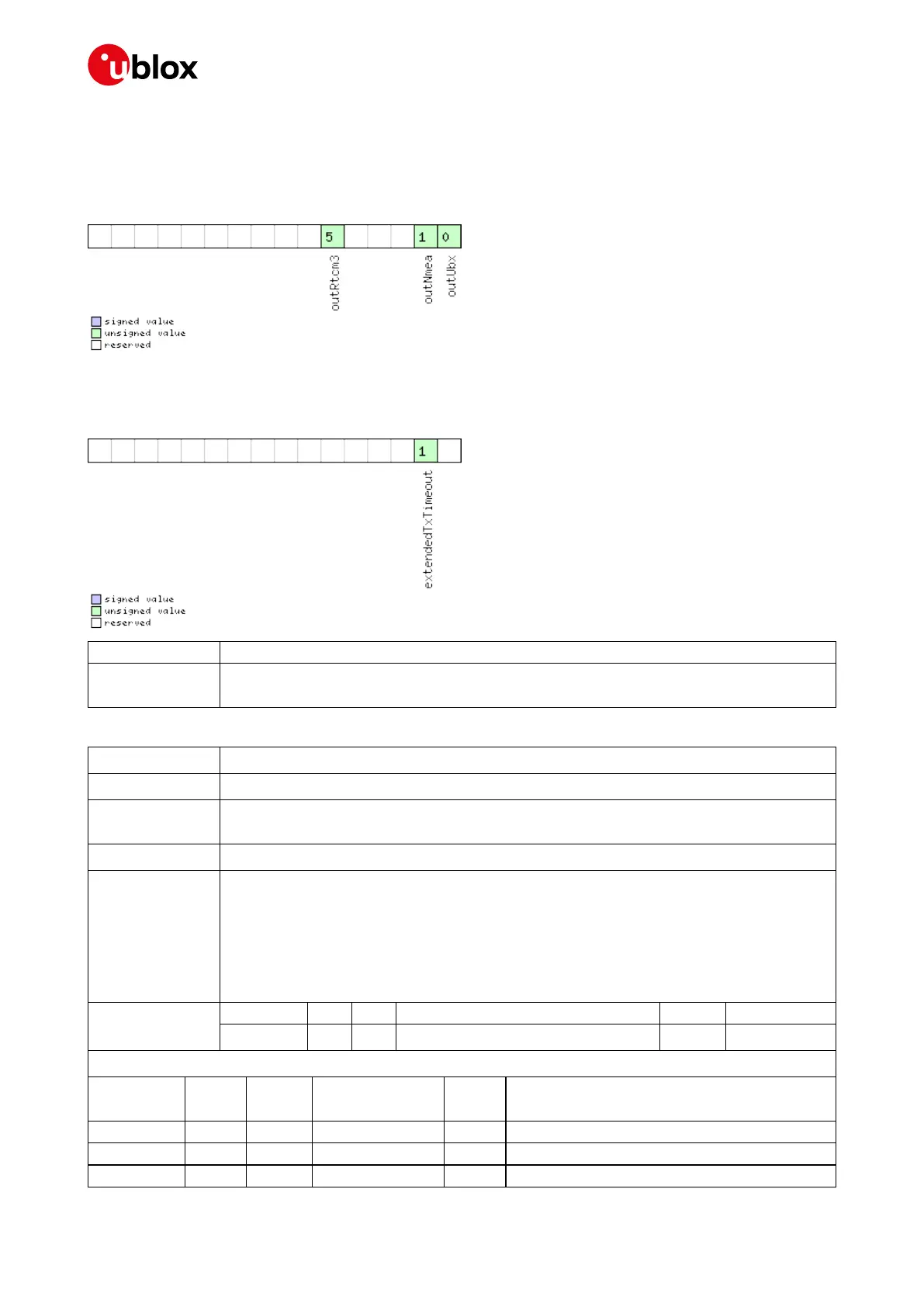

This graphic explains the bits of outProtoMask
Bitfield flags
This graphic explains the bits of flags
Name Description
extendedTxTim
eout
Extended TX timeout: if set, the port will timeout if allocated TX memory >=4 kB and no activity for 1.5s.
5.9.17.5 Port Configuration for DDC Port
Message
UBX-CFG-PRT
Description
Port Configuration for DDC Port
Firmware
Supported on:
• u-blox 9 with protocol version 27
Type
Get/Set
Comment
This message is deprecated in protocol versions greater than 23.01. Use UBX-CFG-
VALSET, UBX-CFG-VALGET, UBX-CFG-VALDEL instead.
See the Legacy UBX Message Fields Reference for the corresponding configuration item.
Several configurations can be concatenated to one input message. In this case the payload
length can be a multiple of the normal length (see the other versions of CFG-PRT). Output
messages from the module contain only one configuration unit.
Header Class ID Length (Bytes) Payload Checksum
Message Structure
0xB5 0x62 0x06 0x00 20
see below
CK_A CK_B
Payload Contents:
Byte Offset Number
Format
Scaling Name Unit Description
0 U1 - portID - Port Identifier Number (= 0 for DDC port)
1 U1 - reserved1 - Reserved
2 X2 - txReady - TX ready PIN configuration (see graphic below)
UBX-18010854 - R04 Advance Information Page 71 of 259

u-blox ZED-F9P Specifications

General

GNSS	GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Concurrent GNSS	4
RTK	Yes
Velocity Accuracy	0.05 m/s
Time Pulse Accuracy	30 ns
Operating Temperature	-40°C to +85°C
Supply Voltage	2.7 V to 3.6 V
Channels	184
Frequency Bands	L1, L2
Dimensions	22 mm x 17 mm x 2.4 mm
Interfaces	UART, SPI, I2C
