D292144.7.fm Taper Setup
Chapter 4: Machine Setup 4- 19

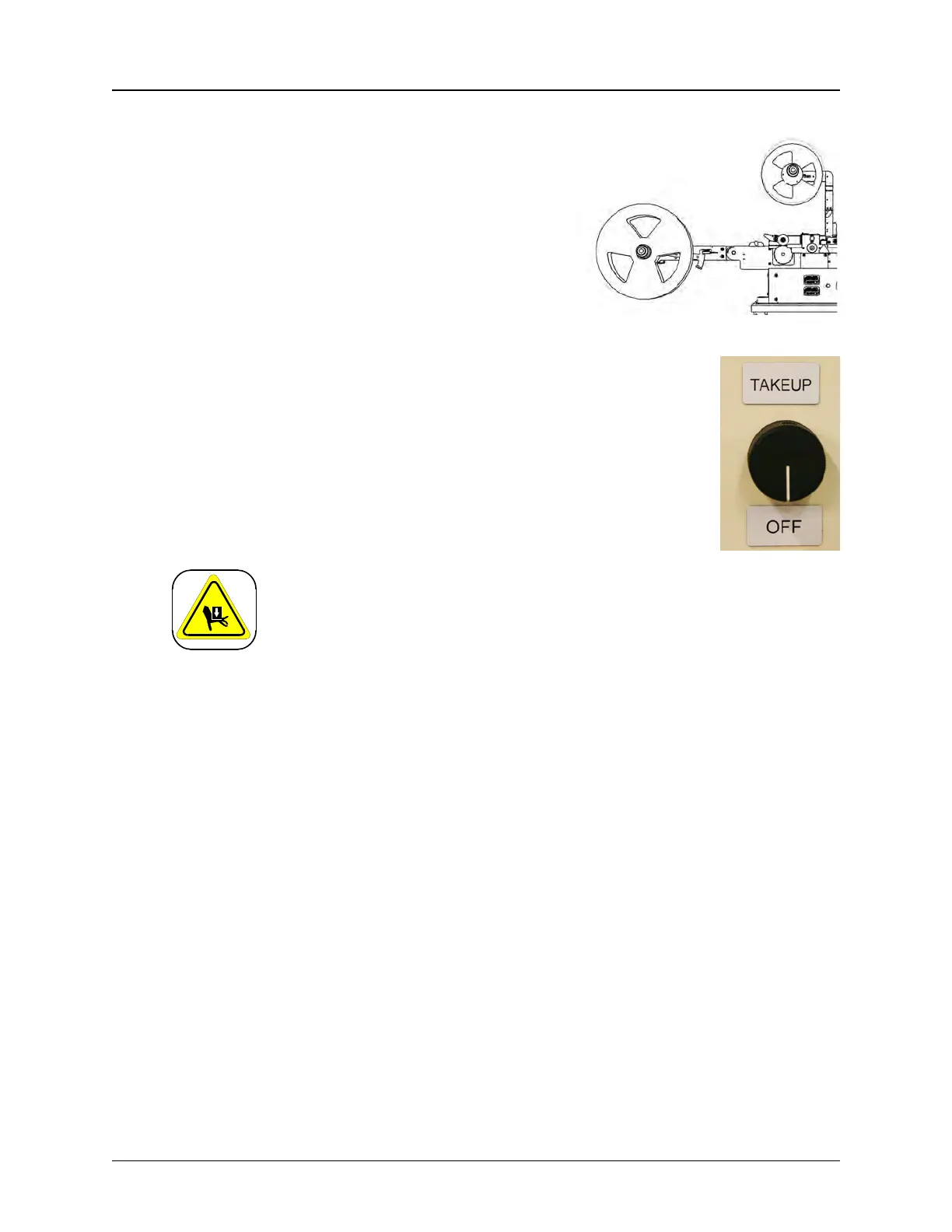

TAKE-UP REEL
1. Mount an empty take-up reel on the take-up
reel spindle. The width of the reel must
match the width of the carrier tape and its
diameter should be large enough to
accommodate the number of components in
the taping job.
2. The Take-up Tension Control is located on
the front right side of the TM-500 by the
Carrier Tape Arm. Adjust the take-up
tension to a rate that suits the weight of the
parts that are being processed, adjusting it
so the take-up motor pulls the sealed tape
gently forward
Mechanical Hazard!
Avoid placing fingers between the carrier tape and the Take-up Reel
when the TM-500 is in operation. Pinching or entrapment may occur if
safety precautions are not observed.
Step 5:
Setup
Output
TA KE -U P
