Safety Features D292144.2.fm xi

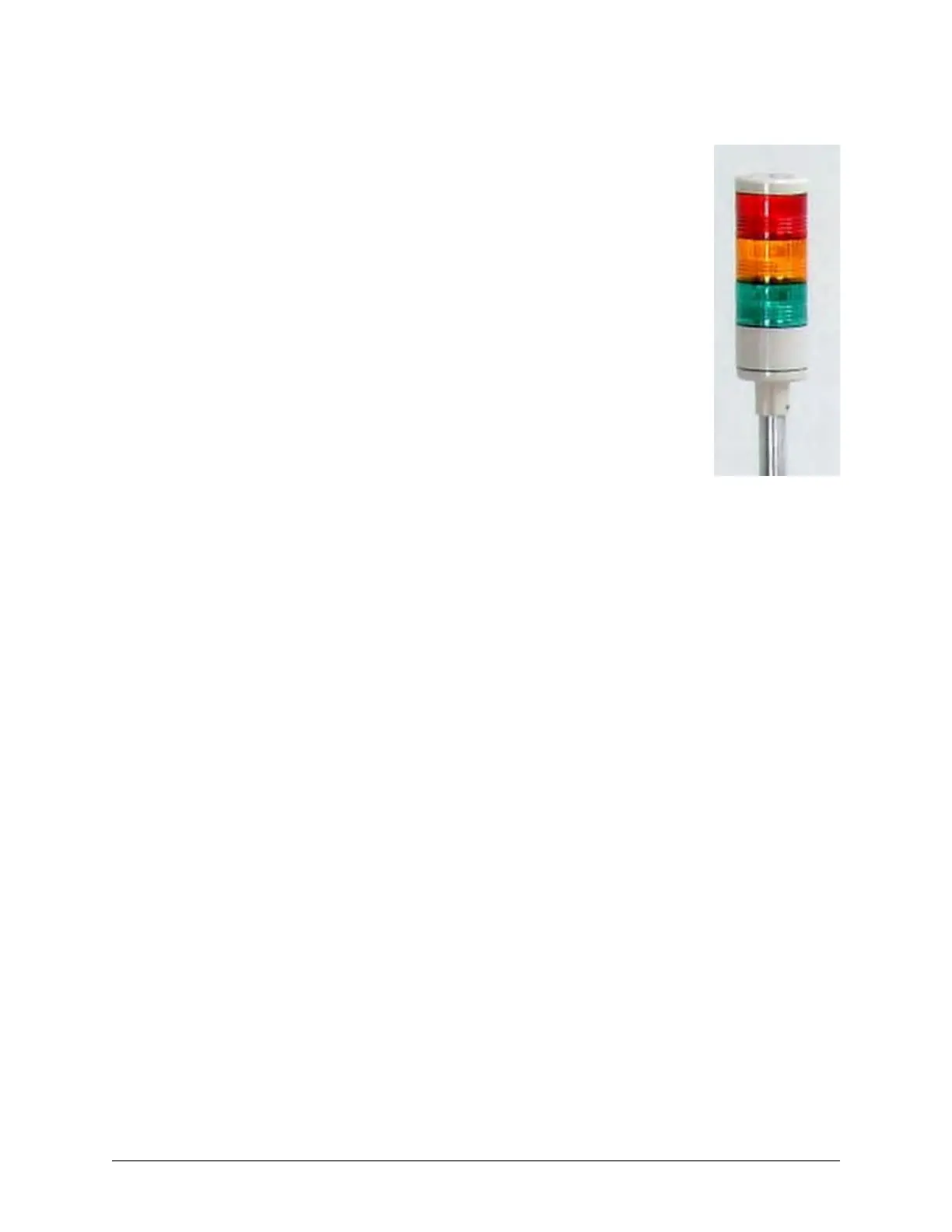

To w e r L i g h t
The tower light feature allows taping machine operators and production
supervisors in determining the operational state of the taping machine at a
glance.
Color Codes
Green
A solid green light indicates the machine is running a job.
Red
A flashing red light indicates that the machine is on but not running.
Green + Amber
The combination of a solid green light and a solid amber light indicate the
machine is at the end of a job and is in the process of creating a leader.
Red + Amber
The combination of a blinking red light and a blinking amber light indicates
the machine is at the end of a job and attempting to create a leader, how-
ever something has interfered with the process, stopping the machine.
A blinking red light and a solid amber light indicates the machine is at the end of a job, the leader
creation sequence is complete and the TM-500 is ready for the next process.
