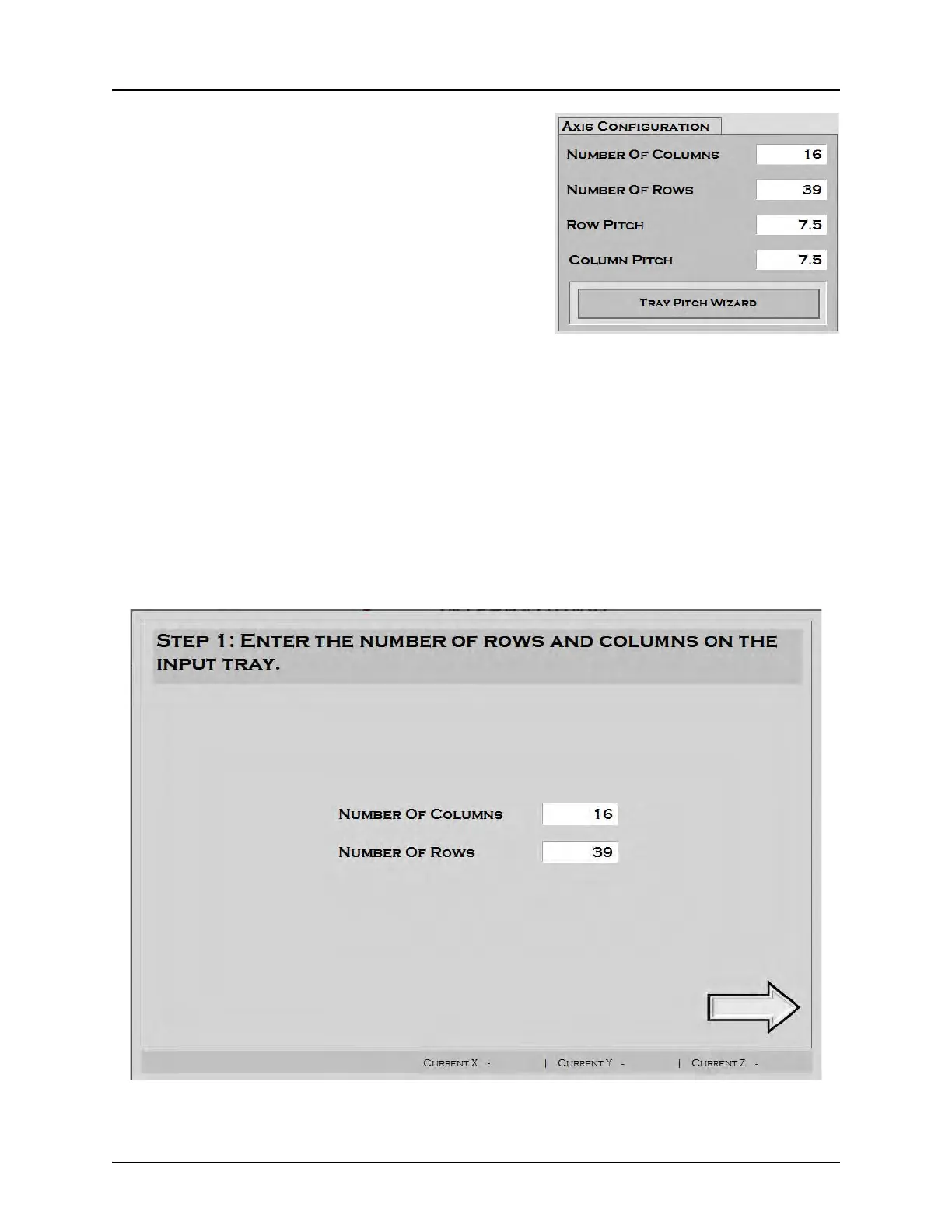

2. Axis Configuration
Number of Columns is the number of columns in the
tray.
Number of Rows is the number of rows in the tray.
Note: Rows run parallel to the front of the
machine. Columns run perpendicular to the
front of the machine. The number of rows will
always be greater than the number of columns
in a tray.
Row Pitch is the distance between tray rows in millimeters. This is the measurement between
the center of one tray row to the center of the next.
Column Pitch is the distance between tray columns in millimeters. This is the measurement
between the center of one tray column to the center of the next.
Note: If the row or column pitch values are already known, just click the field to manually
enter Row Pitch or Column Pitch.
When Teach Tray Pitch is selected, the Tray Pitch Wizard opens.
Pitch Wizard Screen 1
