Vertical Express ICON 32 - Freight Door Cabinet Assembly (2104 AF)

Replacement Parts Service Information Section
©Vertical Express 5-8 Printed in USA November 2019

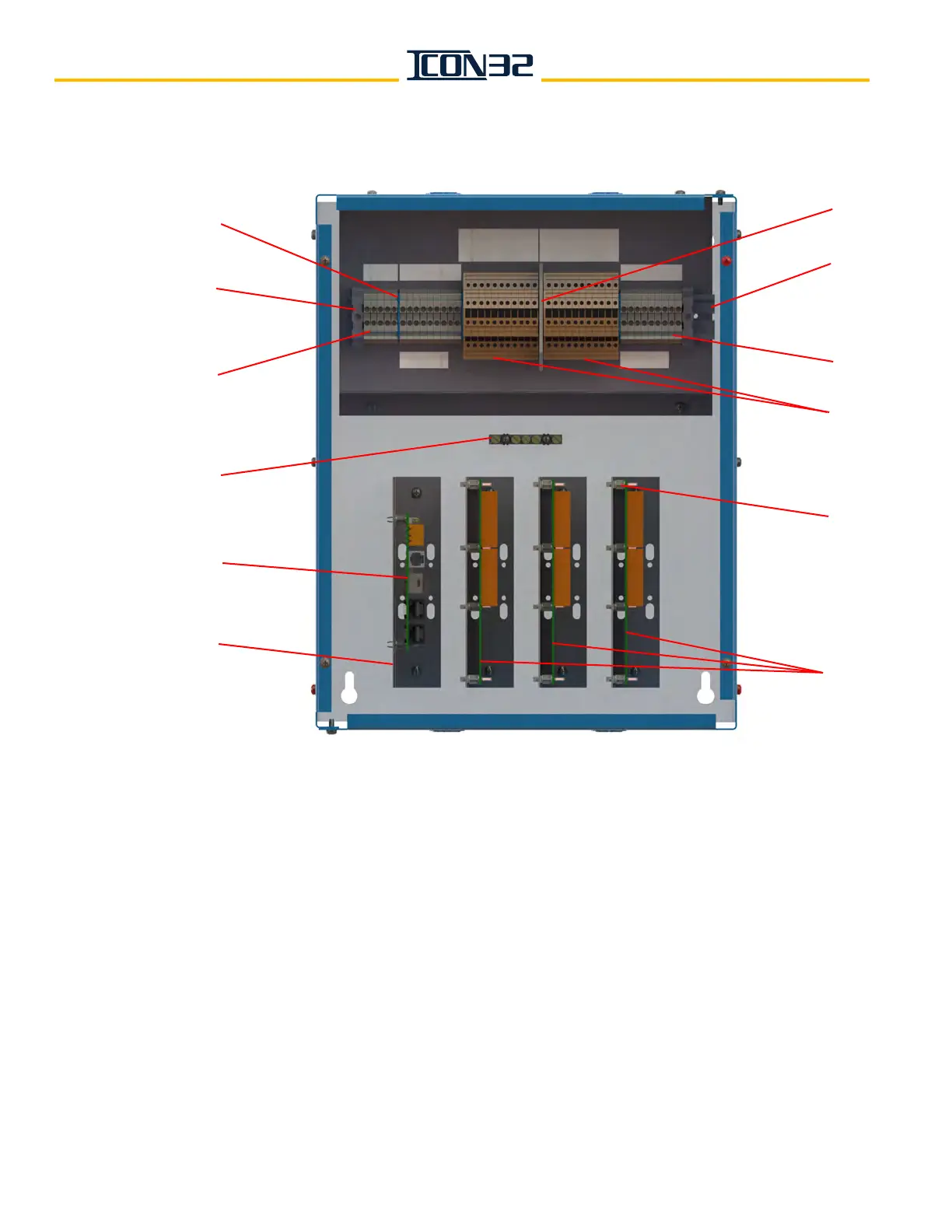

Freight Door Cabinet Assembly (2104AF)
ITEM PRINT NO. DESCRIPTION
1 684AD14 DIN Rail, 11
" Long
2 834BX1 Terminal Block, DIN Rail, 5.2mm Wide
3 834CA1 Terminal Block, DIN Rail
4 196YF1 Terminal Bracket
5 834AF2 Terminal Block, DIN Rail End Section
6834CD1 Terminal Block, DIN Rail Partition
7 834BW1 Terminal Block, DIN Rail Clamp
8 834AN5 Terminal Block, Panel,
5
/
16
", 5-Position
9 6300VV1 CAN Node (CN) Board
10 6300LN1 LON High Voltage I/O Board
11 786BH3 Standoff, Card, Non-Locking,
5
/
32
" X
3
/
16
" X
3
/
8
" Long
12 220DK500 Cable Assembly, Modular, CAT-5 8-8, 6
" Long
220DK1 Cable Assembly, Modular, CAT-5 8-8, 12
" Long
13 200CCN001 CNA Freight Door Kit
6
1
2
3
11
5
7
2
8
9
4
10
