Vertical Express ICON 32 - Typical Front Conduit;Duct Layout

INSTALLATION
Vertical Express Product Manual 1-23 88600 v.1.0
Installation Section Hoistway Wiring

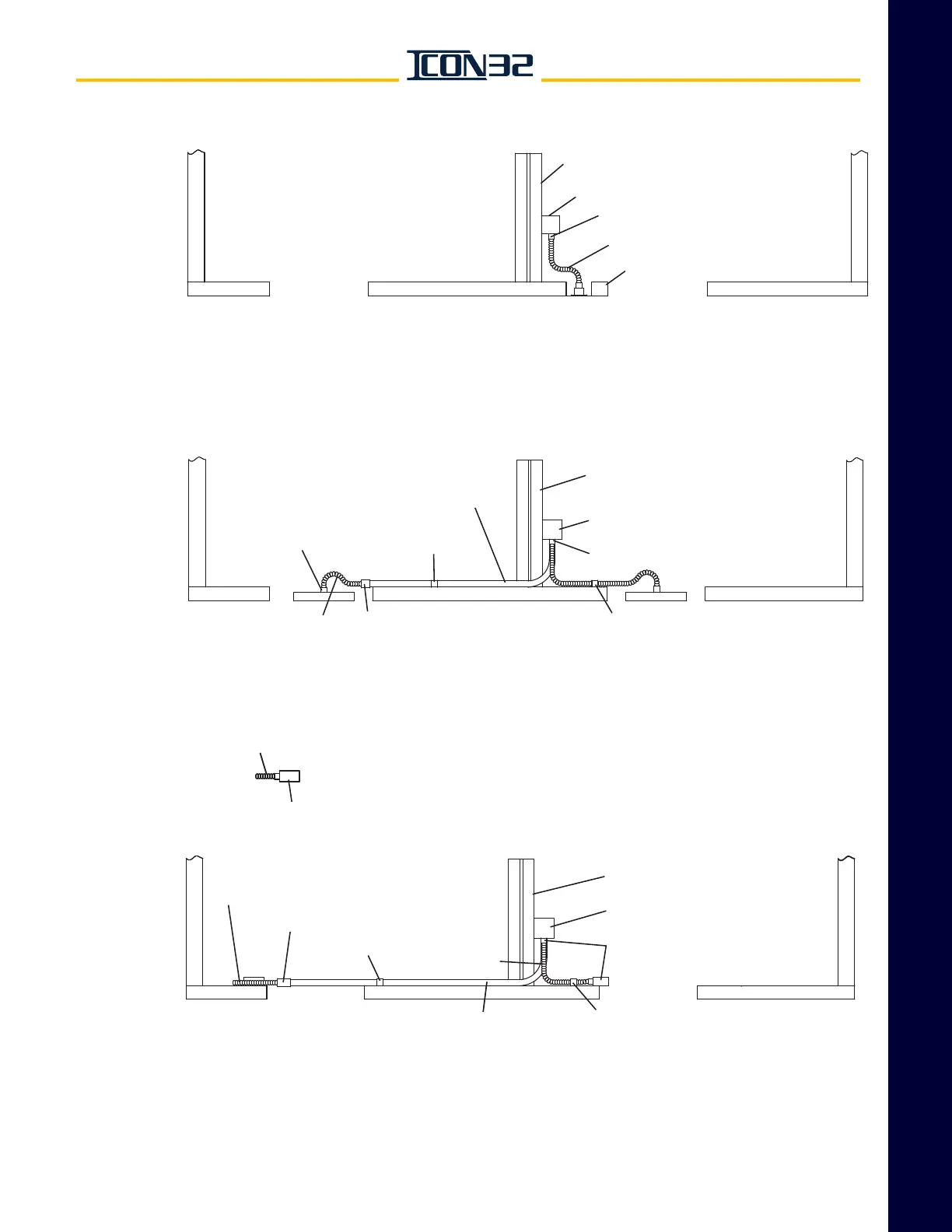

Typical Front Conduit/Duct Layout
Hall Station,
Fire Service
Switch
Installation
Hall Lanterns,
Position
Indicators
Installation
Door Interlock
Installation
Divider Beam
2½" X 4" Wireway
½"
Straight Connector (Flex)
½" Flex Conduit
½" Straight Connector
½" EMT Conduit with
½" Straight Connector (EMT)
½" or ¾" Clamp
½" Combination Coupling ½" Flex Conduit
½" Straight
Connector (Flex)
Divider Beam
2½" X 4" Wireway
½" Straight Connector (Flex)
¾" Clamp
½" Flex Conduit
½" Straight Connector (Flex)
½" Flex Conduit
½" Combination Coupling
½" Clamp
Divider Beam
2½" X 4" Wireway
½" Straight Connector (Flex)
½" Flex Conduit
¾" Clamp
½" EMT Conduit with ½" Straight Connector (EMT)
FRONT VIEW
