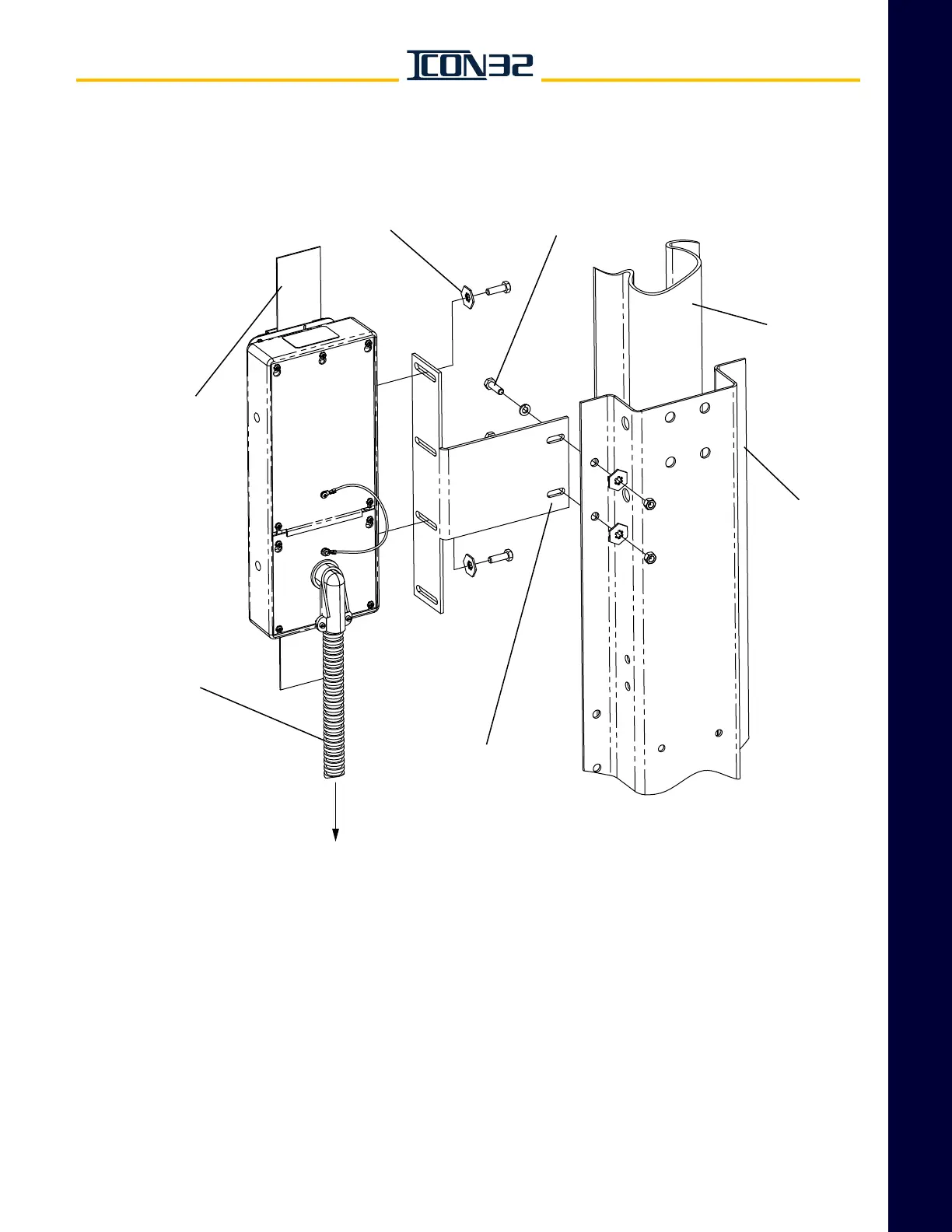

Notes:
1. For opposite hand mounting, move bracket to other side of selector box.
2. When car is at top of hoistway, align selector with tape. The sensor board position is adjustable.
3. Use 196WT1 stile selector bracket with formed rails.
Selector Harness
To Car Header
Formed Rail
196WT1 Stile Selector Bracket
Move bracket to rail side
of stile
flange, if necessary.
Selector Tape
Stile
Use provided fastener package 200MR2
to attach the bracket to the selector tape.
Use provided fastener package 200MR1
to attach the bracket to the stile.
To Next Page
