SERVICE INFORMATION
Vertical Express Product Manual 5-23 88500 v.1.0
Service Information Section CAN Node Configuration via the Startup Wizard
Command Sequence
To properly configure the CAN Nodes, issue these commands in the order written:
TECCR, TECC.
TECCR The TECCR Command resets all online CAN nodes’ configuration. See Figure 2.

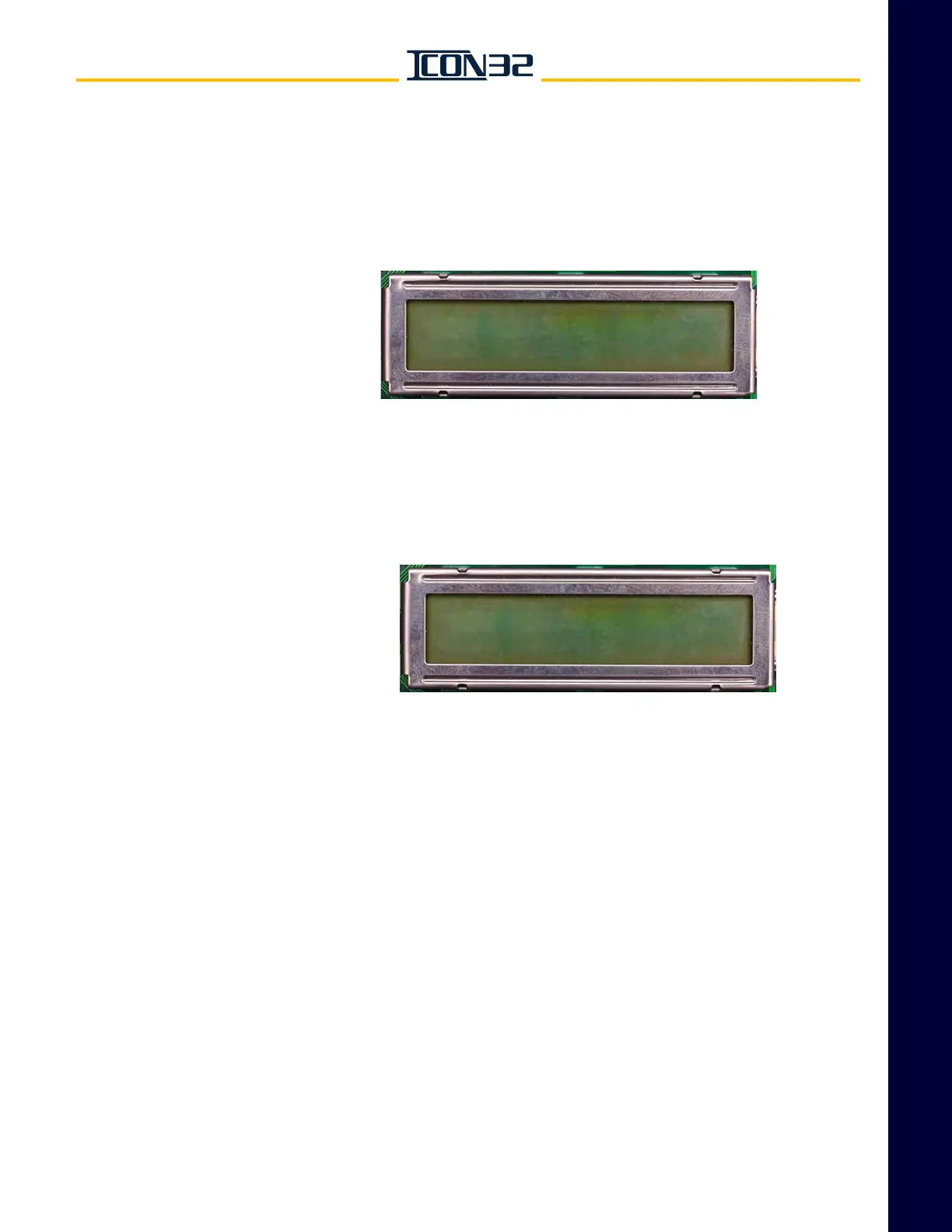

Figure 2 - TECCR Command
TECC The TECC Command configures all online CAN nodes. See Figure 3.
CAN resistive loading will affect the configuration. Before issuing a TECC Command,
check the loading for Channel 2 or Channel 3 (if used).
Figure 3 - TECC Command (appears after TECCR > ENTER)
DCN The DCN Command displays the status of all CN Cards, and has the ability to
ping specific ports to verify operation. See Figure 4 on page 5-24.
• The status of the CAN Node Cards located on either Channel 2 or Channel 3.
• Specific CN data:
– Communication status
– Node ID
– Number of ports assigned
– Specific ports assigned
Executing a DCN Command prompts the user to enter specific parameters; the
requested data appears in the UIT window. If a line is scrolling, press UP to pause
the screen, and then press UP to resume scrolling.
TECCR -
Complete, Now must TECC
this car and car 2.
TECCR - Config Reset HN/CN
UP: Next DN: Prev
