Vertical Express ICON 32 - Fire Service Cabinet (2104 AE)

SERVICE INFORMATION
Vertical Express Product Manual 5-11 88500 v.1.0
Service Information Section Replacement Parts

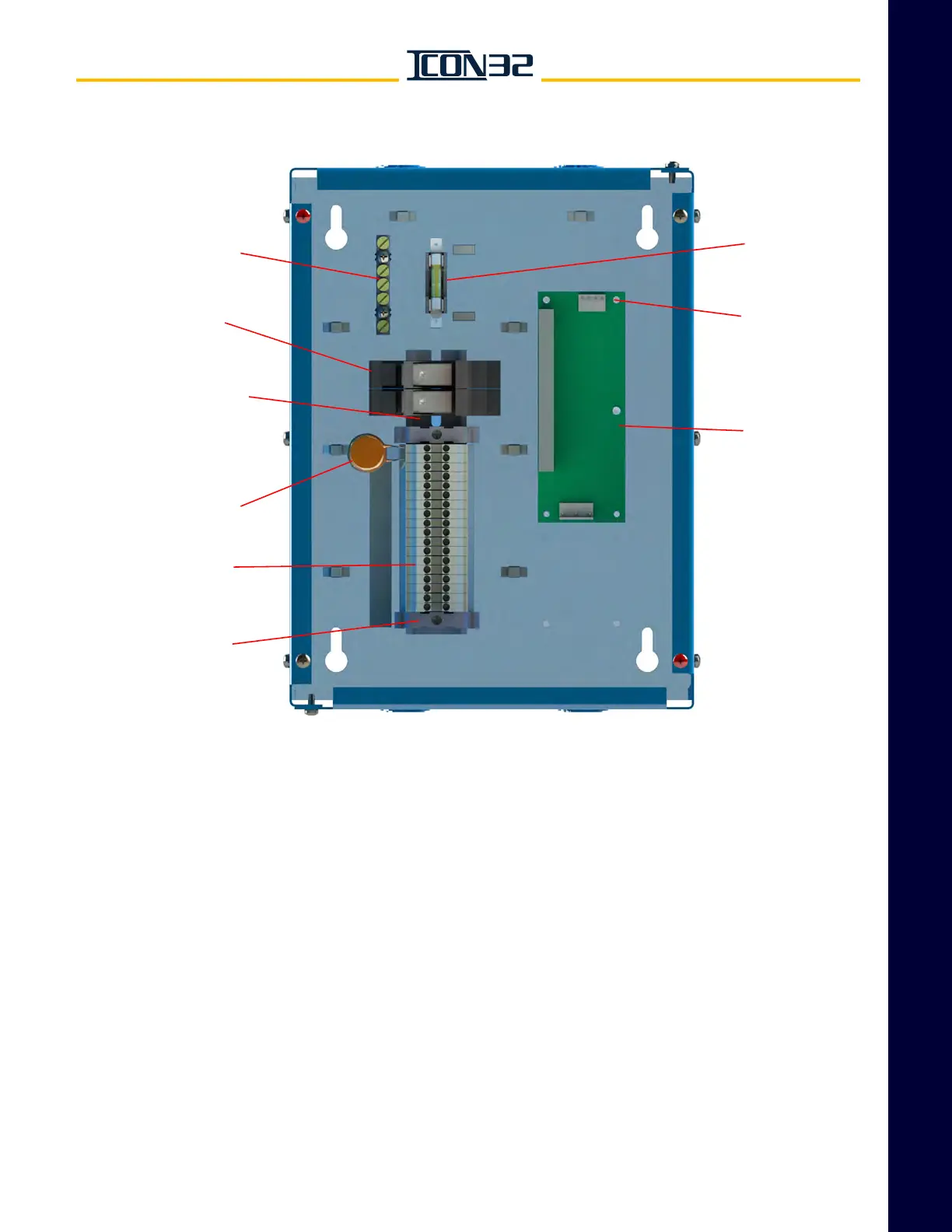

Fire Service Cabinet (2104AE)
ITEM PRINT NO. DESCRIPTION
1 804BV1 TVS Assembly, MOV, 890AD1 Tubing
2 409BR7 Fuse Panel, MDA, 250V, 2A
3 412AN1 Fuse Block, 250V, 1 Position
4 804BC1 TVS RC Contactor, 110-230VAC
5 690CA3 Power Relay, DPDT, 6A, 24VDC
6 558AX2 Extraction Lever Relay
7 770BK1 Socket Relay
8 834BW1 Terminal Block, DIN Rail Clamp
9 834BX1 Terminal Block, DIN Rail, 5.2mm Wide
10 684AD10 DIN Rail, 6
3
/
4
" Long
11 672BW1 Power Supply, 85-132VAC, 24VDC, 2.5A
12 786AX6 PCB Locking Standoff
13 834AN5 Terminal Block, Grounding, 5 Position
14 200CCN001 CNA Freight Door Kit
8
4, 5, 6, 7
2, 3
9
1
10
11
12
13
