Vertical Express ICON 32 - Selector Assembly (2105 AG)

Replacement Parts Service Information Section
©Vertical Express 5-12 Printed in USA November 2019

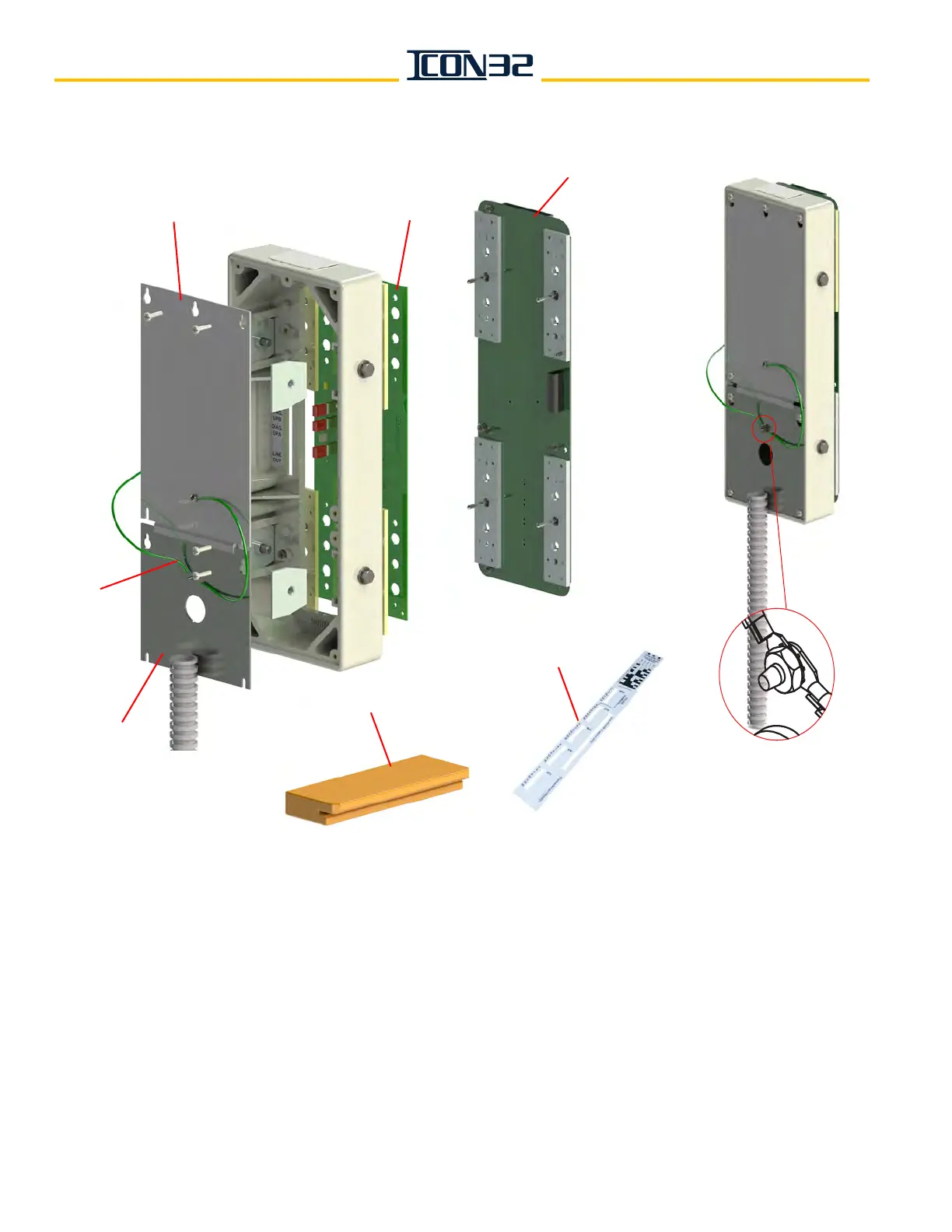

Selector Assembly (2105AG)
ITEM PRINT NO. DESCRIPTION
1 6300ACK1 Tape Selector Main Sensor Board (TSMC), Canada
6300ACK2 Tape Selector Main Sensor Board (TSMC), US
2 141549 Selector Tape Guide (not shown)
3 736CE001 Selector Auxiliary Sensor Assembly, TSAC
4320GX1 Selector Box Cover
5 900AD60 14 Gauge Green Wire Assembly
6 462VC001 Standard Selector Harness, CAN-BUS
462VC002 Extended Selector Harness, CAN-BUS
7 850PE1 Magnet Alignment Tool
8 814CH1 Floor Magnet Template
Tighten thumb
screws just enough
to flatten helical lock
washers on the
thumb screws.
8
7
1
5
6
3
4
