Vertical Express ICON 32 - Tape Selector Bolt Kit for Crosshead Mount (200 BWY001)

Selector Box Mounting and Alignment Installation Section
©Vertical Express 1-32 Printed in USA April 2020

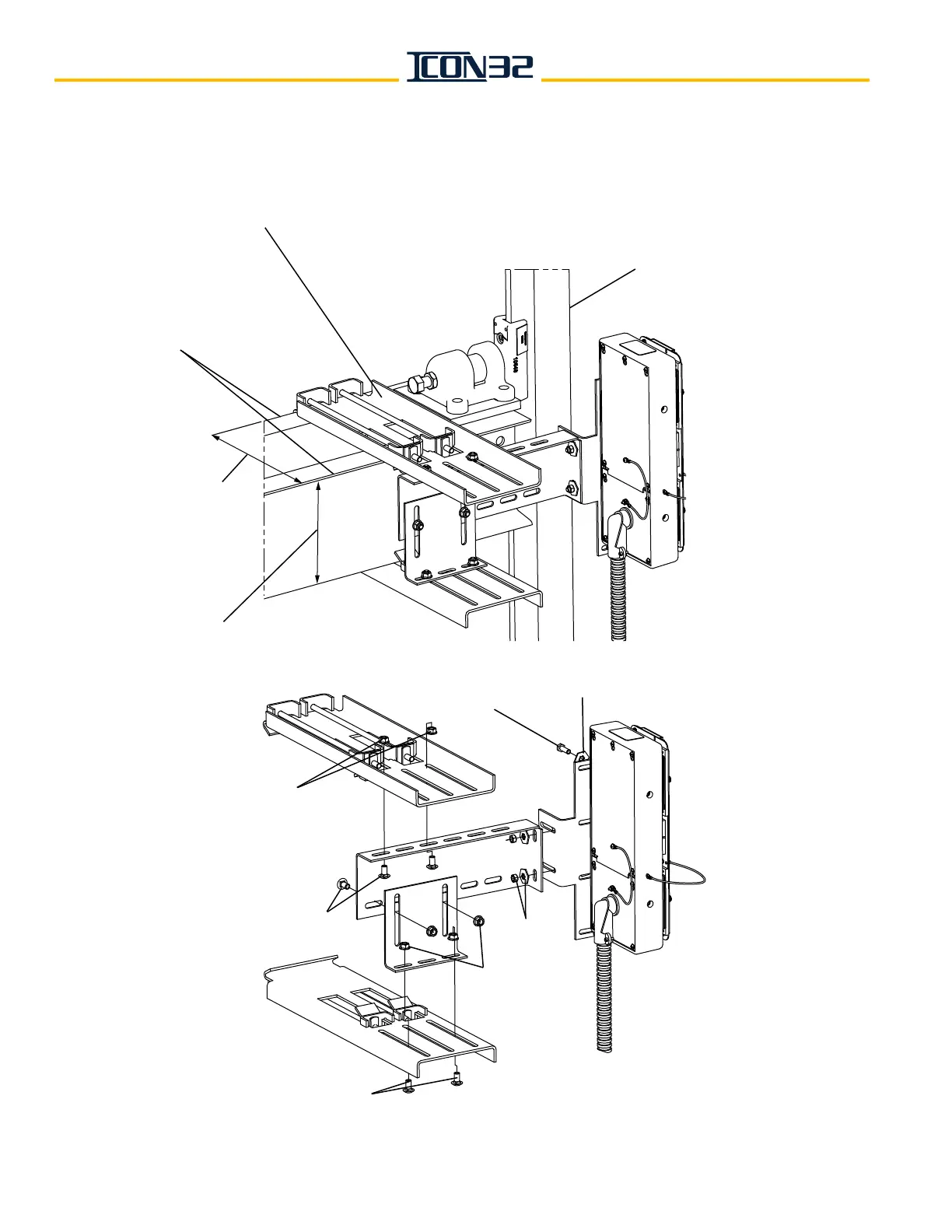

Tape Selector Bolt Kit for Crosshead Mount (200BWY001)
Crosshead Height 6" to 9"
Weld gussets provided for
cases that crosshead mount
does not fit.
Toe to Toe Across
the Crosshead
Range 10" to 12"
Crosshead Mount
• Back of rail to this side of mount, 12
" maximum
• Weld gussets provided for cases that crosshead mount does not fit.
Back of Guide Rail
Crossheads
