Electronic Starter Display
• The electronic starter displays MOTOR STATUS STOPPED when the system is normal.
Reset the starter if it reads otherwise and, before continuing, correct any problem indi-
cated on the display.
• The starter display reverts to MOTOR STATUS STOPPED after 5 minutes of inactivity.
1. Verify that the Starting Amps = the Motor Nameplate Amps x 3 (Mfg. default).
Optional: 2 x FLA = minimum setting, 4.5 x FLA = maximum setting.
2. From the MOTOR STATUS menu, press
. The STATUS menu displays.
3. Press
 twice to display the PARAMETERS menu.
4. From the PARAMETERS menu, press
 once. STARTING AMPS displays.
5. Set the starting amps value equal to three times the nameplate FLA.
a. Press
 once to access the value.
b. Press
 or  to adjust the value of the flashing digit. Press  to move to the
next digit.
c. Press
 to exit the starting amps parameter.
A prompt to ACCEPT or REJECT the change displays. Press
 to accept or  to reject
and correct the parameter.
6. Press
 once and OVERLOAD AMPS displays.
a. If the value is correct, skip to Step 8.
b. If the value is not correct, continue to Step 7.

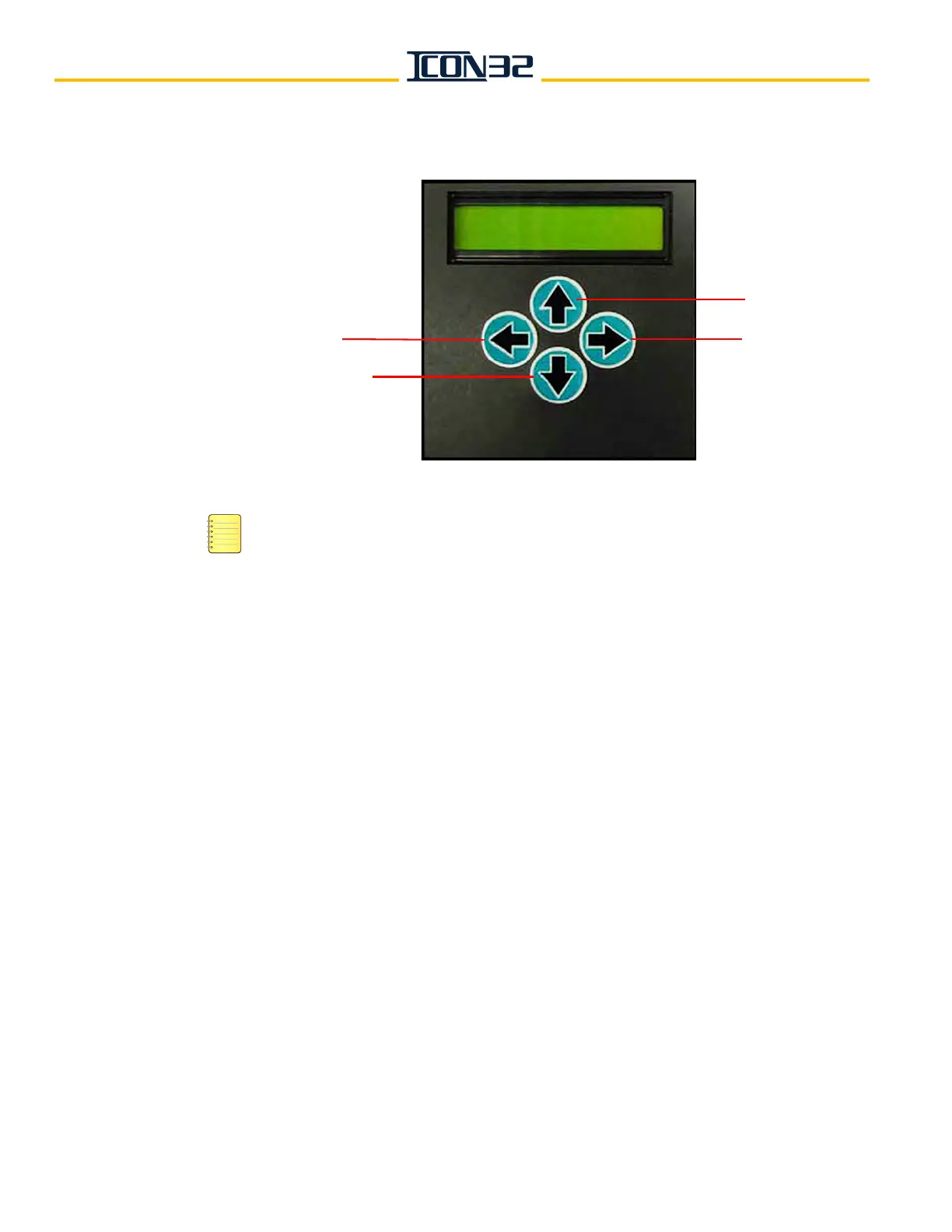

EXIT MENU
OR SAVE
SCROLL DOWN
SCROLL UP
ENTER MENU
MOTOR STATUS
STOPPED
Electronic Starter

