Preliminary Adjustment Adjustment Section
©Vertical Express 2-4 Printed in USA April 2020
Remove Temporary Operation
(continued)

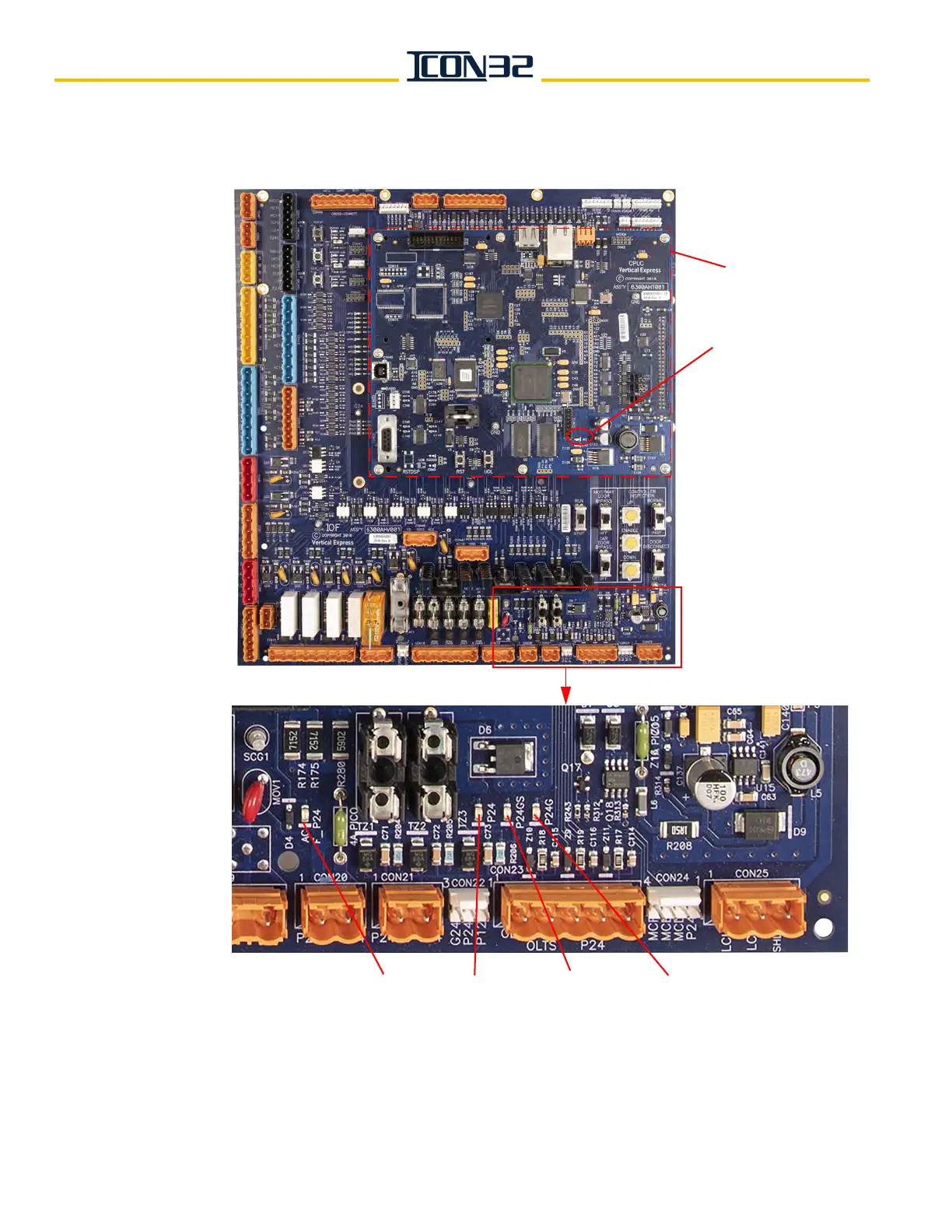

Figure 1 - IOF Card Illuminated LED’s
Watchdog (WD) LED
AC P24
The P24GS fuse is not populated on the
IOF Card. The fuse and PSM are located
on the DIN Rail above the IOF Card.
P24G
CPUC CARD
P24GS
