I/O and Safety String Checkout
(continued)
• SAFE, CDCF, CDCR, CST and all interlock inputs (port 3) must be active with no critical
controller faults in order for SAFSPM, SAFCPU, SAFCPM, and TSRCPU to be active.
• Any optional I/O present in the job software must be in the indicated state for the
Correct I/O Pattern column.
• MCC2, MCC2M = Only seen on jobs with electronic or Wye-Delta (2 contactor) starting.
• MUTS, MCF = Only seen on jobs with electronic starting.
• MCE, MCD = Only seen on jobs with across-the-line (1 contactor) starting.
• PRSW = Only seen on jobs equipped with a low pressure switch.
• OLTS, OLTO = Only seen on jobs equipped with viscosity control thermostats.
• INHA, INHAM = Only seen on jobs with hoistway access.
• Bit Patterns provided are for jobs with electronic starting and hoistway access.
• I/O locations marked with an X are either unassigned or have a signal assigned whose
status is unimportant at this point. If required, refer to the job’s Car I/O Assignment
Sheet.
Port #
Correct I/O
Pattern
I/O Number
1 2 3 4 5 6 7 8
1 01000101 INCN
INCNM INCNU INCND CDBM CDBM2 HDBM HDBM2
2 00000000 BYCST BYHA BYHAR BYHAB BYHAT BYCDB BYHDB BYDZ
3 11111111
IB IT IF IR CB CT CF CR
4 11111111
SAFSPM SAFCPU SAFCPM SAFE TSRCPU CDCF CDCR CST
5 010000-- MCC1
MCC2 UFS USS DFS DSS --- ---
6 010000-- MCC1M
MCC2M UFSM USSM DFSM DSSM --- ---
7 0001-101 MUTS MCF MCE
MCD --- PRSW OLTS OLTO
8 100-0100
BLOM BLO CHKBLO --- CHKTSR CHKDS TSRCPM NTSNPM
10 00000001 FSM FSX FSE FST FSSR STBC EPW
EPNP
17 00000101 INCTM INCTU INCTD INCTU2 INCTD2
INCT INHA INHAM

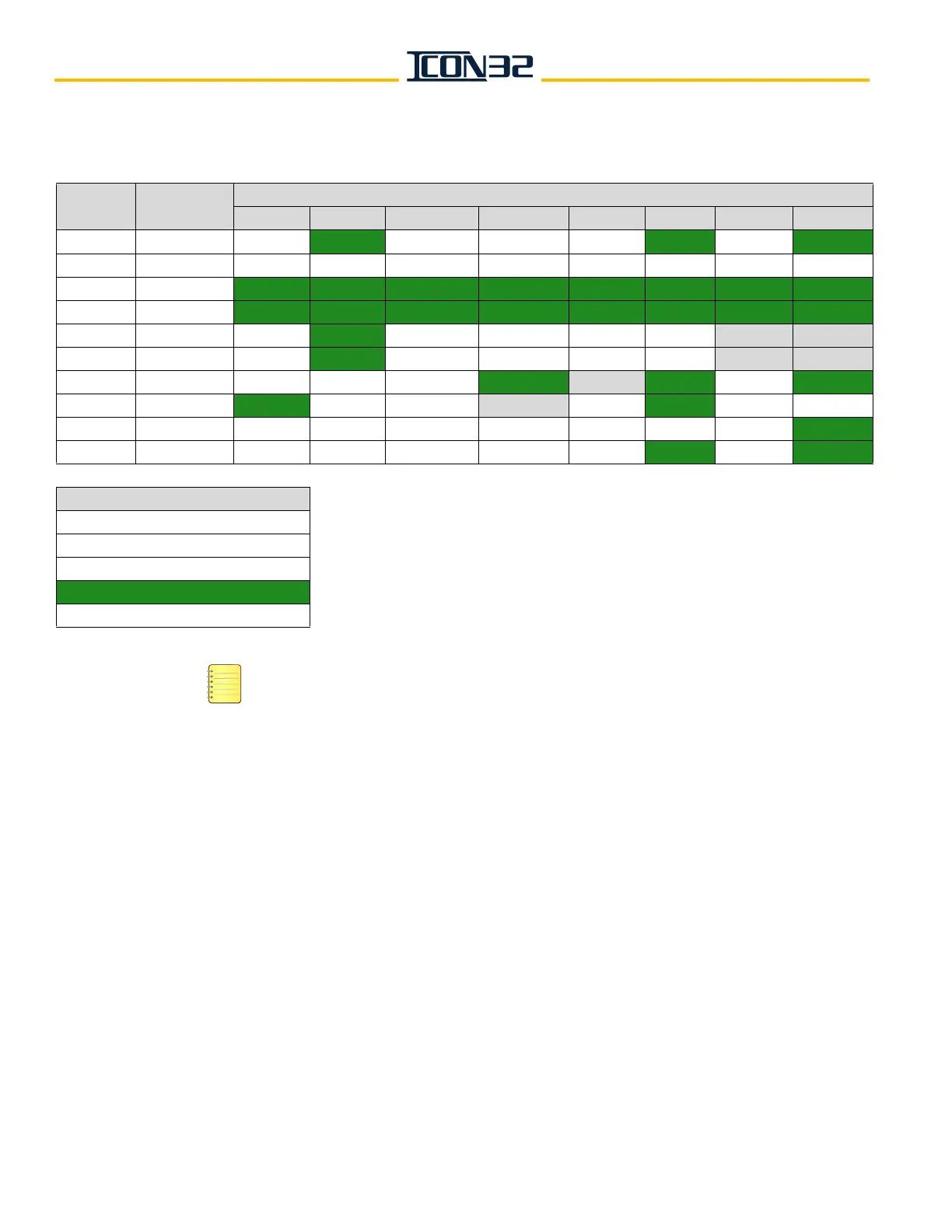

LEGEND Table 2 - I/O Port # and I/O Correct Pattern
‘---’ = Irrelevant Ready to Run - Car Top Inspection
BOLD = I/O Always Present
I/O State = INACTIVE
I/O State = ACTIVE
ITALICIZED = Optional I/O
